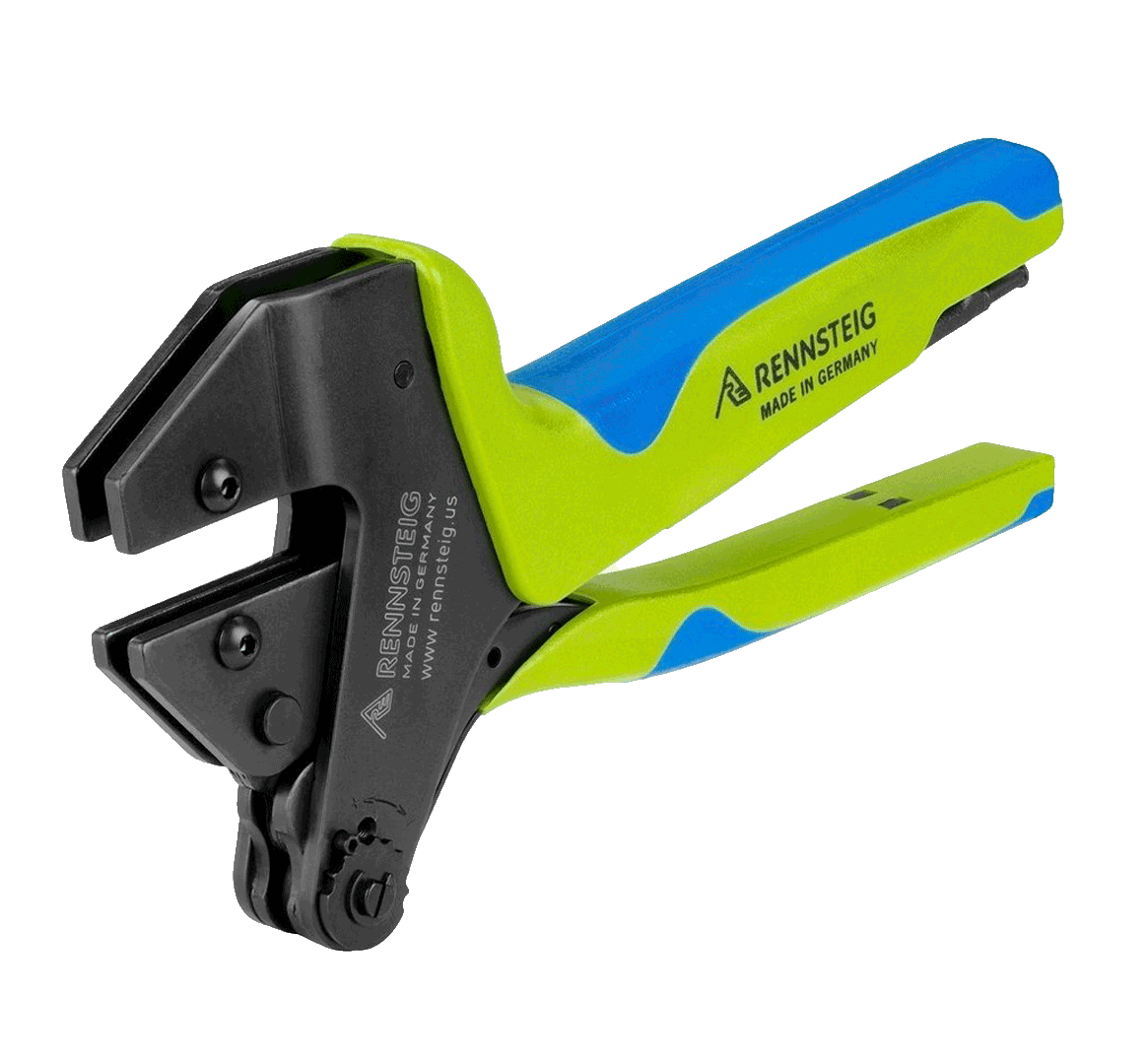

Rennsteig PEW12 Crimp Frame with Superseal 1.0 Die for /32 Wire

SKU:
TOOREN/32
  • Rennsteig PEW12 Crimp Frame with Superseal 1.0 Die for /32 Wire
  • Rennsteig PEW12 Crimp Frame with Superseal 1.0 Die for /32 Wire
Per Unit
$915.00 ($1,052.25) Excl. GST (Incl. GST)
Unit of Measure:
each
Purchase Increment:
1
Minimum Purchase:
1 unit
We ship worldwide at competitive pricing.
Shipping calculated at checkout.

Description

At last there is a specific hand crimping tool for crimping the terminals used on a lot of common engine management systems and dashes with M22759/32 wire.

  • Supports all three terminal sizes - small, medium and large
  • Crimps 24AWG to 16AWG wire – refer to the table below
  • Exclusive design – developed by Racespec in the US. Not available through the general channel
  • Designed for use with M22759/32 wire only (the type of wire sold for years by MSEL)
    • Not recommended for use on /16 or other wire types
  • Fully tested as can be seen from the test results below. No more double crimping.

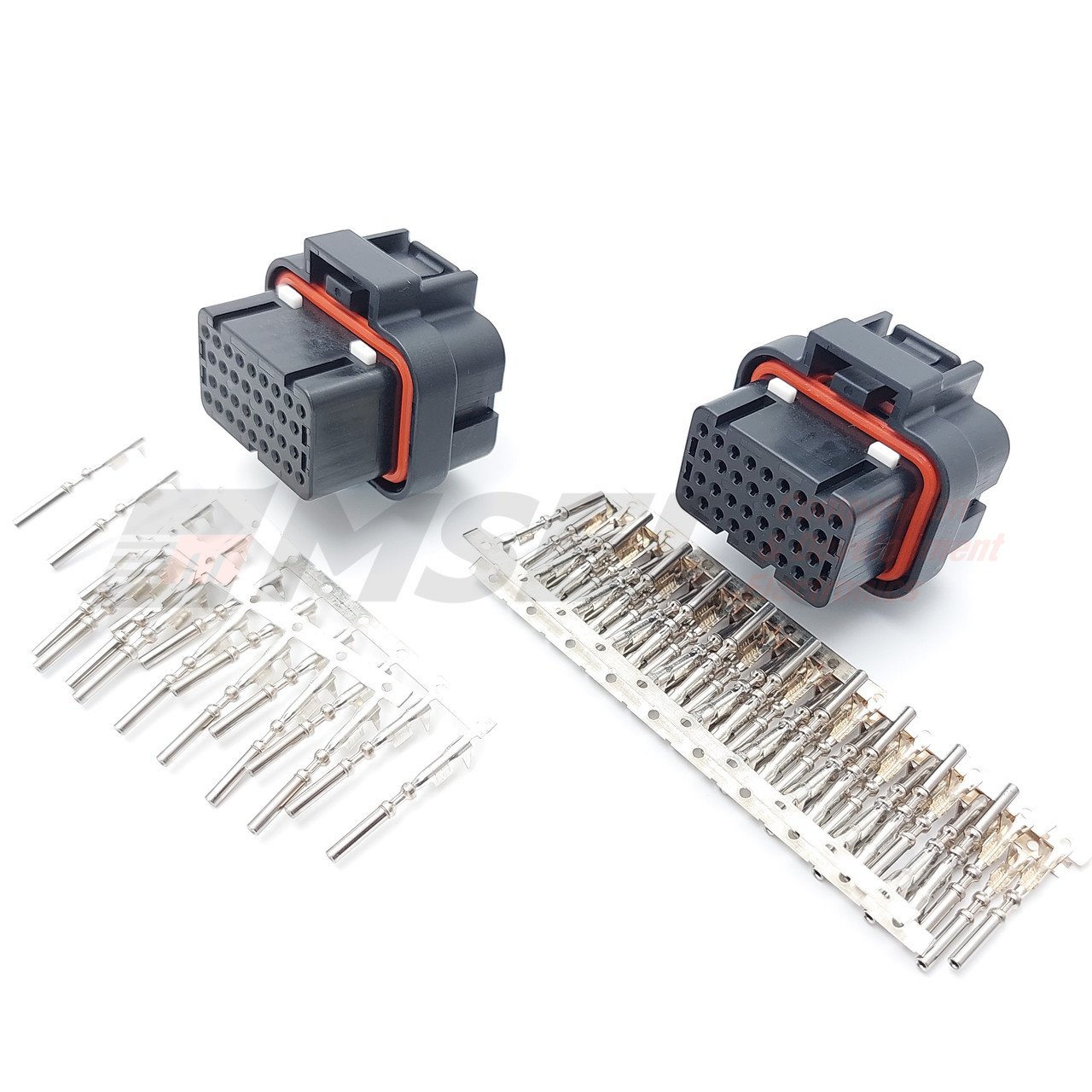

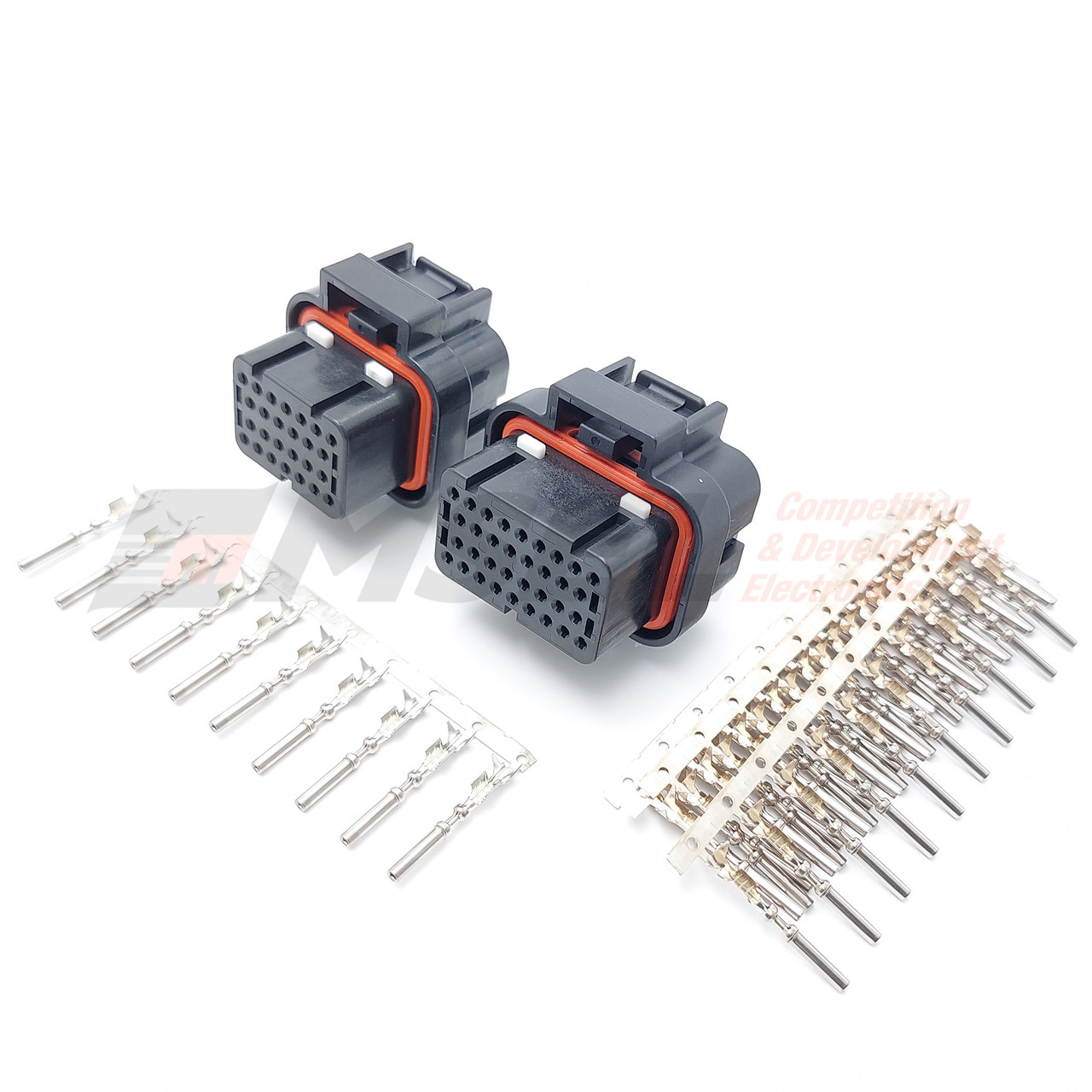

For connectors used on the following engine management systems (and others)

  • MoTeC M400, M600, M800, PDM15, PDM30, E888, C125, C127, C1212
  • Link G4 engine management systems
  • Haltech
  • Syvecs S6 and S7 family
  • Emtron
  • other brands including Holley

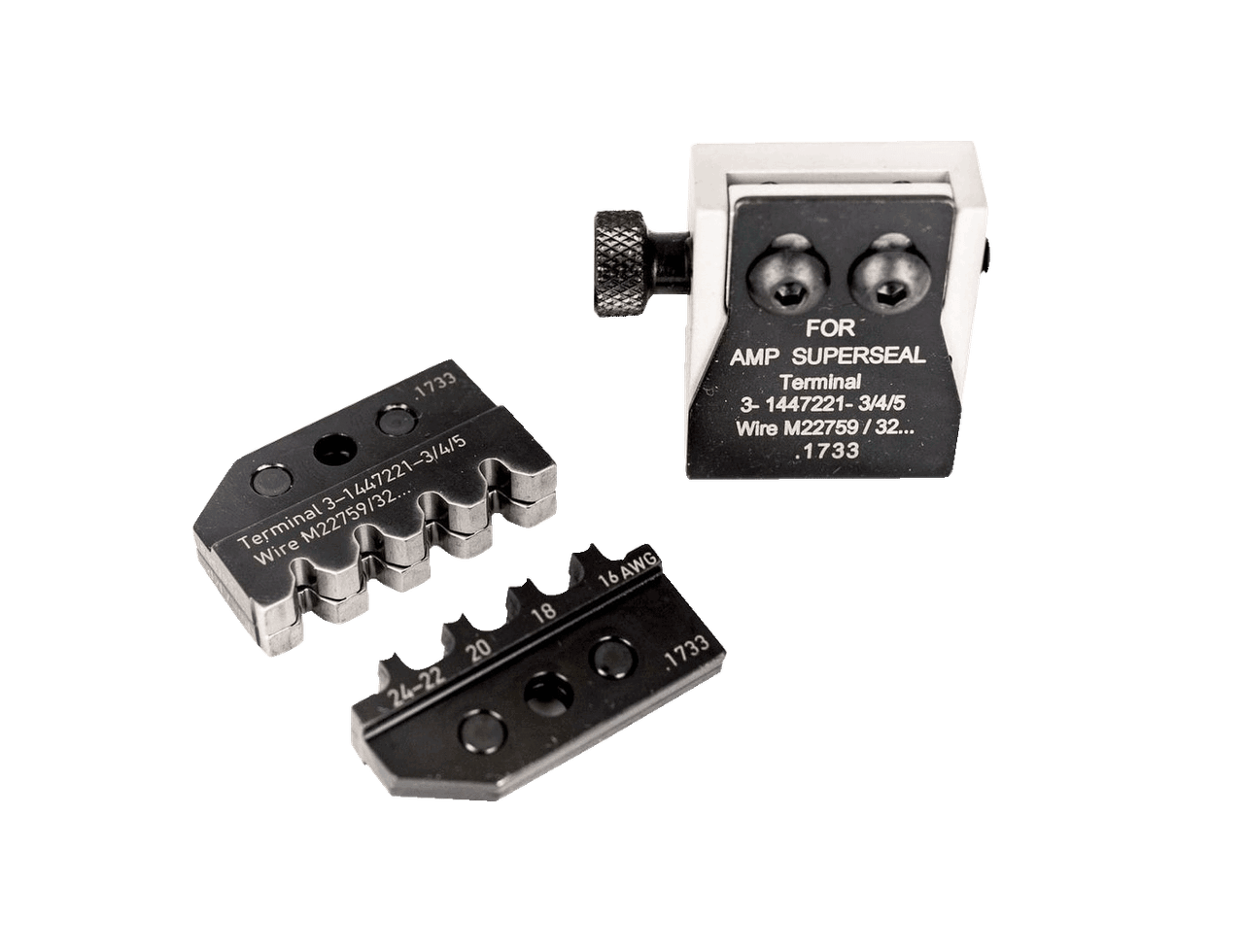

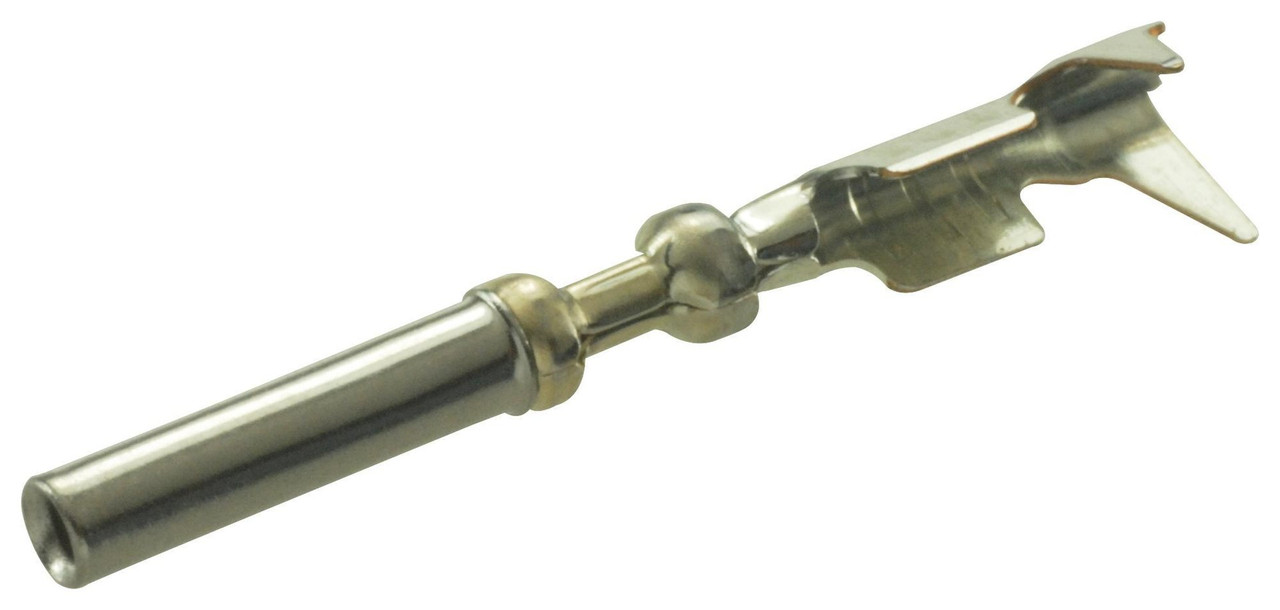

Race Specâ„¢ Exclusive Die Set for AMP Superseal1.0 Terminal

CRIMP TENSILE STRENGTH

NOTE

WIRE SIZE

REQUIRED TERMINAL

DIE SLOT

REQUIRED

TESTED TO

M22759/32-24

3-1447221-5

SMALL

24-22AWG

~ 49.0N

56.5N

M22759/32-22

3-1447221-5

SMALL

24-22AWG

~ 49.0N

103N

A

M22759/32-22

3-1447221-4

MEDIUM

20AWG

~ 88.2N

91N

M22759/32-20

3-1447221-4

MEDIUM

20AWG

~ 88.2N

142N

B

M22759/32-18

3-1447221-4

MEDIUM

18AWG

~ 127.4N

187.5N

M 22759/32-18

3-1447221-3

LARGE

18AWG

~ 127.4N

238.5N

M22759/32-16

3-1447221-3

LARGE

16AWG

~ 176.4N

195N

NOTE A

22AWG should be used with the 3-1447221-5 'Small' terminal whenever possible though asnoted by the test data it may be used with the 3-1447221-4 'Medium' terminal with passable results.

NOTE B

18AWG should be used with the 3-1447221-3 'Large' terminal whenever possible though as noted by the test data it may be used with the 3-1447211-4 'Medium' terminal with passable results. This combination in particular has the potential to deform the contact and is strongly advised against.

Price includes both crimp frame and die.

While Rennsteig has a shelf part for the AMP Superseal 1.0 terminal available, it is only suited for 16-20AWG and the insulation support nest was originally designed to be used with automotive grade wire's thicker jacket resulting in a less than ideal finished termination.
