Rotary Position

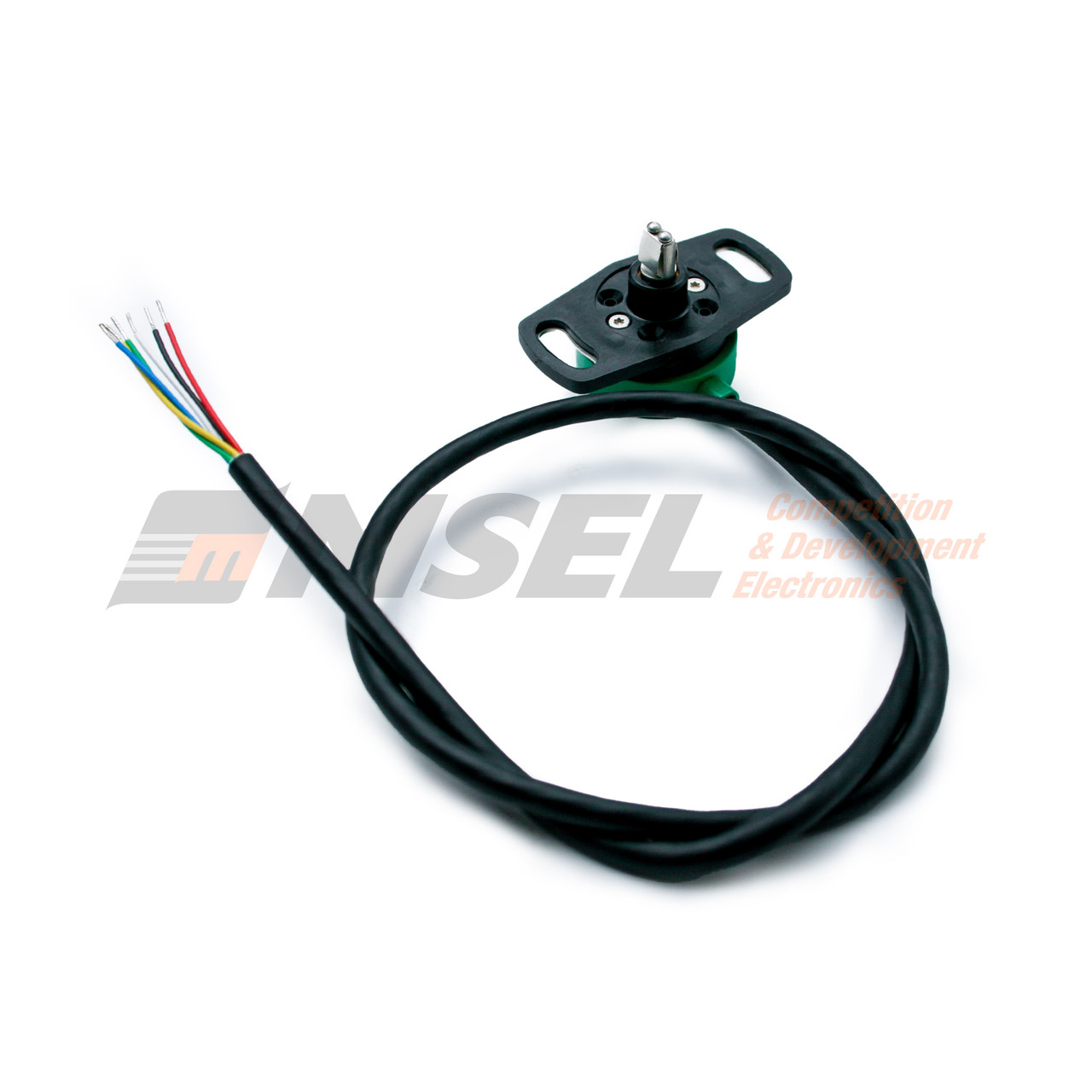

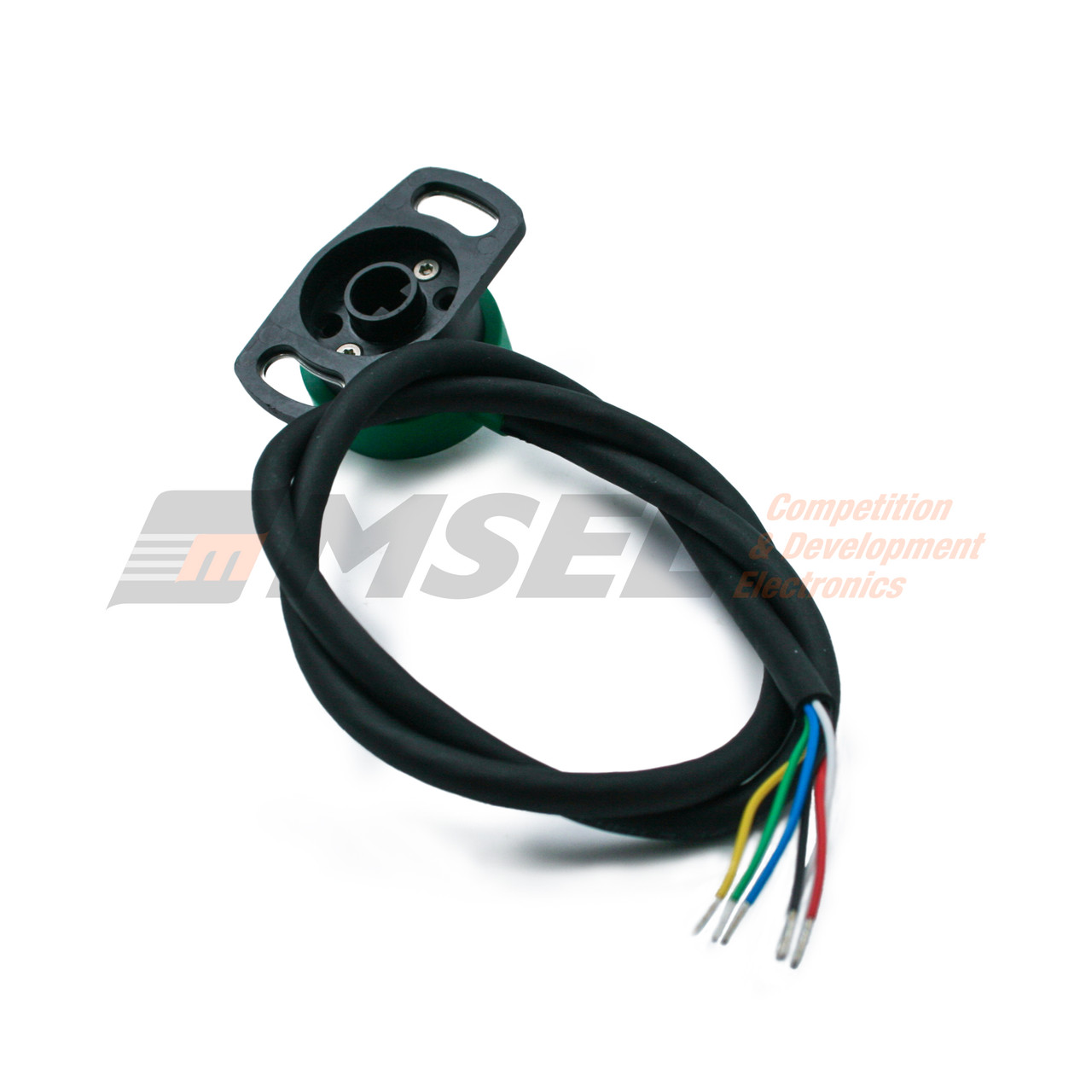

Features 105 degree sensing range contactless measurement so sensor to wear out analogue output Ideal for measuring shaft rotation on throttle bodies and pedal position.    Mating Connector (not included) - CONDEL3006K     Please...

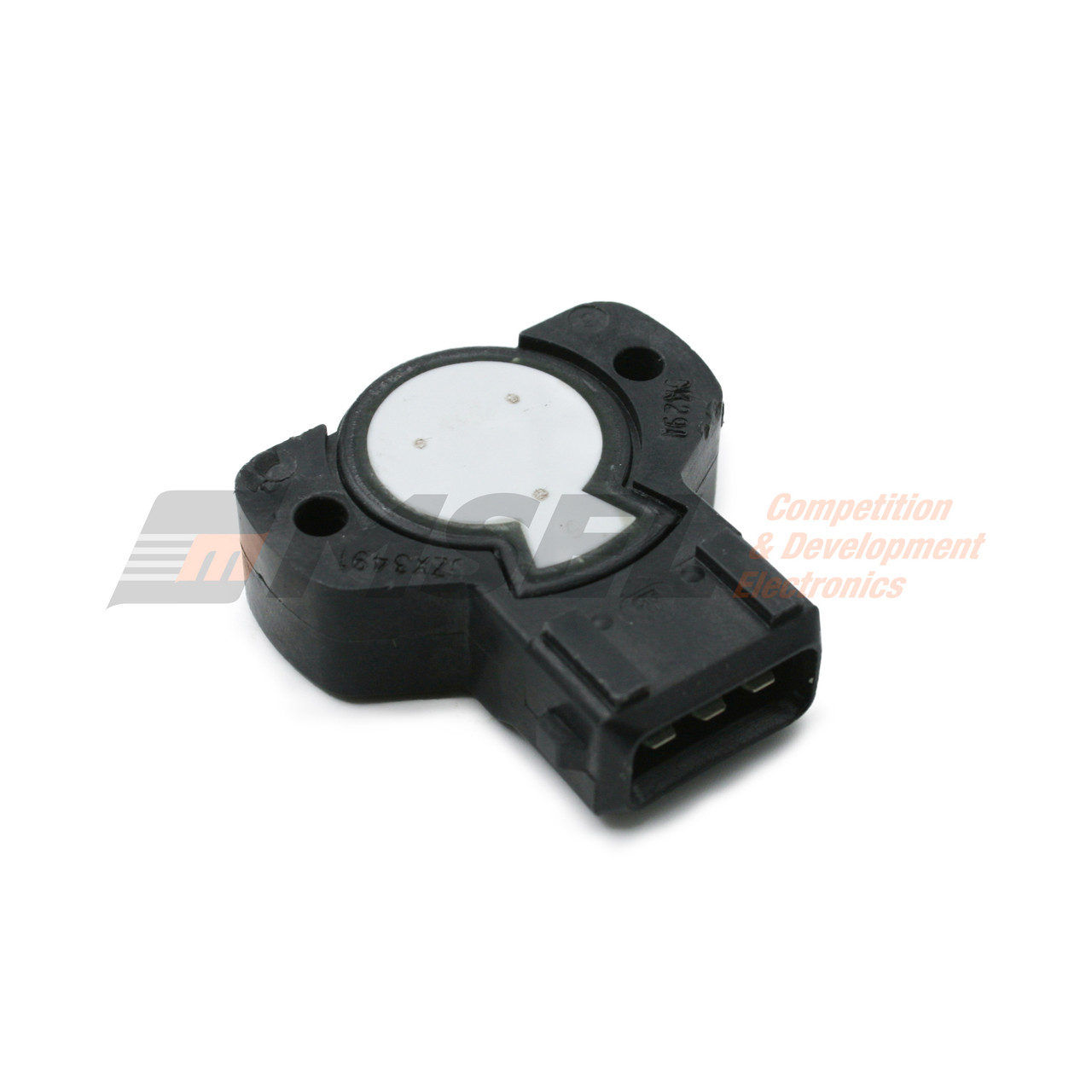

Right hand Throttle Position Sensor with D-drive (grey) and integrated 3-Way Junior Timer Connector If looking at the Shaft on the throttle body, rotation would be in a clockwise direction Pinout Pin 1: Ground 0VPin 2: Output SignalPin 3: 5V Supply...

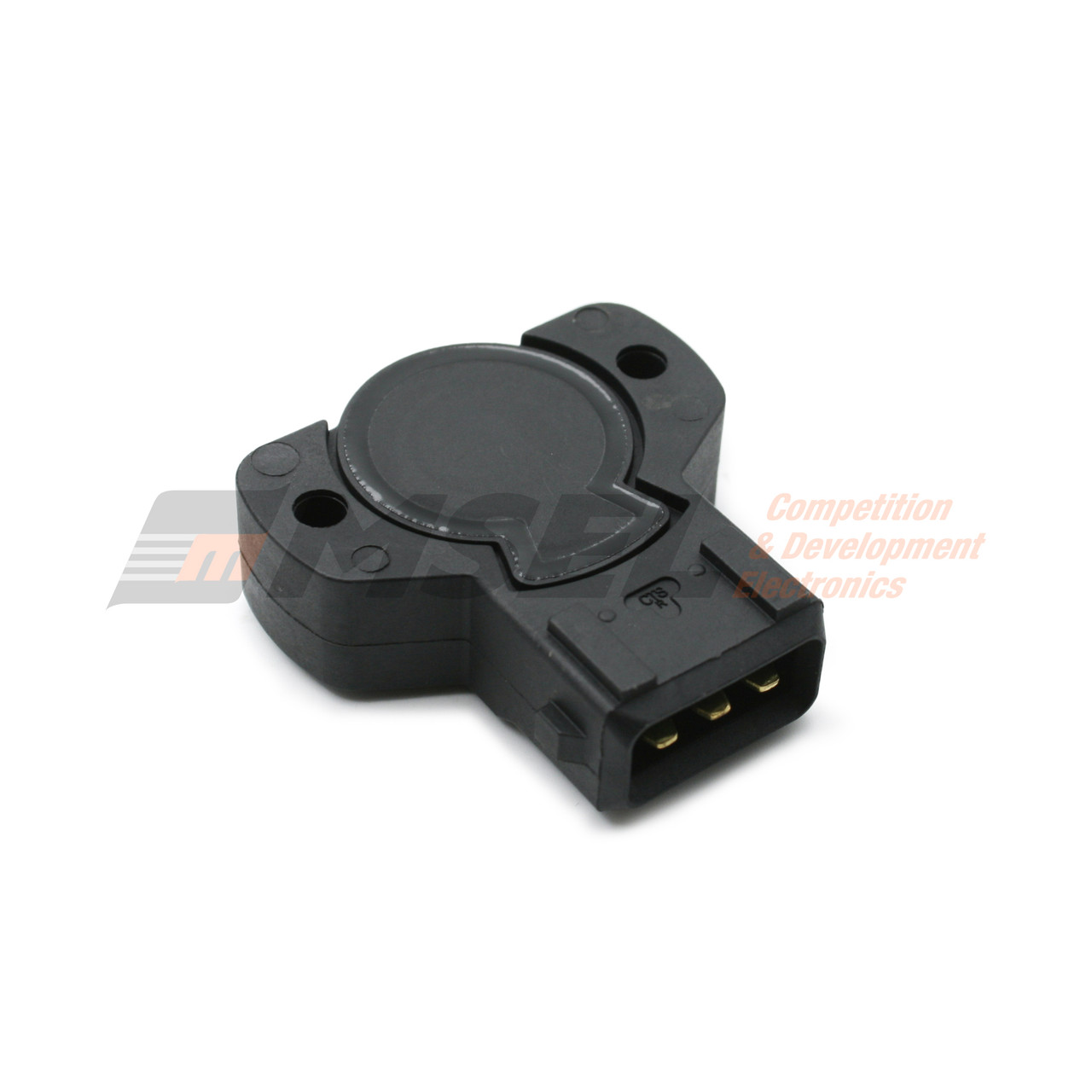

Left hand Throttle Position Sensor with D-drive (black) and integrated 3-Way Junior Timer Connector   If looking at the Shaft on the throttle body, rotation would be in an anti-clockwise direction. Pinout Pin 1: 5V SupplyPin 2: Output SignalPin 3:...

Rotary Position Sensor Kit (Contactless) suitable for suspension position measurement.

Arm, Metal (For Rotary Position Sensor)

Rotary Position Sensor (Contactless)

  Description The sensor is operated by rotating a magnetic actuator close to the face of the sensor. Output voltage varies with angular position of the magnet relative to the sensor. Optimal performance is achieved with Cherry’s AS500106...
