Description

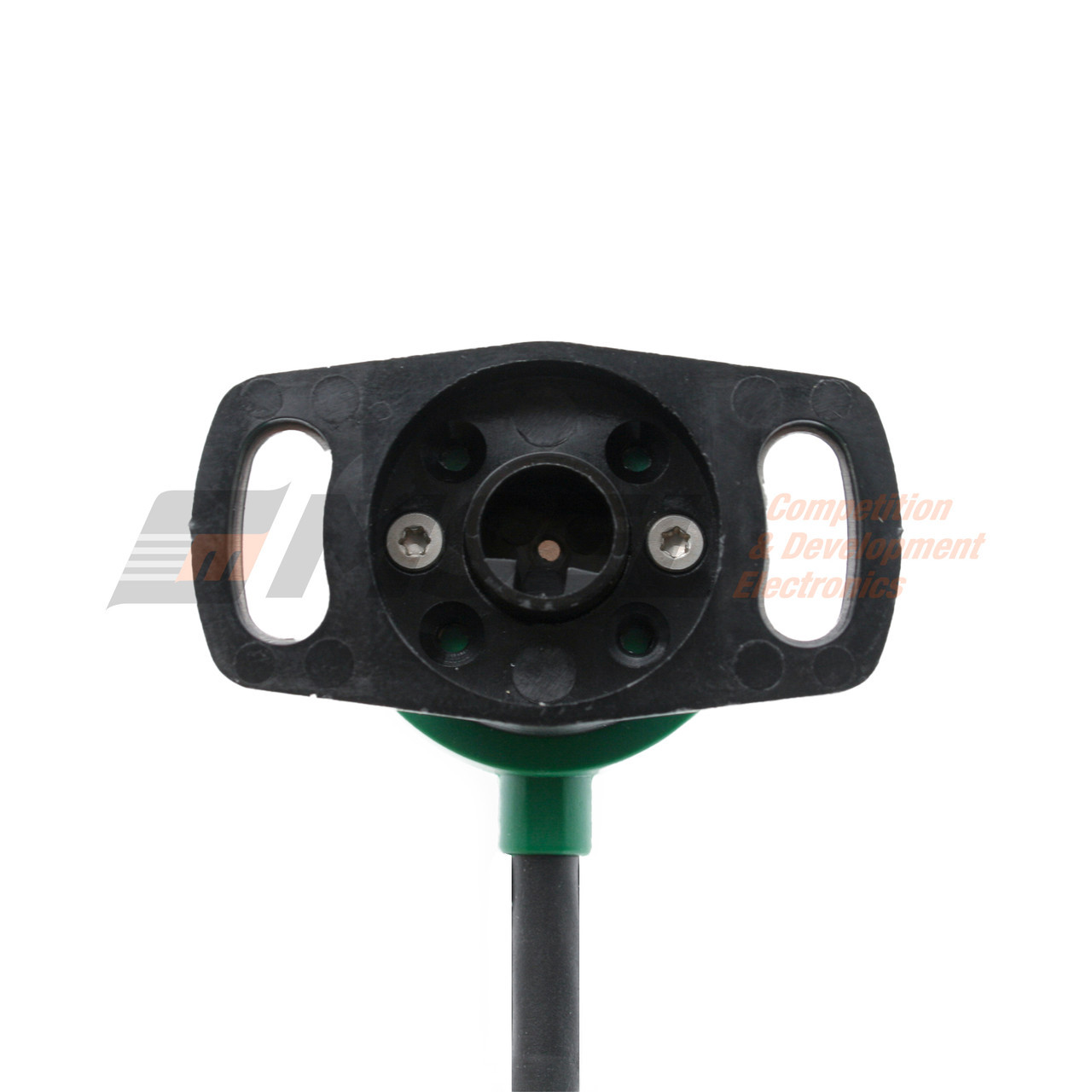

Contactless 32mm Clockwise / Counter Clockwise +-120 Degree 8mm Female D-Drive Rotary Sensor
Can be used in either direction as single TPS Sensor Connector Kit. Ideal for measuring throttle position on drive by wire throttle bodies.
Features
Mechanical
| Typical Life Cycle | >50 million movements (restriction by mechanics) |
| Torque | < 0.1 Ncm |
| Measuring Range | 360º redundant, signal 1 CW, signal 2 CCW |
| Housing | High Grade Temperature Resistant Plastic |
| D-Shaft | Nylon 66 |
| Mounting | Customer to ensure correct suitability and fitment of mounting bolts |
Environmental
| Operating Temperature | -40°C to +125°C (Short Term 150°C) |
| Vibration | 5...2000 Hz; Amax = 0.75 mm; Amax = 20g to IEC 60068-2-6 |
| IP Rating | IP68 (minimum) |
Electrical
| Supply Voltage | 5V +/- 0.5V |
| Output Signal | Ratiometric 5%...95% of supply (+/-25mv of specified electrical output range for both start & end voltage) |
| Independent Linearity | +/- 0.5% of each signal range |
| Isolation Resistance | 200 MΩ (500 VDC, 1 bar, 2s) |
| Cable Type | Raychem Spec 55, 24 AWG; Sleeving - Raychem DR25 |

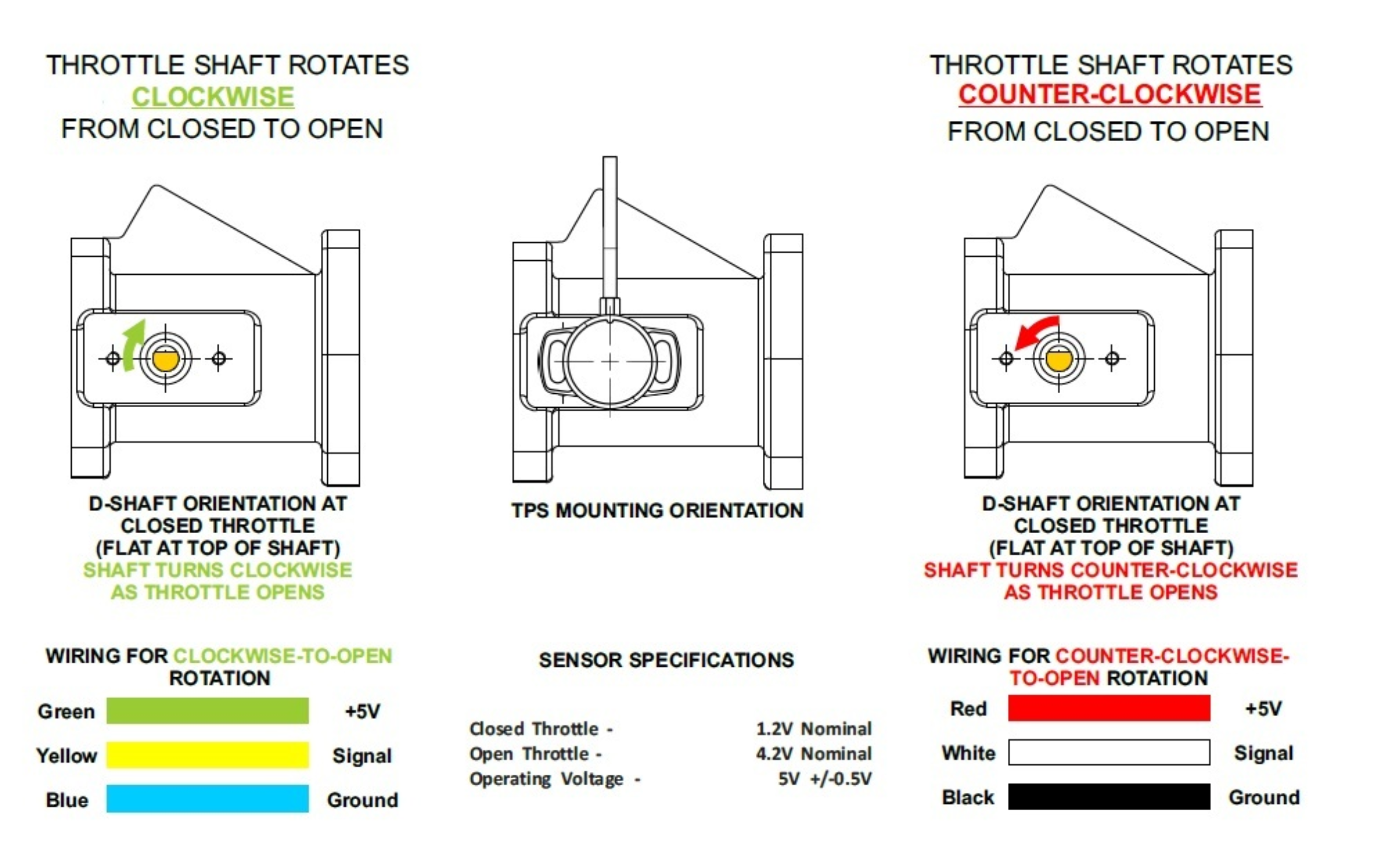

Wiring
Wiring for Clockwise Rotation from Closed to Open:
| Green | +5V |
| Yellow | Signal |
| Blue | Ground |
Wiring for Counter-Clockwise Rotation from Closed to Open:
| Red | +5V |
| White | Signal |
| Black | Ground |

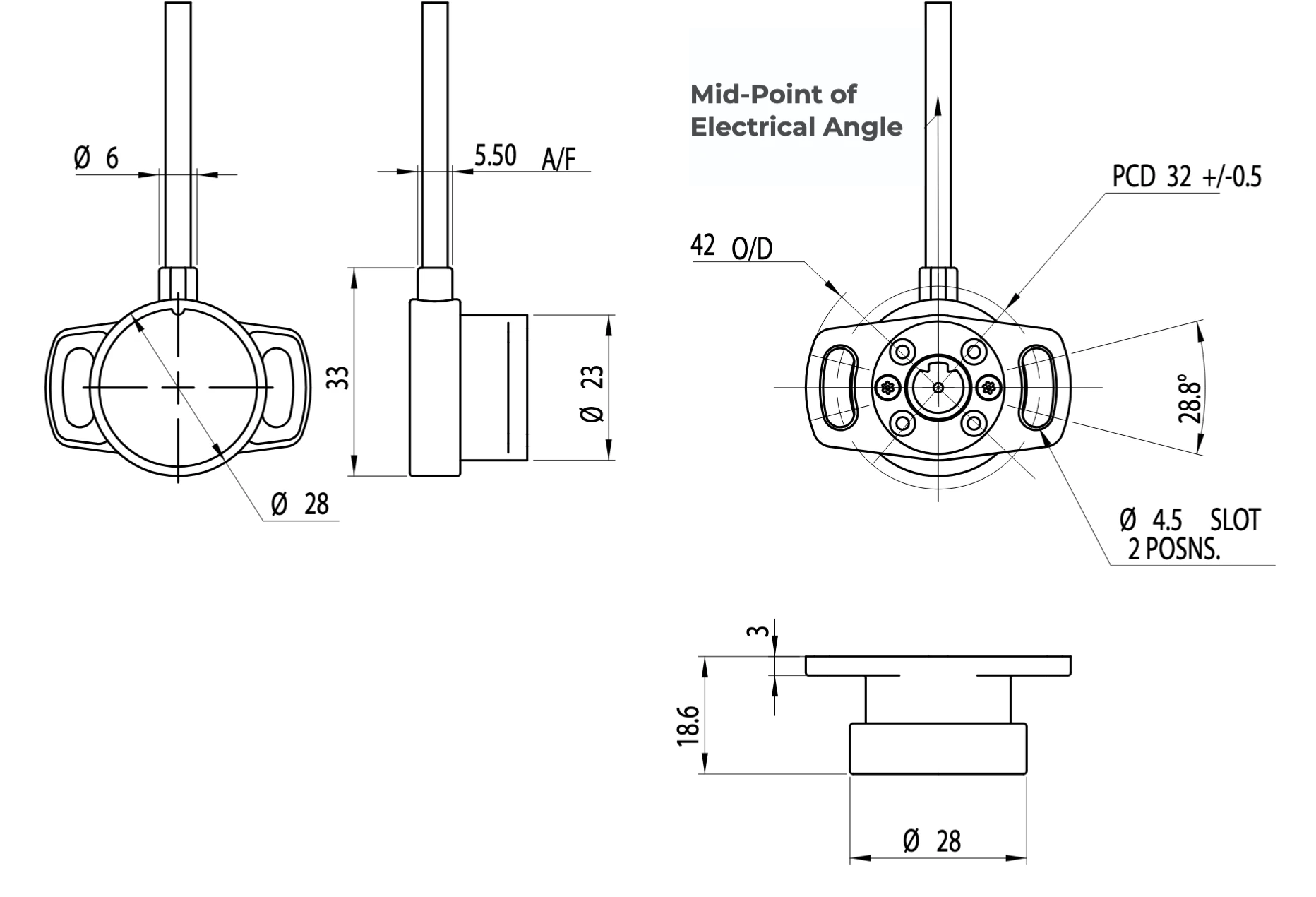

Sensor Dimensions

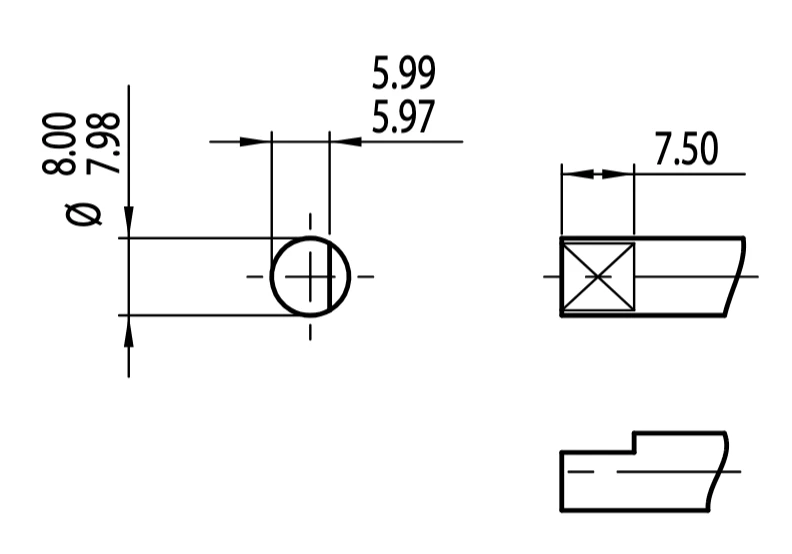

Mating 8mm D-Shaft detail
