Power Distribution Modules
.
All Pricing in New Zealand Dollars20M Sylvia Park Road, Mount Wellington, Auckland, 1060+64 9 525 2991
.
Connector kit for the Life Racing PDUX2 and PDUX2B power distribution units. Includes a 92-way PDU connector, a Radlok connector, terminals, and wire seals. Covers wire gauges from 0.2mm up to 13AWG across six terminal sizes.
CONLRPDUX2
Our Price (Incl. GST)
$325.00 ($373.75)
Connector kit for the Life Racing PDUX3 and PDUX3B, 200A power distribution units. Includes 92-way and 21-way PDU connectors, a Radlok connector, terminals, and wire seals. Covers wire gauges from 0.2mm up to 13AWG across six terminal sizes.
CONLRPDUX3
Our Price (Incl. GST)
$425.00 ($488.75)
Cartek 8-channel power distribution module with CAN-bus connectivity and diagnostics. Includes preset functions for fuel pumps, radiator fans, wipers, and headlights. Offers 2x 40A, 4x 20A, and 2x 15A outputs, each individually CAN-controlled.
CARPDM8C
Our Price (Incl. GST)
$999.00 ($1,148.85)
Our Price (Incl. GST)
$999.00 ($1,148.85)
CARPDM8C

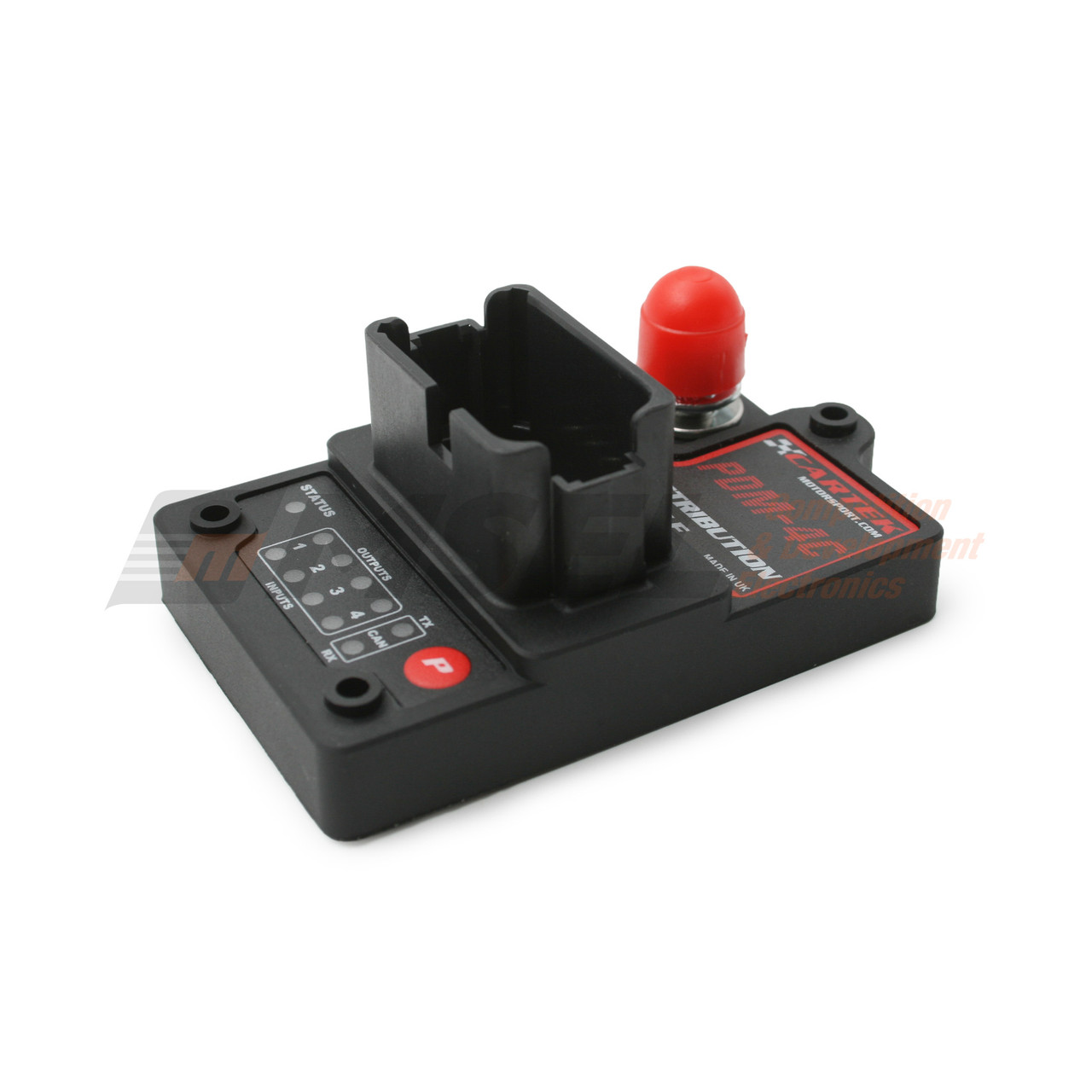

Cartek 4-channel power distribution module with CAN-bus connectivity and diagnostics. Fully potted against water, dirt, shock, and vibration; no laptop needed to configure. Each 20A output is configurable in 5A steps, with a soft-start option.
CARPDM4C
Our Price (Incl. GST)
$599.00 ($688.85)

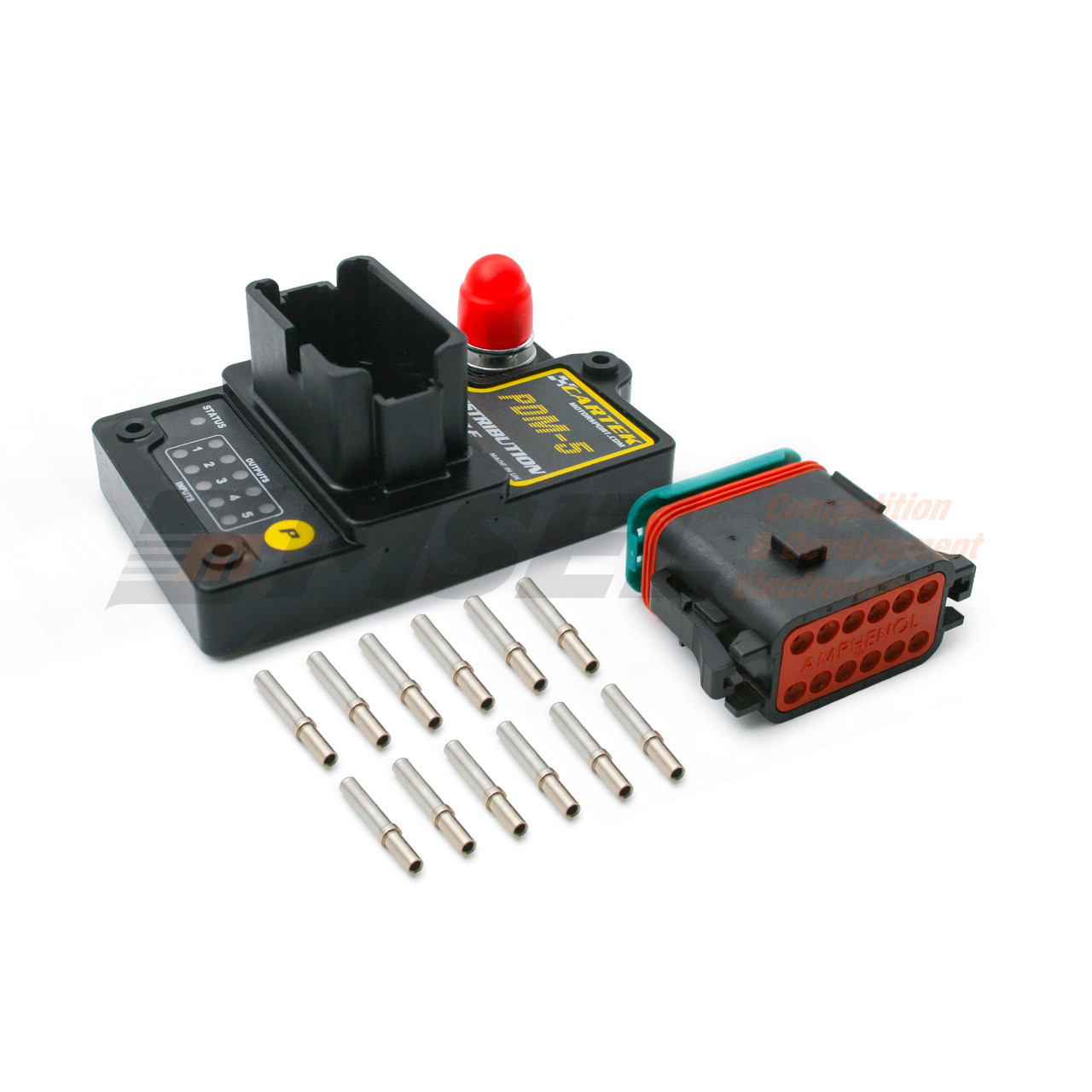

Cartek 5-channel power distribution module, can double as a headlight controller. Fully potted against water, dirt, shock, and vibration; no laptop needed to configure. Each 20A output is configurable in 5A steps, with a soft-start option.
CARPDM5
Our Price (Incl. GST)
$569.00 ($654.35)
Our Price (Incl. GST)
$569.00 ($654.35)
CARPDM5

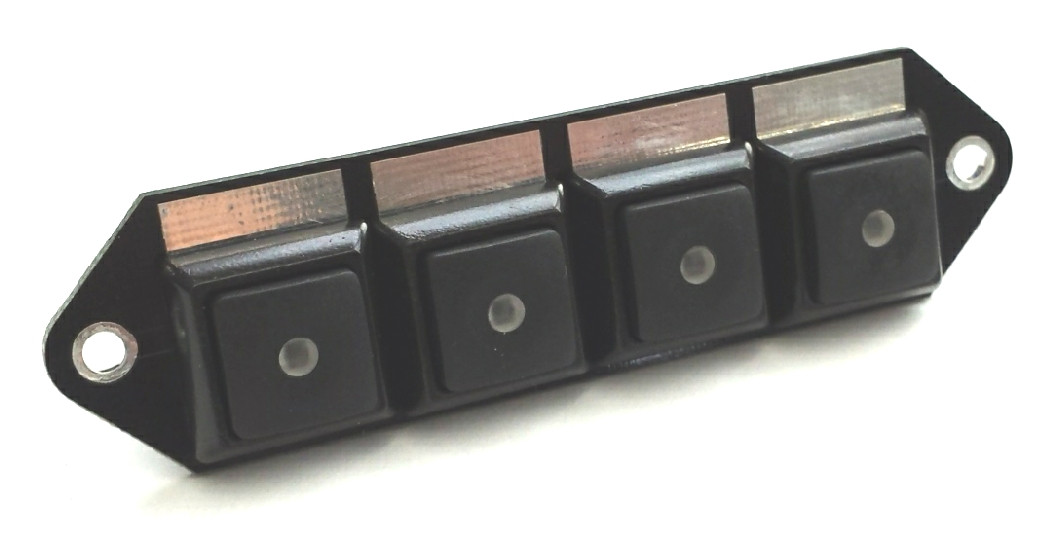

Cartek 4-button switch panel, exclusively for the now-discontinued Cartek PDM-4. Features 4 black latching switches with LED status indication and overwrite labels. Cannot be used standalone; only works when paired with the Cartek PDM-4.
CARSP4
Our Price (Incl. GST)
$159.00 ($182.85)
MoTeC PDM32 power distribution module, new version now rated to IP67. Replaces conventional relays, fuses, and circuit breakers, reducing weight and simplifying wiring. Offers 8x 20A and 24x 8A outputs, with 23 switch inputs and CAN.
MOT14107
Our Price (Incl. GST)
$7,084.51 ($8,147.19)

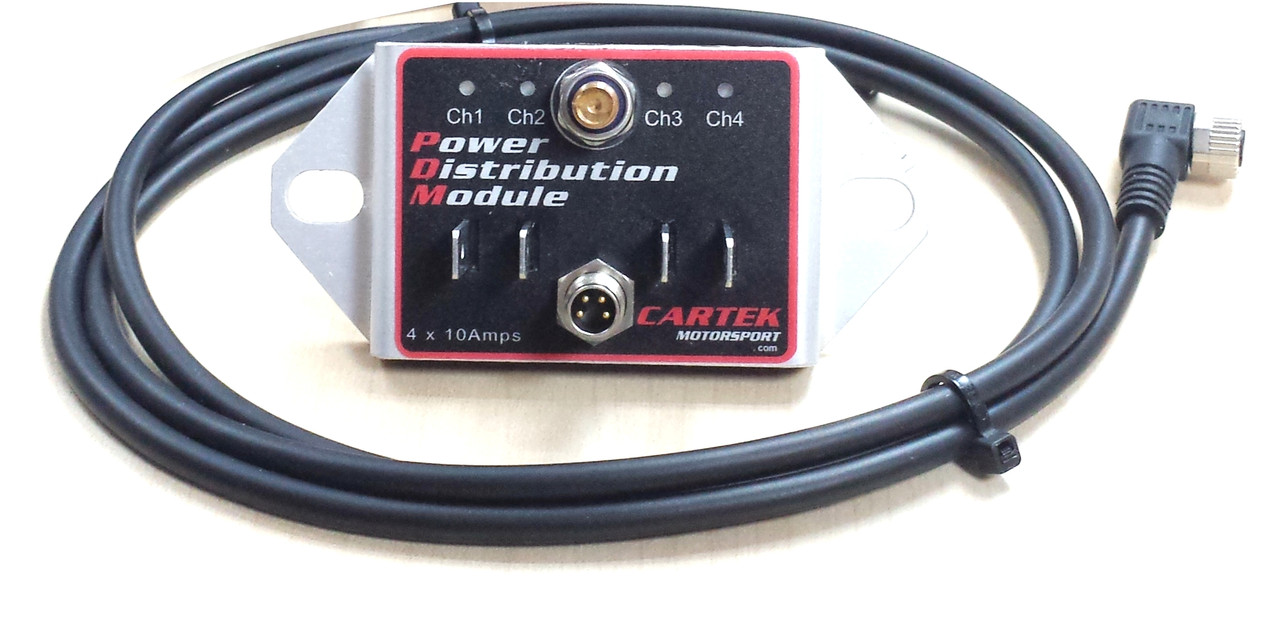

Cartek 4-channel PDM, discontinued January 2026; see PDM4C or PDM5 instead. Designed for race cars and motorcycles with minimal electrical circuits needing reliable protection. Offered 4x 10A outputs with automatic shutdown on short-circuit or overcurrent detection.
CARPDM4
MoTeC PDM30 power distribution module, replacing relays, fuses, and circuit breakers. Simplifies wiring, reduces weight, and increases reliability over conventional switching. Offers 8x 20A and 22x 8A outputs, with 16 switch inputs and CAN.
MOT14103
Our Price (Incl. GST)
$4,448.00 ($5,115.20)
MoTeC PDM16 power distribution module, no longer in production. The PDM15 is the closest match by output count for most applications. For autosport or mil-spec connectors instead, the PDM32 is the better fit.
MOT14102
Life Racing PDUx3B power distribution unit, 34 outputs, 200A max continuous. Slave-links directly to a Life Racing ECU for ultra-low latency input/output control. Includes 3x CAN 2.0B, 1x LIN, and a two-port Ethernet switch; weighs 850g.
LRPDUX3
Our Price (Incl. GST)
$5,450.00 ($6,267.50)
MoTeC PDM15 power distribution module, replacing relays, fuses, and circuit breakers. Simplifies wiring, reduces weight, and increases reliability over conventional switching. Offers 8x 20A and 7x 8A outputs, with 16 switch inputs and CAN.
MOT14104
Our Price (Incl. GST)
$2,800.58 ($3,220.67)
