Rennsteig small crimp frame, equivalent to the AFM8, sold without a turret. Takes blue AFM8 locators from various manufacturers, including DMC's own range. Bare frame only; no locators included, though a go/no-go gauge is.
TOORENAFM8
Our Price (Incl. GST)
$859.00 ($987.85)
Rennsteig crimp frame and turret kit, equivalent to the DMC AF8 frame. Covers Deutsch DTM, DT, and DTP solid contacts, sizes 20, 16, and 12. Capacity spans 26AWG to 12AWG wire, with a 5.5mm max contact diameter.
TOORENAF8DT
Our Price (Incl. GST)
$1,265.00 ($1,454.75)
Our Price (Incl. GST)
$1,265.00 ($1,454.75)
TOORENAF8DT
86-7 locator/positioner for the MH860 frame, Autosport size 20 contacts. Supports both pins and sockets, for 20-24AWG wire on Deutsch and Souriau connectors. Only fits the green MH860 frame, not the blue AFM8; milspec M22520/7-08.
TOOLOC86-7
Our Price (Incl. GST)
$199.00 ($228.85)
Our Price (Incl. GST)
$199.00 ($228.85)
TOOLOC86-7
86-6 locator/positioner for the MH860 frame, Autosport size 22 pins only. Supports 22-24AWG wire on Deutsch and Souriau connectors, pins only, milspec M22520/7-07. Only fits the green MH860 frame, not the blue AFM8; sockets use locator 86-4 instead.
TOOLOC86-6
Our Price (Incl. GST)
$199.00 ($228.85)
Our Price (Incl. GST)
$199.00 ($228.85)
TOOLOC86-6
86-4 locator/positioner for the MH860 frame, Autosport size 22 sockets only. Supports 22-24AWG wire on Deutsch and Souriau connectors, sockets only, milspec M22520/7-05. Only fits the green MH860 frame, not the blue AFM8; pins use locator 86-6 instead.
TOOLOC86-4
Our Price (Incl. GST)
$199.00 ($228.85)
Our Price (Incl. GST)
$199.00 ($228.85)
TOOLOC86-4
Universal locator for the DMC MH860 crimp frame, adjustable depth design. Accepts both pins and sockets, for wire between 16 and 24AWG. Only fits the green MH860 frame, not the blue AFM8; use a dedicated locator for production.
TOOLOC86-37
Our Price (Incl. GST)
$355.90 ($409.28)
86-1S locator/positioner for the MH860 frame, Deutsch DTM solid contacts. Supports both pins and sockets, for 20-24AWG wire, milspec number M22520/7-02. Only fits the green MH860 frame, not the blue AFM8; also suits some Amphenol contacts.
TOOLOC86-1S
Our Price (Incl. GST)
$199.00 ($228.85)
Our Price (Incl. GST)
$199.00 ($228.85)
TOOLOC86-1S
Genuine DMC G145 go/no-go gauge, for verifying crimps on the MH860 frame. Set the dial to your tool, then check the green end passes freely. Qualified to AS22520/3; the red end should never pass through a correctly crimped terminal.
TOODMCG145
Our Price (Incl. GST)
$315.00 ($362.25)
Locator/positioner for the MH860 frame, Deutsch DT solid formed contacts. Supports 16-24AWG wire (not 14AWG); milspec number M22520/7-03. Only fits the DMC MH860 frame; will not work in the AFM8 frame.
TOOLOC86-2
Our Price (Incl. GST)
$199.00 ($228.85)
Genuine DMC G125 go/no-go gauge, for verifying crimps on AF8 and AFM8 frames. Set the dial to your tool, then check the green end passes freely. Qualified to AS22520/3; the red end should never pass through a correctly crimped terminal.
TOODMCG125
Our Price (Incl. GST)
$315.00 ($362.25)
Low-cost crimp tool for AMP Superseal 1.0 connectors, used across many ECUs. Suits MoTeC Mx00, M84, and E888, plus PDM15/30, Link, and DTAFast ECUs. Also works with other OEM-style automotive connectors using the same terminal type.
TOOCRIGP
Our Price (Incl. GST)
$99.00 ($113.85)

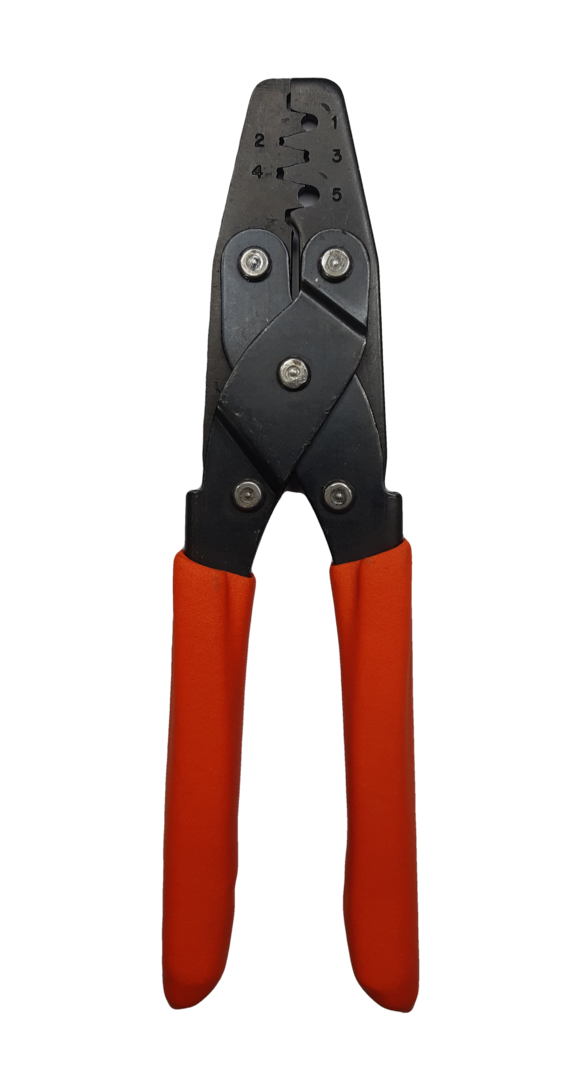

Low-cost, non-ratchet crimp tool for Delphi/Packard Weather-Pack and Metri-Pack terminals. Features three roll-crimp cavities and two insulation-crimp cavities for a range of sizes.
TOOCRIWP
Our Price (Incl. GST)
$96.39 ($110.85)
Our Price (Incl. GST)
$96.39 ($110.85)
TOOCRIWP
