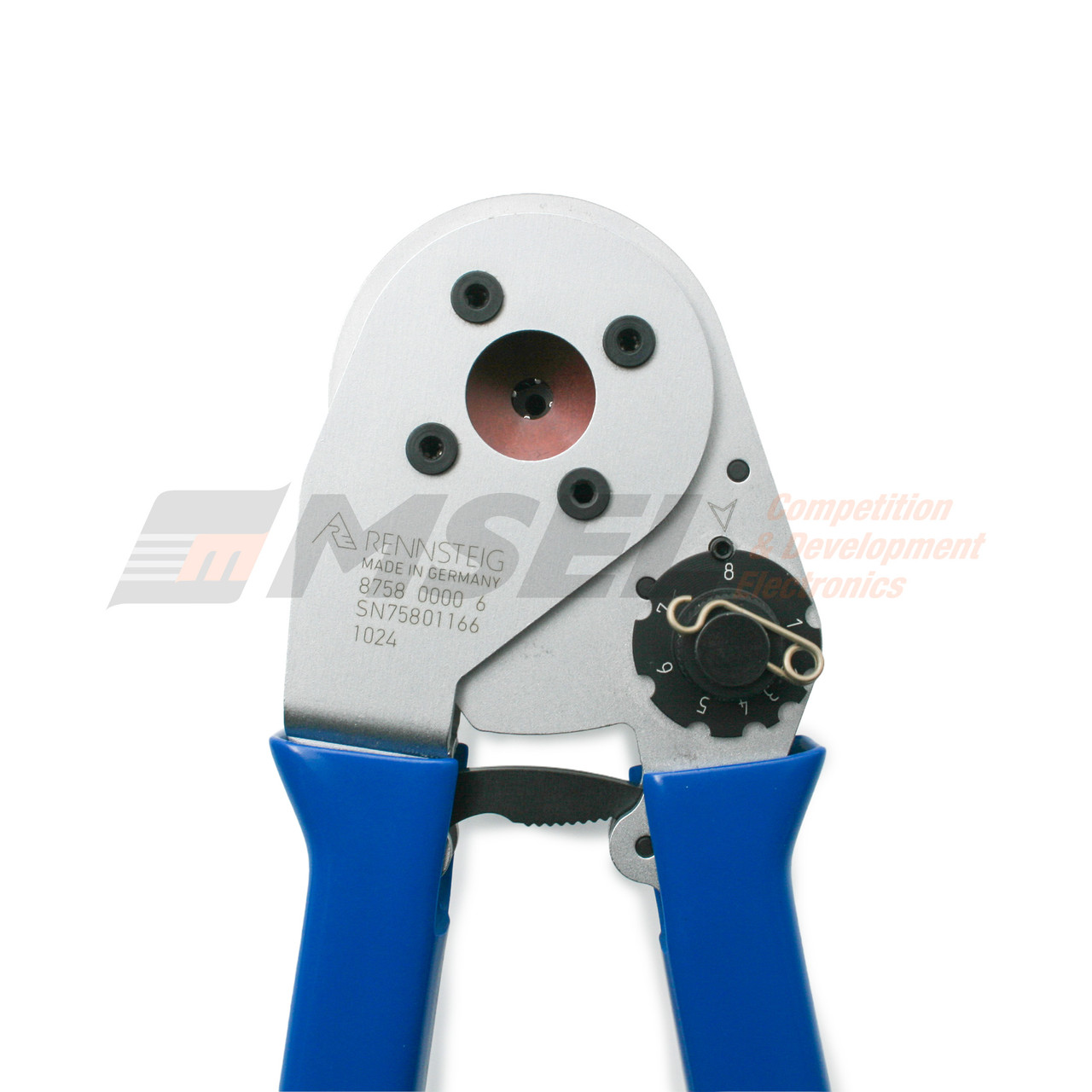

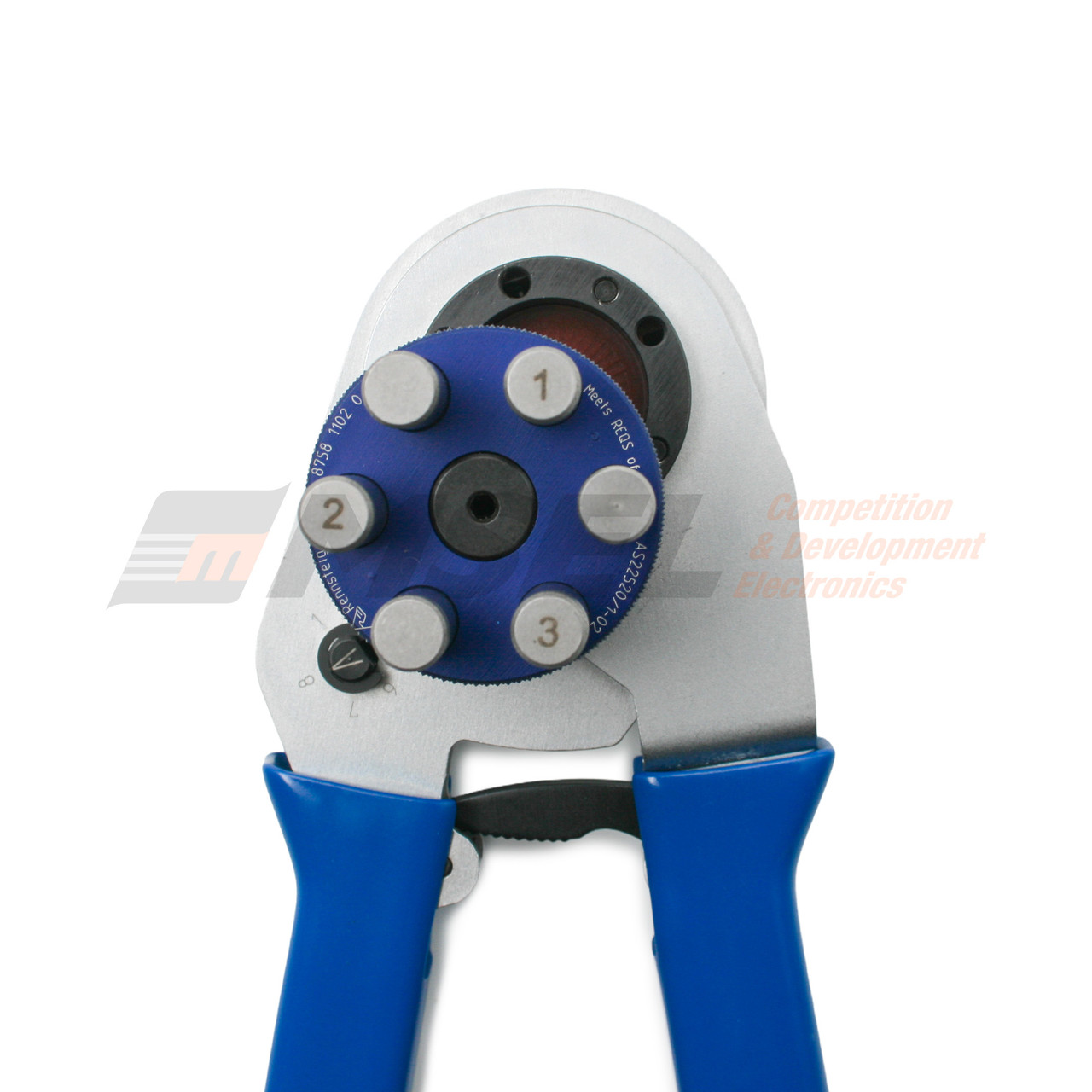

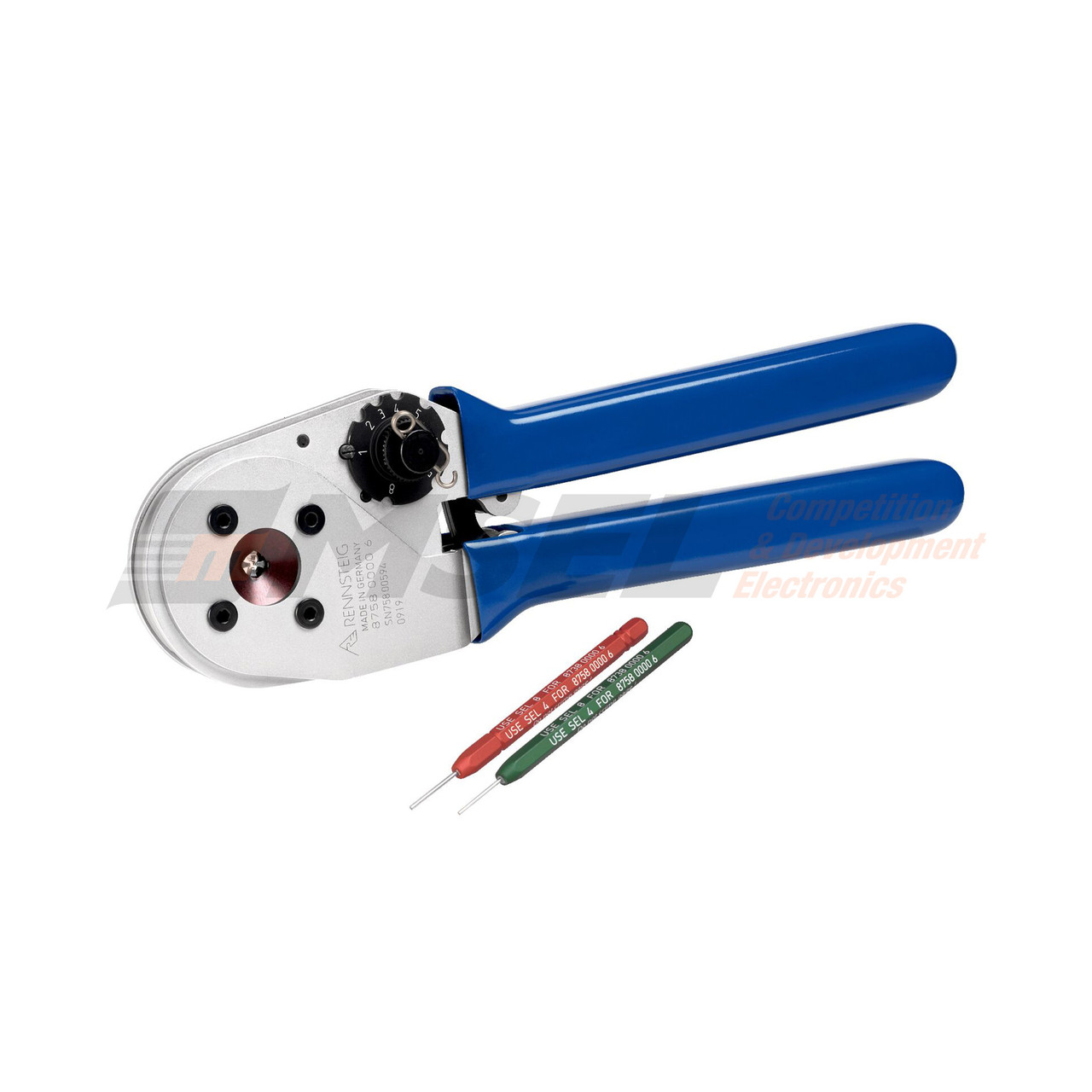

Rennsteig Crimp Frame and Turret for DTM, DT and DTP Terminals

SKU: TOORENAF8DT

Rennsteig Crimp Frame and Turret for DTM, DT and DTP Terminals
Excl. GST (Incl. GST)
$1,265.00 ($1,454.75)

Description:

Rennsteig Crimp Frame and Turret for DTM, DT and DTP Connectors

Equivalent to DMC AF8 frame,

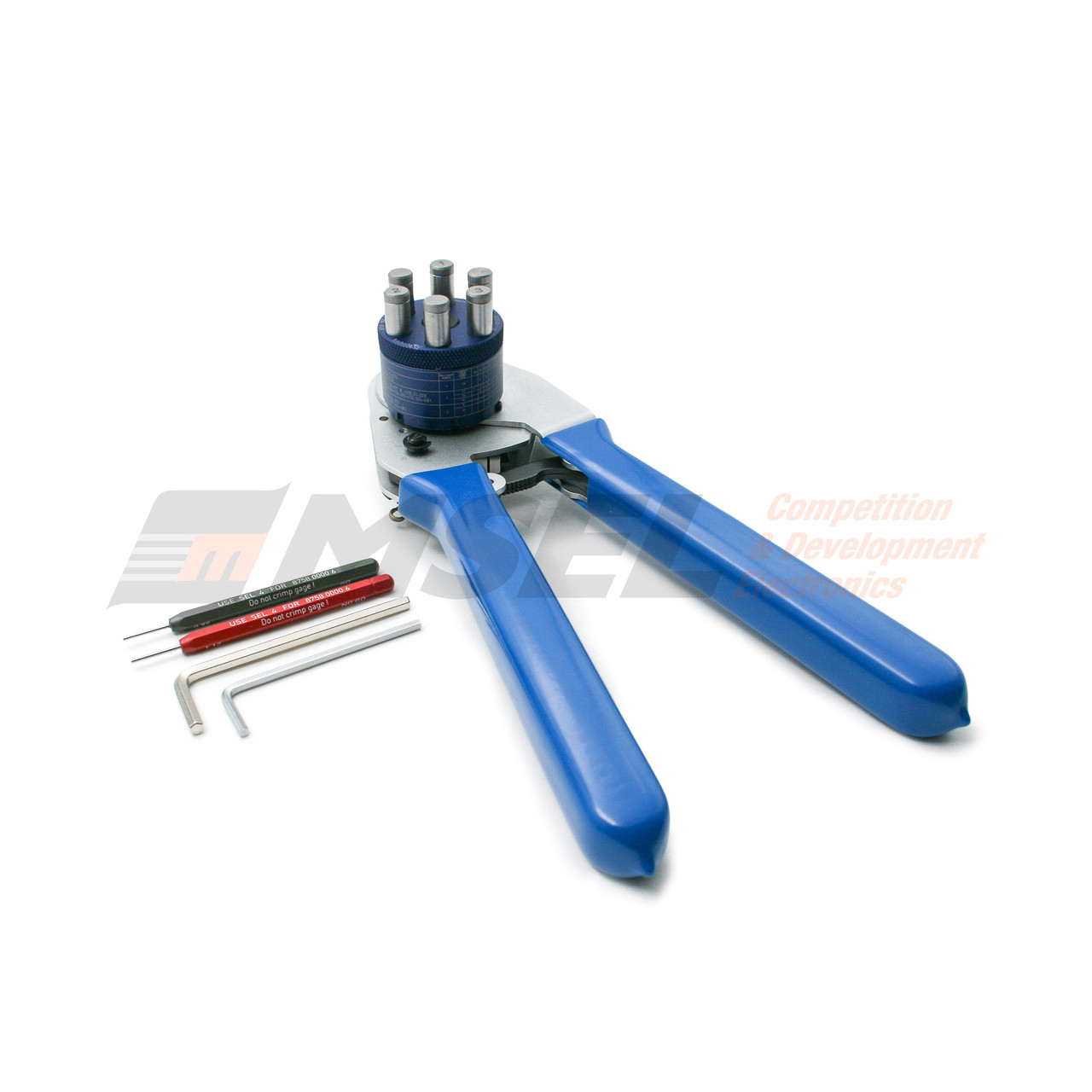

Kit Includes:

  • 1x Rennsteig Crimp Frame
  • 1x Rennsteig Turret/Positioner
    • #20 DTM solid contacts / terminals
    • #16 DT solid contacts /terminals
    • #12 DTP solid contacts / terminals
  • 2x Allen keys
  • 1x Set of go/no-go gauges
  • 1x Long retaining screw

Crimp indenters, adapter ring and selector stages comply with specifications from the AS22520 aviation standard. Reliable crimping is ensured through forced-lock completion of crimping operation and synchronous closing of crimp indenters. Optimised opening width, ergonomic design, reduced hand force.

Specifications for Crimp Frame:

General

  Weight   553g
  Dimensions   226 x 68 x 30mm
  Packaging Dimensions   255 x 125 x 56mm

Physical

  Finish   Chrome plated
  Grips   Plastic-coated grips
  Range of Applications   Turned contact
  Capacity   26AWG - 12AWG
  Max. Contact Ø    Ø 5.5mm
