Description
Hellermann 1108-1-G Right Angled Lipped Moulded Boot
HellermannTyton, Helashrink 1100 series right angle shape - non glued
This style provides connector cable strain relief. Can be installed on the connector rear thread or plain shaft and allows easy re-entry for repair when combined with a hot melt adhesive.
Application
Heat shrinkable moulded shape without rib for use in electrical and electronic cable harness applications.

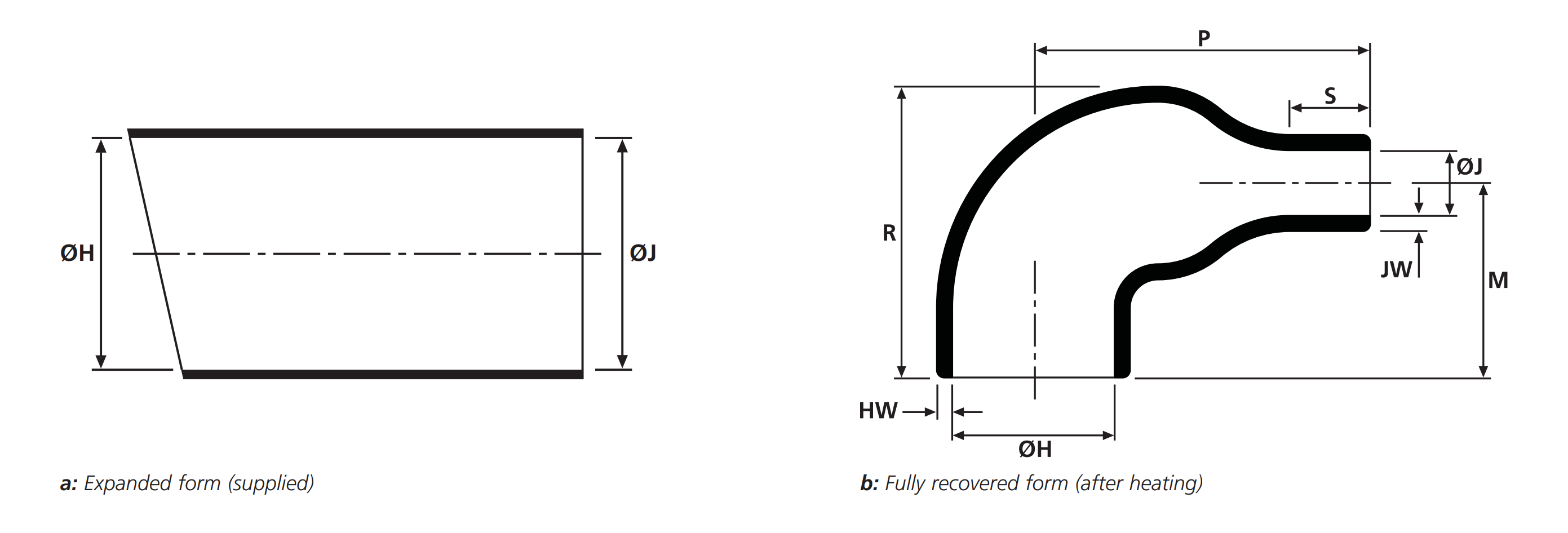

Product Dimensions
| ØH min. a | ØH max. b | ØJ min. a | ØJ max. b | P +/- 10% | R +/- 10% | HW +/- 20% | JW +/- 30% | S nom | M nom |
| 16.5 | 7.9 | 16.5 | 2.5 | 18.3 | 20.1 | 1.0 | 1.6 | 5.1 | 15.2 |
Note: all dimensions are in millimeters (mm)
Additional Product Information
Note that this boot is not pre-glued. Glue such as Resintech RT125 is recommended.
| Feature | Specification |
| Material | Polyolefin, cross-linked (PO-X) |
| Continuous Operating Temperature °C | -75 to +150 |
| Minimum Shrink Temperature °C | +135 |
| Tensile Strength (MPa) | 15 |
| Characteristics | Excellent resistance to fuels |
| Typical Applications | Military and general high performance harnessing |
| Raychem Equivalent | 222A111 |
