Description
Hellermann 1182-4-G Right Angle Lipped Boot
HellermannTyton, right angle VG style lipped boot with rib, low profile, high ratio.
This style provides connector cable strain relief. Used in applications for partially loaded connectors with small cable diameters.The tail is designed to allow easy orientation prior to cooling.
Application
Heat shrinkable moulded shape for use in electrical and electronic cable harness applications.
Designed for the Following Connectors
- Mil-spec and Autosport shell size 02 connectors
- Mil-spec and Autosport shell size 03 connectors
- Mil-spec and Autosport shell size 04 connectors
- Deutsch Autosport Micro Ultralite HE (ASU) Series
- Deutsch Autosport Micro Xtralite HE (ASX) Series

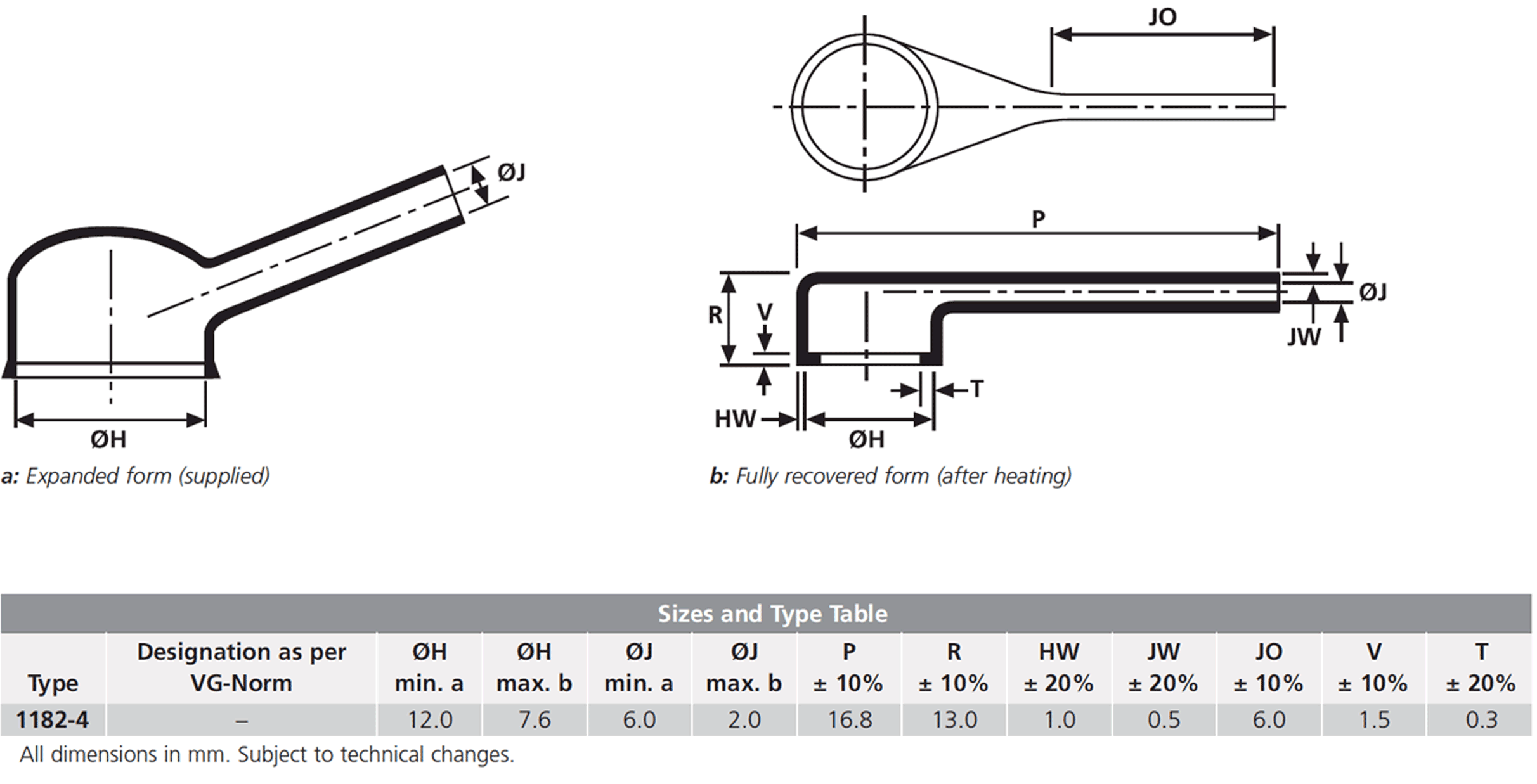

Product Dimensions
Note that this boot is not pre-glued. Glue such as Resintech RT125 is recommended.
Additional Product Information
| Feature | Specification |
| Material | Fluid resistant elastomer |
| Continuous Operating Temperature °C | -75 to +150 |
| Minimum Shrink Temperature °C | +135 |
| Tensile Strength (MPa) | 15 |
| Characteristics | Excellent resistance to fuels |
| Typical Applications | Military and general high performance harnessing |
| Raychem Equivalent | 223W601-25 and 224W221-25-G03 |
