Description

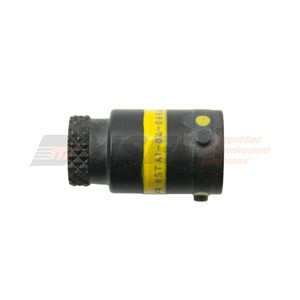

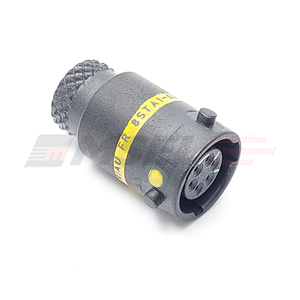

Deutsch Autosport Lite 6-Way In line receptacle with Size 26 Sockets - Yellow

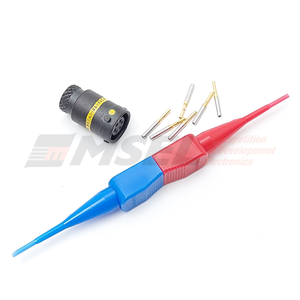

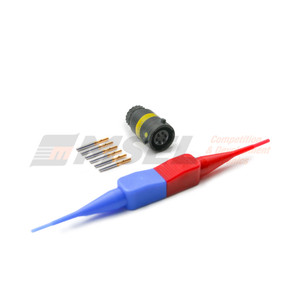

Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 10406SA | |
| Connector Type | In line receptacle | |
| Shell Size | 04 | |
| Orientation | Yellow (A) | Will only mate with yellow connectors |

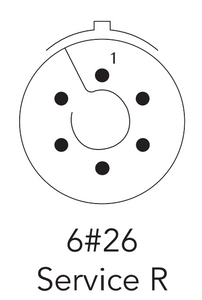

| Number of Contacts | 6 | |
| Contact Size | 26 | Supports 30 to 24AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 3 Amps | |
| Termination Type | Crimp | |
| Locator | Refer to Related Products below (not incl.) | |
| Kit Contains | connector housing, contacts and insert/removal tool |

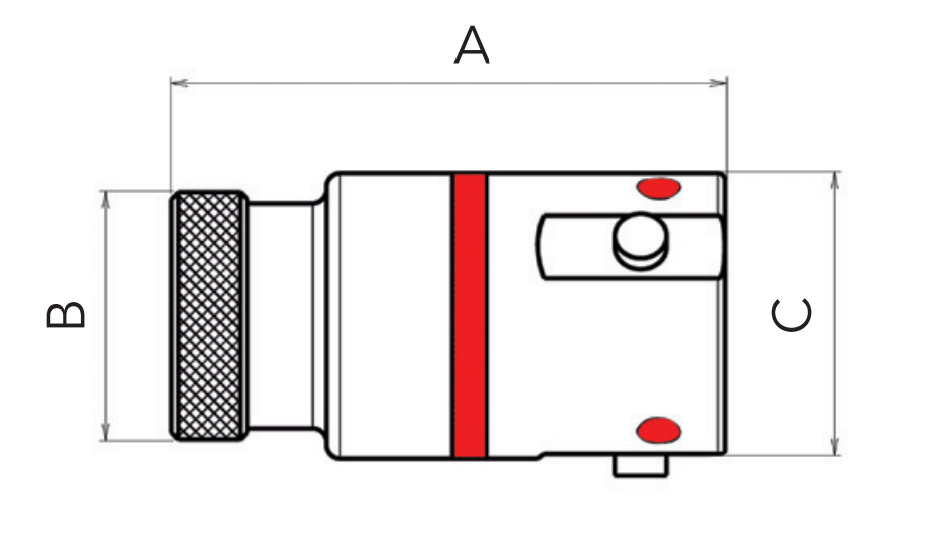

| A | ØB | ØC |
| 18.1 ±0.2 | 8.5 ±0.1 | 10.0 ±0.2 |
Note: all dimensions are in millimeters (mm)
