Description
TI Automotive (Walbro) 470lph High Pressure E85 Intank Fuel Pump
Turbine design E85 suitable high performance fuel pump from TI Automotive (was Walbro). This pump is also referred to as the Hellcat pump.
- high pressure model - F90000285
- check valve installed so suitable for duel pump applications
- dual channel turbine design, for high performance and high temperature applications
- designed for engines with more than 600hp, suitable for 900hp+ at 60psi in a naturally aspirated petrol application
- 470lph at 40psi fuel pressure with 13.5V
- electrical lead connector and pre-screen filter included
Please note that this pump includes the items in the photo only:
- fuel pump
- pig tail adapter loom
- pre-screen filter

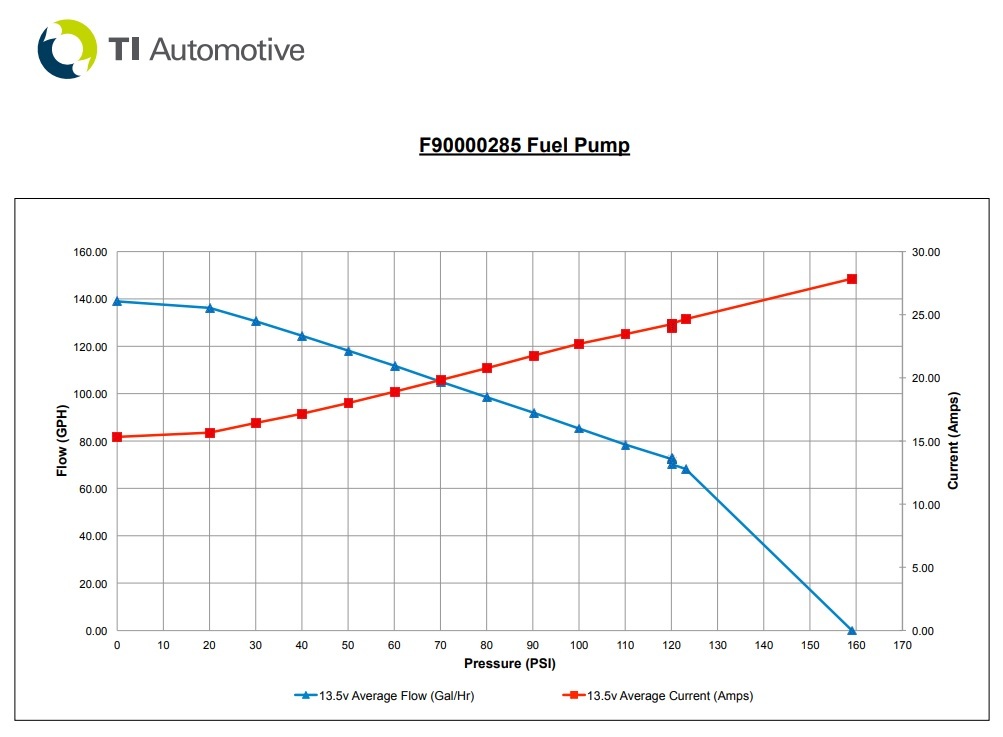

Flow rates and horsepower ratings supplied by TI Automotive
Please use the part number when comparing TI Automotive fuel pumps as there is confusion in the market place over exact flow rates.
Professional installation recommended.
Accessories (sold separately)
- Fuel Pump Adapter - 3/8" to -6AN click here.
- Through Tank Sealed Electrical Connector click here.
- High Amp Flanged M6 Bulkhead Stud click here.
