High Amp Flanged M6 Bulkhead Stud

SKU: BHSTUDHCM6

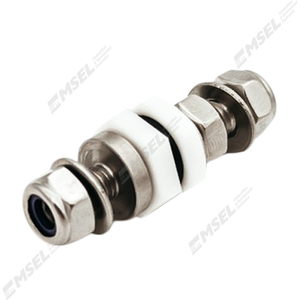

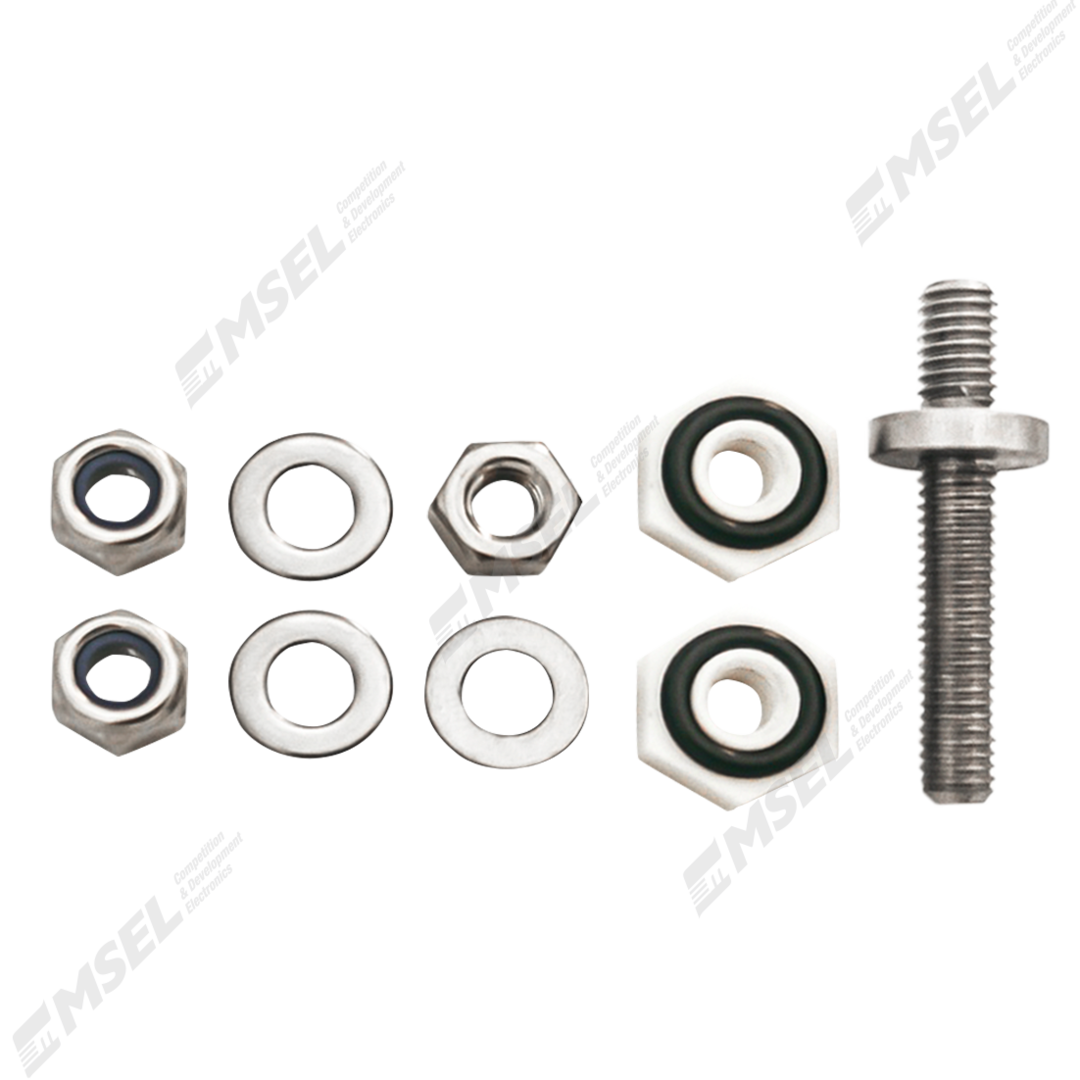

High Amp Flanged M6 Bulkhead Stud
Excl. GST (Incl. GST)
$31.88 ($36.66)
Buy in Bulk and Save!

Description:

Bulk head stud for passing power through a bulk head or fuel tank.

  • Max 25 Amps continuous per terminal (+5 AMP < 30 Sec) through a plastic bulkhead
  • Delrin plastic insulator
  • Viton o rings
  • 14mm socket can be used on the electrical isolator.
  • You can use these Bulkhead Fittings for Fuel Level Sensors or other electrical controls.
  • The minimum bulkhead thickness is 1.5mm. Maximum Thickness of 9mm
  • E85 Compatible
  • Specifically designed for use with OEM style plastic fuel pump bulkheads

Ideal for providing power to submersible pump(s)

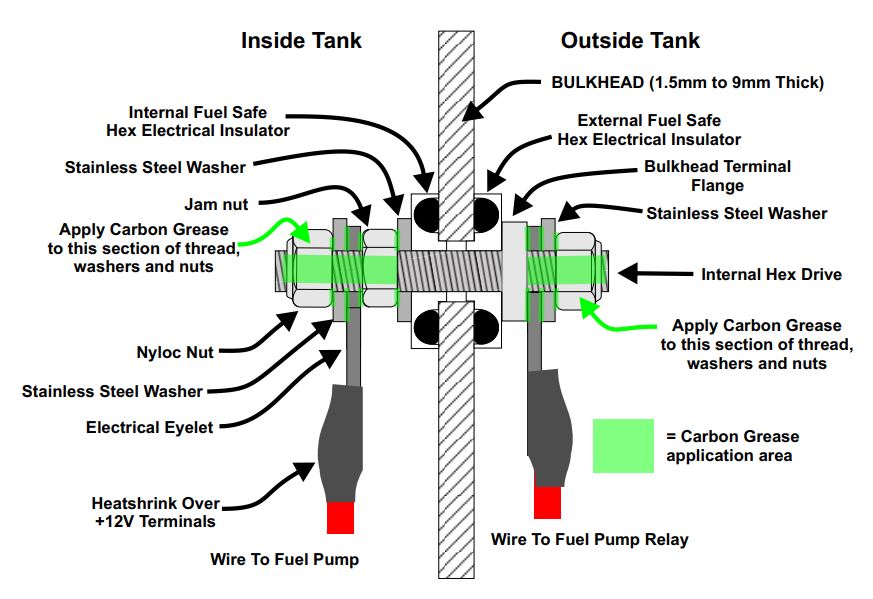

Includes carbon grease - please refer to diagram below for where to apply

M6 High current fuel tank stud


Please note, that these are sold as each. If you need a pair, please order 2.


Hex cup enables insulating sealing cups to be torqued up against each other ensuring a tight seal eliminating bad resistance resulting in excessive heat from high amperage.
