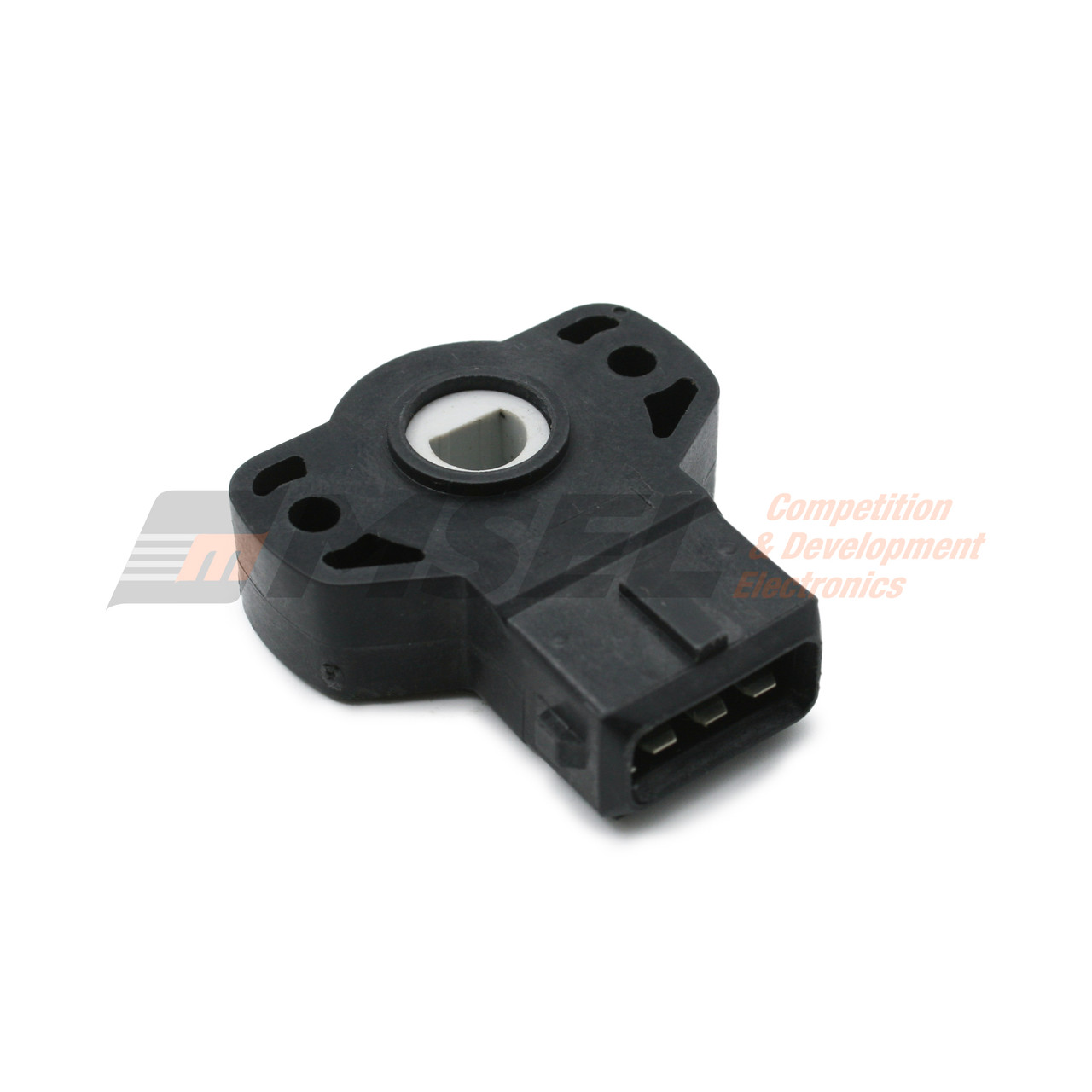

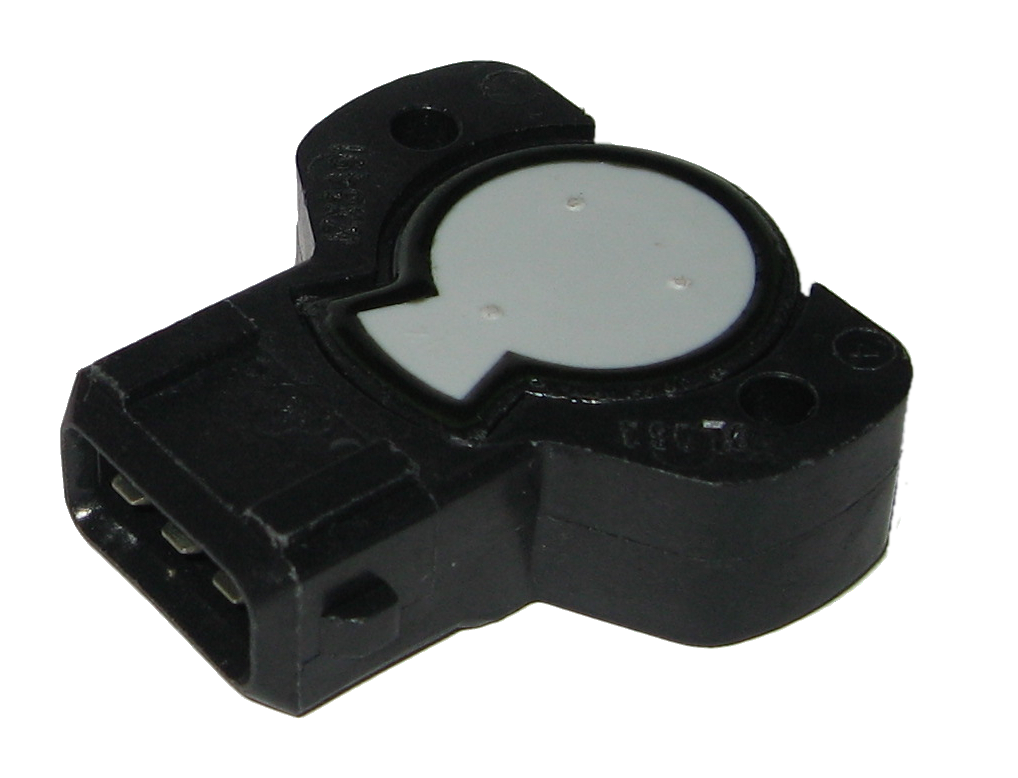

Throttle Position Sensor D Drive Right Hand Rotation

SKU:
SENTPSRH
Per Unit
$156.00 ($179.40) Excl. GST (Incl. GST)
Unit of Measure:
each
Purchase Increment:
1
Minimum Purchase:
1 unit
We ship worldwide at competitive pricing.
Shipping calculated at checkout.

Description

Right hand Throttle Position Sensor with D-drive (grey) and integrated 3-Way Junior Timer Connector

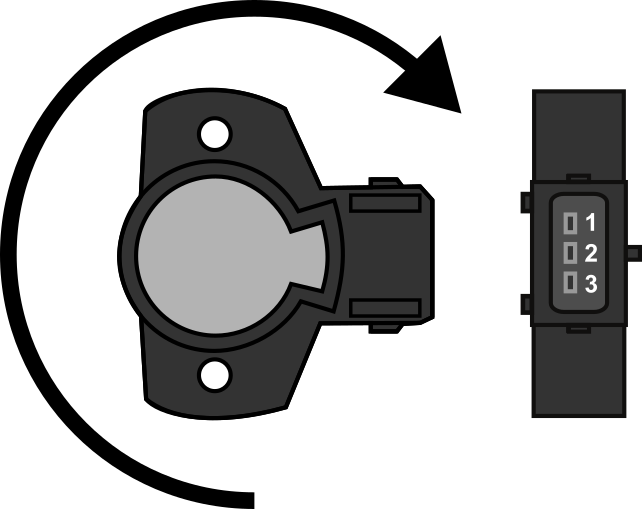

TPS_Grey

If looking at the Shaft on the throttle body, rotation would be in a clockwise direction

Pinout

Pin 1: Ground 0V
Pin 2: Output Signal
Pin 3: 5V Supply

Connector not included - for connector click here.
