Description

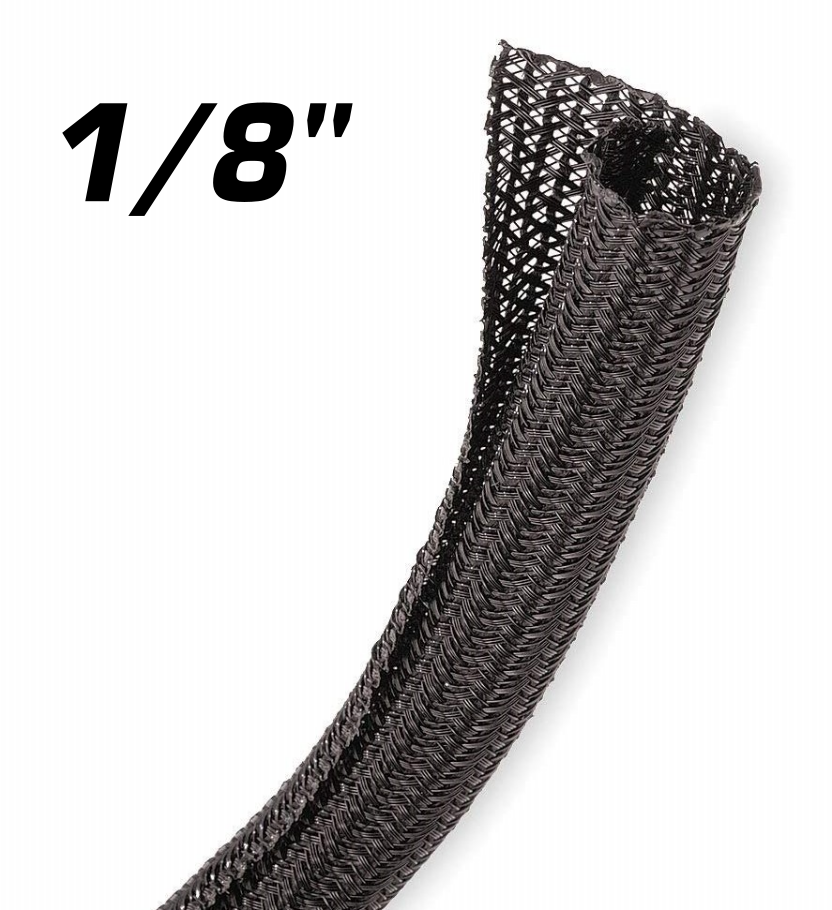

Split braids unique split, semi-rigid braided construction makes it the ideal solution for situations where ease of installation is of primary importance. The lateral split allows the tube to open up to accommodate a wide variety of bundling requirements, and the semi-rigid braid configuration simply closes around the entire installation without the need for any additional fasteners (Velcro, tape, etc.)
The PET braid is lightweight, quiet and flexible. The 25% edge overlap (at nominal diameter) allows coverage around inline plugs, connectors and splices.
Split braid will bend to a tight radius without distorting or splitting open and, unlike full rigid tubing, will not impair or affect the flexibility of harnesses.
Installation Tip: When cutting the split braid we find using a hot knife, or carefully melting the ends after cutting stops the braid from unwanted fraying.
Pricing Note - the box quantity is 400 feet (122 metres). Please enter this exact quantity for this price break.
Features:
- Easy, cost and labour effective installation
- More flexible than split convoluted or spiral wrap
- 25% edge overlap
- Soft and quiet in high vibration uses
- Cut and abrasion resistant
- Chemically inert
- Halogen free
Specifications:
Nominal Diameter: 1/8" (~3mm)
Wall Thickness: 0.024" (0.61mm)
Operating Temp: -70 to 125 C
Material: Polyethylene Terepthalate
