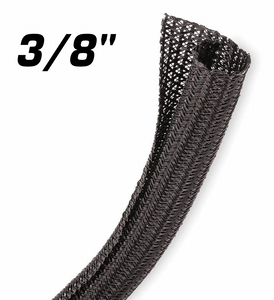

Split braid's unique split, semi-rigid braided construction makes it the ideal solution for situations where ease of installation is the priority. The lateral split allows the tube to open up to accommodate a wide variety of bundling requirements, and the semi-rigid braid configuration simply closes around the entire installation without any additional fasteners (Velcro, tape, etc.).

The PET braid is lightweight, quiet and flexible. The 25% edge overlap (at nominal diameter) allows coverage around inline plugs, connectors and splices.

Split braid will bend to a tight radius without distorting or splitting open and, unlike full rigid tubing, will not impair or affect the flexibility of harnesses.

Installation Tip: When cutting split braid, we recommend using a hot knife, or carefully melting the ends after cutting, to stop the braid from fraying.

Pricing Note - the box quantity is 150 feet (45 metres). Please enter this exact quantity for this price break.

Features

• Easy, cost-effective and labour-saving installation
• More flexible than split convoluted tubing or spiral wrap
• 25% edge overlap
• Soft and quiet in high-vibration applications
• Cut and abrasion resistant
• Chemically inert
• Halogen-free

Specifications

Nominal Diameter: 3/8" (~10mm)
Wall Thickness: 0.025" (0.64mm)
Operating Temperature: -70 to 125°C
Material: Polyethylene Terephthalate (PET)
