Description
Autosport 66-Way Plug Connector with Size 22 Sockets - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 61835SN | |
| Connector Type | Plug | |
| Shell Size | 18 | |
| Orientation | Red (N) | Will only mate with red connectors |

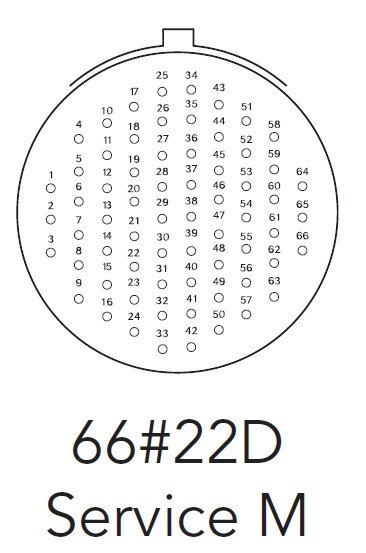

| Number of Contacts | 66 | |
| Contact Size | 22D | Supports 26 to 22AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 5 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOCK40 | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool |
| ØA max. | B max. |
| 35.40 | 18.55 |
Note: all dimensions are in millimeters (mm)
