Description

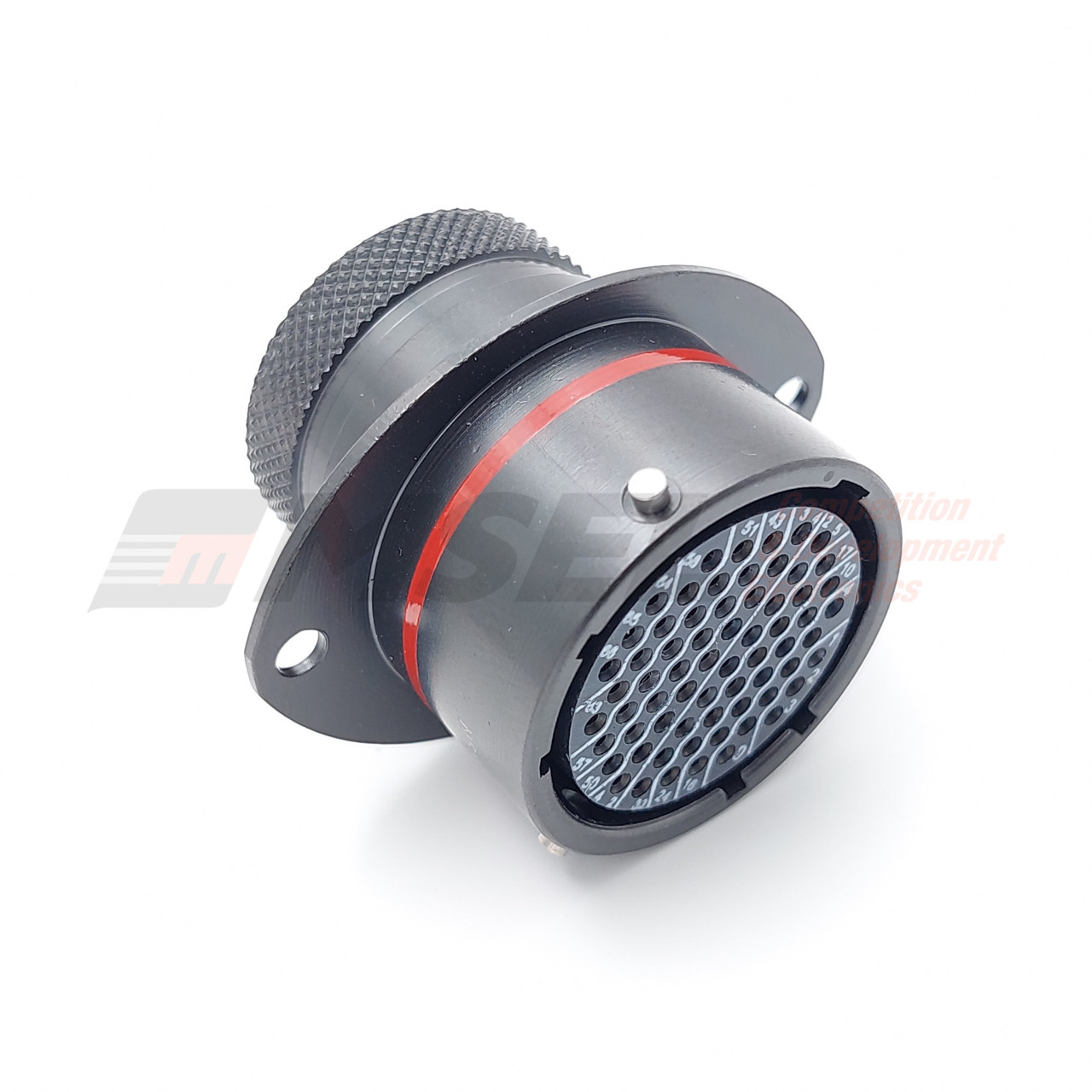

Autosport 66-Way Bulkhead Circular Connector with Size 22 Socket Terminals
Connector kit includes contacts and insert/removal tool.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 01835SN | |
| Connector Type | Oval flange receptacle | Bulkhead mounting |
| Shell Size | 18 | |
| Orientation | Red (N) | Will only mate with red connectors |

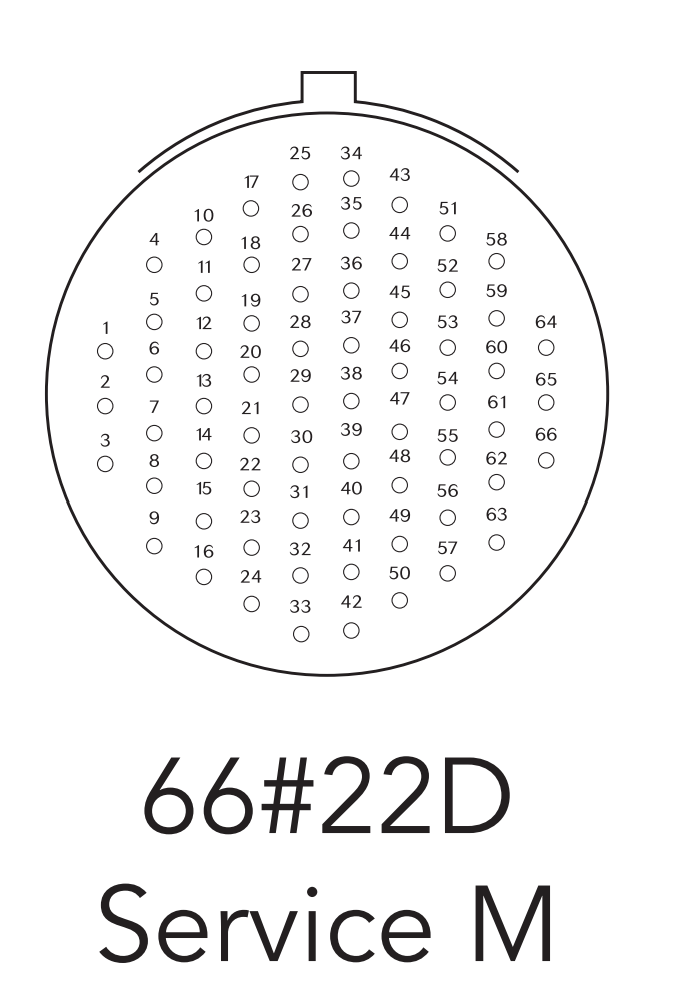

| Number of Contacts | 66 | |
| Contact Size | 22D | Supports 26 to 22AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 5 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOCK40 | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool |
| A max. | B | ØC | ØD | E | F | G max. | H max. | P max. | ØJ | K | ØL |
| 33.70 | 38.20 | 3.2 | 28.57 | 17.21 | 16.05 | 33.5 | 44.70 | 3 | 31.40 | 38.20 | 3.6 |
Note: all dimensions are in millimeters (mm)
