Description
Souriau 604-06SN 6-Way Plug with size 26 Sockets - Red
For use with the MSEL Master Relay Professional Series
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 60406SN | |
| Connector Type | Plug | |
| Shell Size | 04 | |
| Orientation | Red (N) | Will only mate with red connectors |

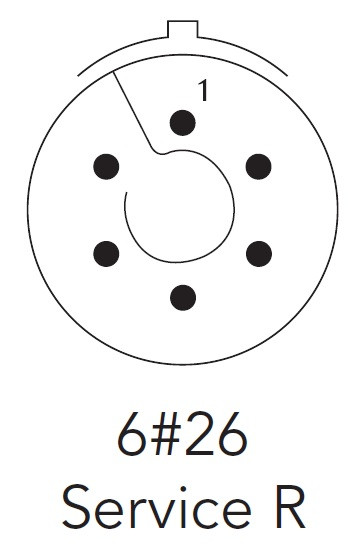

| Number of Contacts | 6 | |
| Contact Size | 26HD | Supports 30 to 24AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 3 Amps | |
| Termination Type | Crimp | |
| Locator | Refer to Related Products below (not incl.) | |
| Kit Contains |
connector housing, contacts and insert/removal tool
|

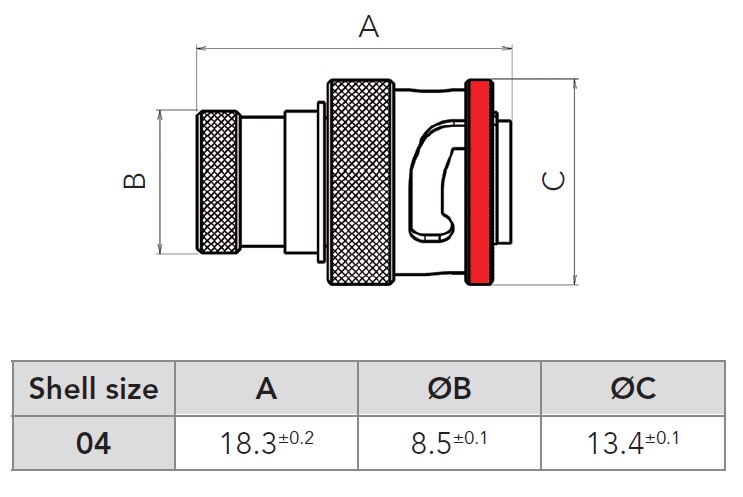

Note: all dimensions are in millimeters (mm)
