Description

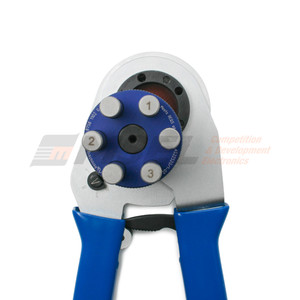

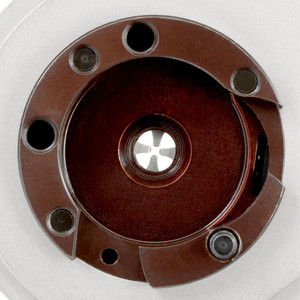

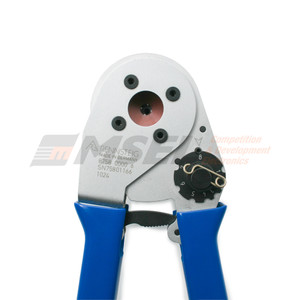

Rennsteig Crimp Frame and Turret for DTM, DT and DTP Connectors
Equivalent to DMC AF8 frame,
Kit Includes:
- 1x Rennsteig Crimp Frame
- 1x Rennsteig Turret/Positioner
- 2x Allen keys
- 1x Set of go/no-go gauges
- 1x Long retaining screw
Crimp indenters, adapter ring and selector stages comply with specifications from the AS22520 aviation standard. Reliable crimping is ensured through forced-lock completion of crimping operation and synchronous closing of crimp indenters. Optimised opening width, ergonomic design, reduced hand force.
Specifications for Crimp Frame:
General
| Weight | 553g |
| Dimensions | 226 x 68 x 30mm |
| Packaging Dimensions | 255 x 125 x 56mm |
Physical
| Finish | Chrome plated |
| Grips | Plastic-coated grips |
| Range of Applications | Turned contact |
| Capacity | 26AWG - 12AWG |
| Max. Contact Ø | Ø 5.5mm |
