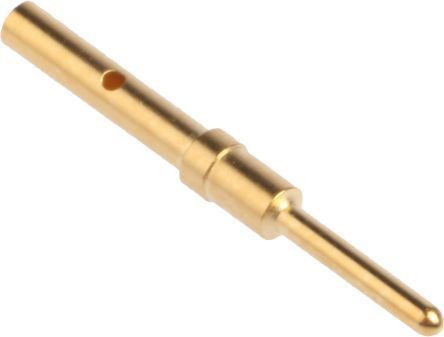

Pin for 22AWG Deutsch IMC Series 200 Connector

SKU:
TERGIMC22P
Per Unit
$3.83 ($4.40) Excl. GST (Incl. GST)
Unit of Measure:
each
Purchase Increment:
1
Minimum Purchase:
1 unit
We ship worldwide at competitive pricing. Shipping calculated at checkout.

Description

Size 22 5A Male Crimp Circular Connector Contact for use with IMC Series Connector



Specifications



Gender Male
Contact Size 22
Wire Size 26 → 22 AWG
Termination Method Crimp
Series 6860
For Use With IMC Series Connector
Current Rating 5A
Contact Plating Gold over Nickel
Voltage Rating 750 V ac
Contact Material Copper Alloy
Maximum Contact Resistance 10mΩ
Minimum Operating Temperature -55°C
Maximum Operating Temperature +175°C
