Deutsch HDP20 31-Way Plug Connector Kit with Pins

SKU: CONHDP262431PTK

Deutsch HDP20 31-Way Plug Connector Kit with Pins
Excl. GST (Incl. GST)
$69.47 ($79.89)
Buy in Bulk and Save!

Description:

Deutsch HDP20 31-Way Plug Connector Kit with Pins

Deutsch HDP20 size 24 plug with 31 size 16 pins, for mating with the matching 31-way bulkhead receptacle.

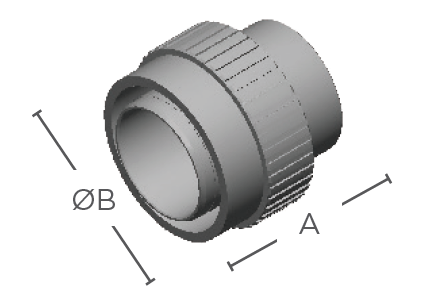

HD_Recept

Specifications

  • Shell size: 24
  • Pin configuration: 31x size 16
  • Diameter: 38.63mm (A), 49.53mm (B)
  • Coupling: bayonet quick-release
  • Shell material: heavy-duty, chemical-resistant IP68 composite

HD and HDP series connectors use the same contacts as the DT and DTM series, and are a lower-cost alternative to the Autosport range of connectors for passing looms through a bulkhead, such as an engine bay.

Kit Includes

  • 1x Deutsch HDP20 31-way plug, size 24 shell
  • 31x size 16 pins
  • 1x insert/removal tool for size 16 terminals
