Description

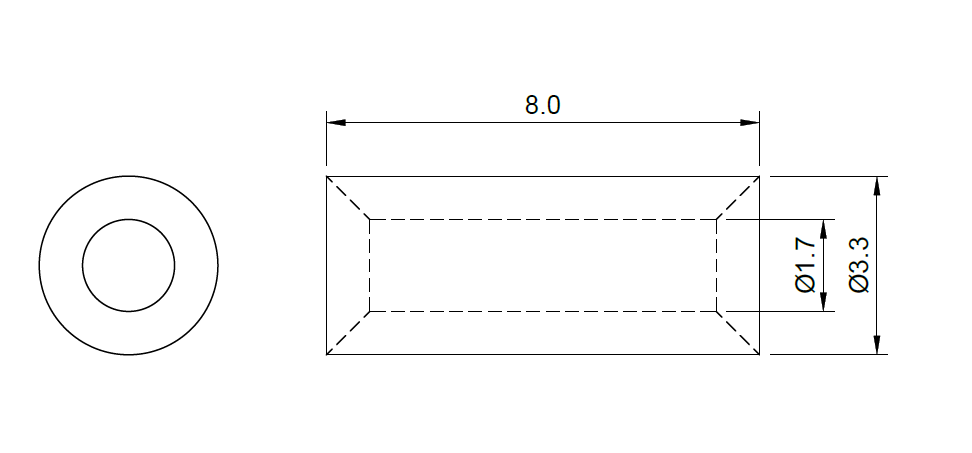

Parallel barrel splice - 22awg to 16awg - 100 pack
More robust crimp than open barrel splices.

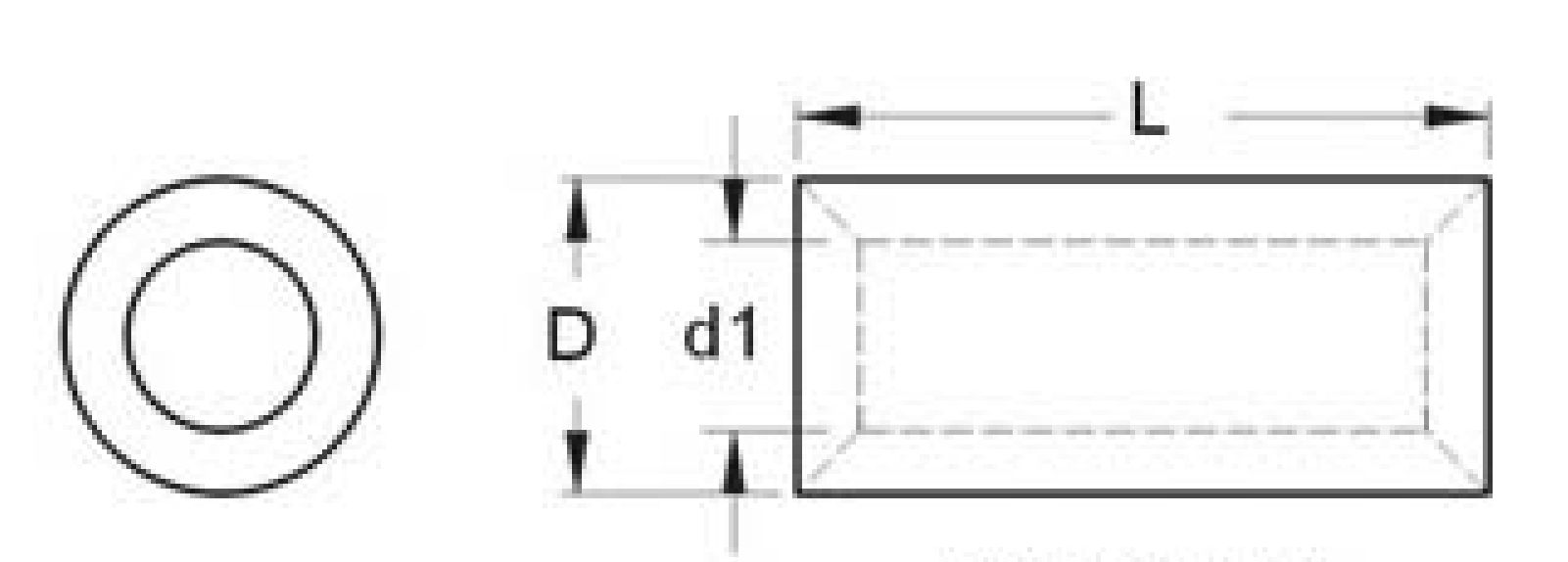

Wire Range AWG mm^2 | Part Number | Dimension (mm) | Pack Qty | |||
L | D | d1 | T | |||
22-16awg 0.5 - 1.5mm^2 | TERPBS22 | 8.0 | 3.3 | 1.7 | 0.8 | 100 |
16-14awg 1.5 - 2.5mm^2 | TERPSB16 | 8.0 | 3.9 | 2.3 | 0.8 | 100 |
12 - 10awg 4-6mm^2 | TERPBS12 | 8.5 | 5.4 | 3.4 | 1.0 | 50 |
8awg 8mm^2 | TERPBS8 | 9.5 | 7.0 | 4.6 | 1.2 | 25 |
