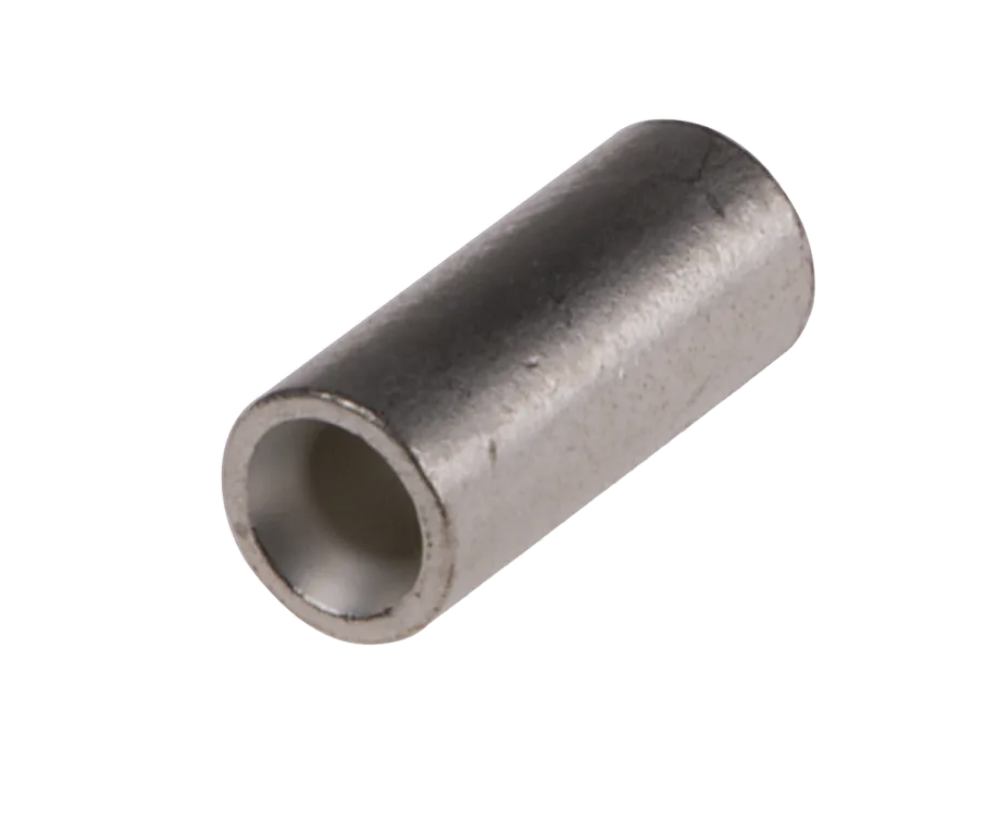

Parallel Barrel Splice - 12awg to 10awg - 50 pack
SKU: TERPBS12
Parallel Barrel Splice - 12awg to 10awg - 50 pack
SKU: TERPBS12
Summary:
Parallel barrel splice crimps 12 to 10AWG wire, sold in a 50-pack. Its parallel-barrel design gives a robust crimp for larger current loads. Measures 8.5mm long by 5.4mm across, fitting 4 to 6mm² wire.
Excl. GST (Incl. GST)
$19.00 ($21.85)
Buy in Bulk and Save!
Description:
Parallel barrel splice - 12awg to 10awg - 50 pack
More robust crimp than open barrel splices.

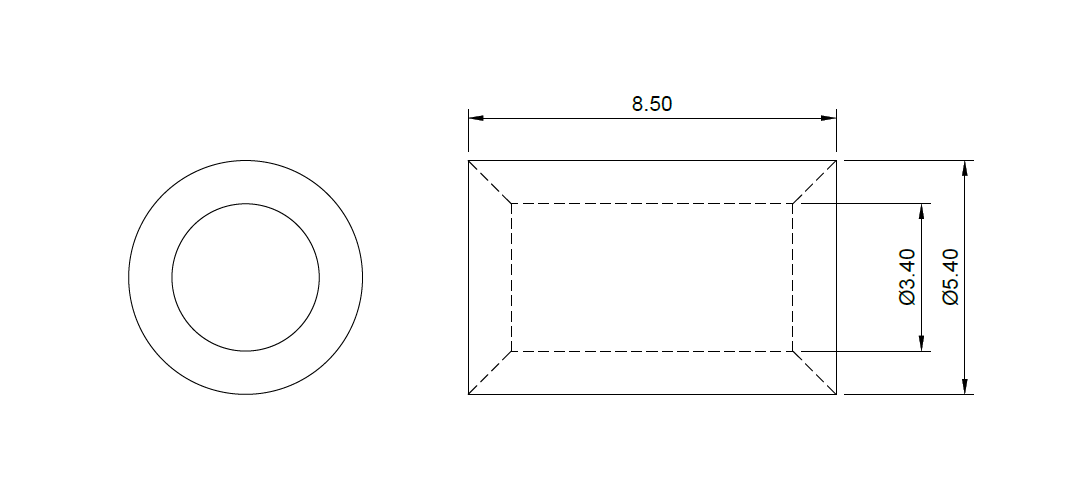

| Wire Range AWG mm^2 | Part Number | Dimension (mm) | Pack Qty | |||
| L | D | d1 | T | |||
| 22-16awg 0.5 - 1.5mm^2 | TERPBS22 | 8.0 | 3.3 | 1.7 | 0.8 | 100 |
| 16-14awg 1.5 - 2.5mm^2 | TERPSB16 | 8.0 | 3.9 | 2.3 | 0.8 | 100 |
| 12 - 10awg 4-6mm^2 | TERPBS12 | 8.5 | 5.4 | 3.4 | 1.0 | 50 |
| 8awg 8mm^2 | TERPBS8 | 9.5 | 7.0 | 4.6 | 1.2 | 25 |
