Description
Momentary push button switch
Positive action, attractive and rugged for wet and dusty environments.
- Ideal for dash and engine management control buttons on steering wheels
- Multiple colour options
- Made in the USA by military supplier
- Used on Toyota Racing Series cars
- Bump proof with an extremely positive feel - no more wondering if you have pressed the button or false triggers
- Blue switch is rated to IP68S. All other colours are IP64.
| Electrical Ratings | |
| Load | Sea level @ 28VDC or 115VAC, 60/400Hz |
| Resistive | 5A |
| Inductive | 2A |
| DMV | 1050Vrms |
| Low Level | 10mA @ 30mV |
| Electrical Life | 25,000 cycles 5A @ 28VDC |
| Mechanical Life | 1,250,000 cycles |
| Seal | IP64 rated |
| Operating Temp Range | -40øC to +85øC |
| Operating Force | 1.7lbs. ñ0.5lb |
| Total Travel | 0.080 inches max |
| Overtravel | 0.010 inches min |
| Materials | |
| Case | Thermoplastic |
| Button | Thermoplastic |
| Terminals | Silver alloy with gold plate |
| Terminal Hardware | None provided |
| Mounting Hardware | Hex nut, lockwasher and panel gasket |

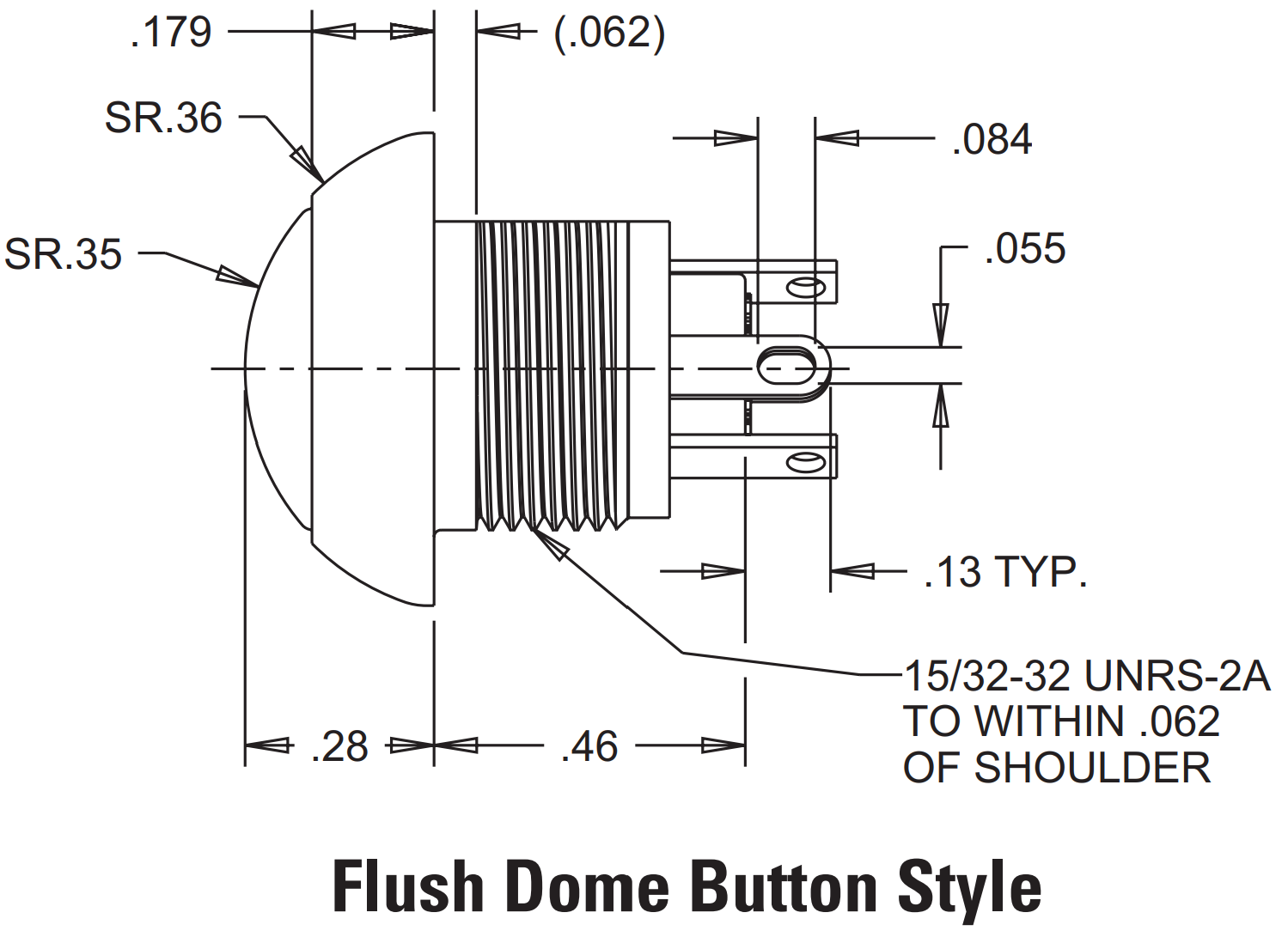

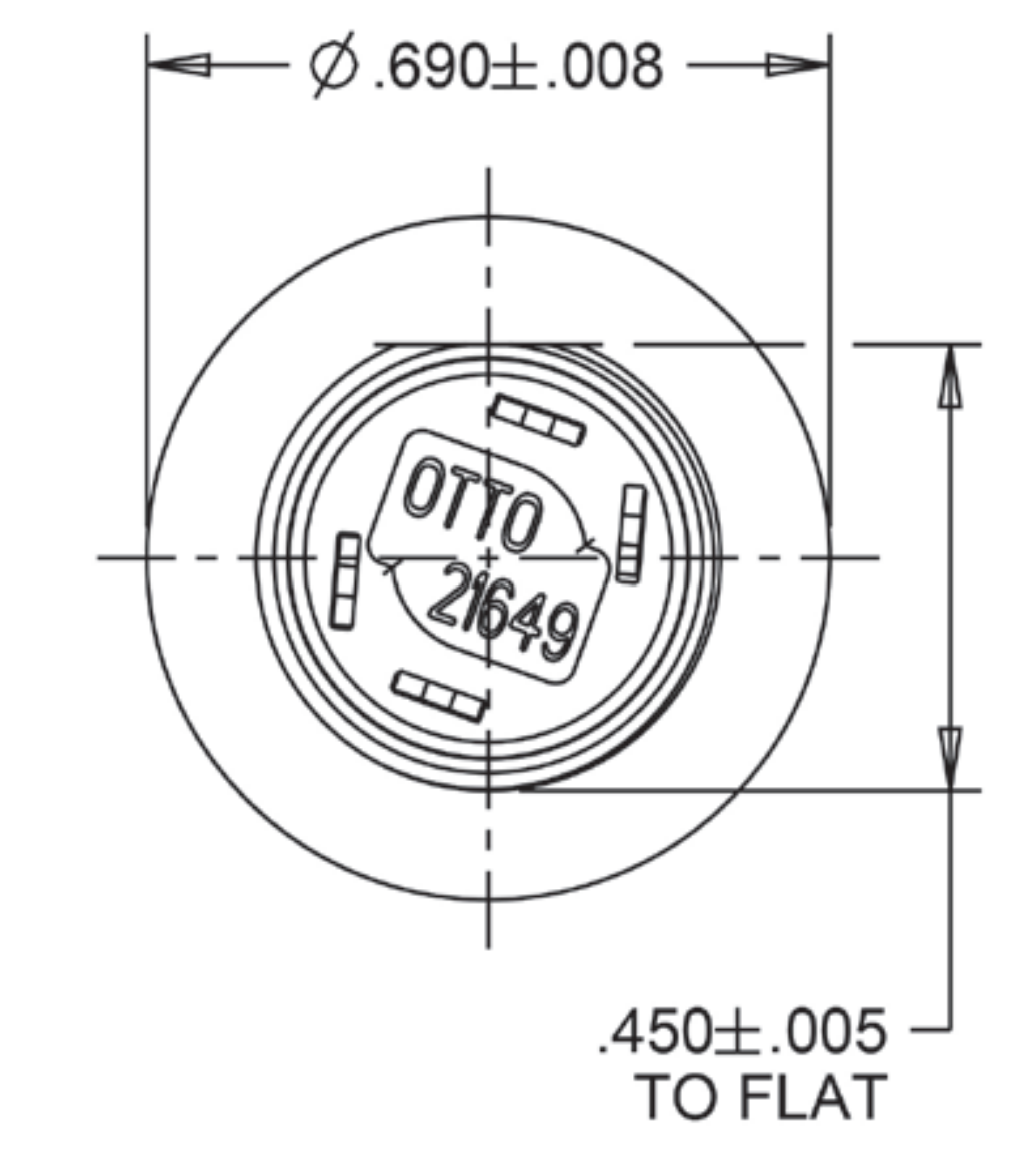

Please note: dimensions in inches
Accessories (sold separately)
For recommended boots, please refer to Related Products below.
