Description
The C185 is a stunning full colour display combined with a powerful, professional level data logger. It comes standard with 250 MB internal logging memory and MoTeC's world-renowned i2 data analysis software. For more advanced data analysis, a Pro Analysis option is available. It can also offer the convenience and flexibility of USB Logging, an optional upgrade that can be enabled in the field at any time. This upgrade also increases the internal memory to 500 MB. In addition it has three composite video inputs for a live camera feed on the display screen.

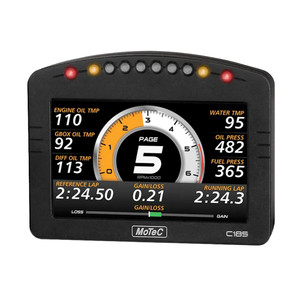

The vivid 125mm screen (approx 5") is high resolution, ultra bright and anti-reflective for easy reading in direct sunlight. You can choose from numerous selectable layouts and configure the channels and labels to suit, or opt for the Display Creator upgrade and treat your screen as a blank canvas with unique graphics, images, logos and custom icons. Create multiple pages to suit different scenarios, optimising the screen space for your application.

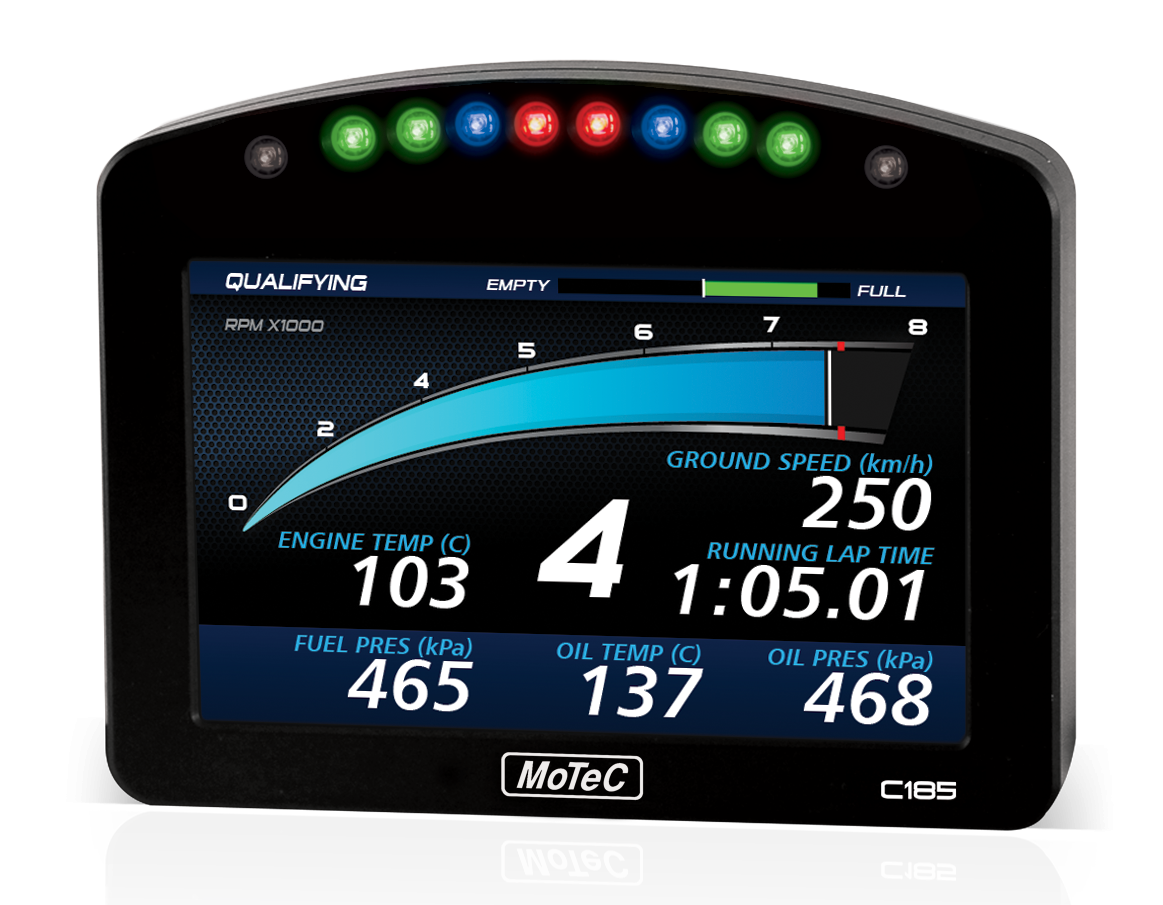

An array of ten full colour LEDs is integrated into the unit for use as shift lights, warning lights or other driver alerts. The colour, function and intensity of each LED is programmable, allowing users to develop their own unique strategies and sequences.
Specifications:
Display
- Screen: Colour TFT LCD, anti-reflective
- Resolution: 800 x 480, anti-aliased graphics
- Selectable fixed layouts with channel and label configurability
- 48 user-defined, scrollable message lines with programmable overrides
- 3 programmable 'pages', for example Practice, Warm-Up, Race
Logging
- 250 MB internal logging memory
- Optional USB Logging to a removable storage device (flash drive)
- also upgrades internal memory to 500 MB
- Logging rates up to 1000Hz
- Fast Ethernet download
- Includes i2 Standard data analysis software as standard (i2 Pro available as an upgrade)
Communications

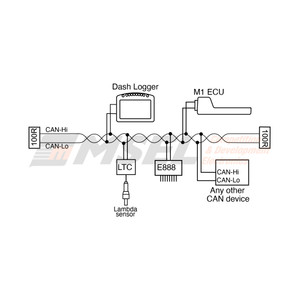

- 4 x Configurable CAN buses with individually programmable CAN bus speeds
- One can be used as RS232 Receive
- Two CAN buses cupport VIM/SVIM Expanders
- 2 x Dedicated RS232 ports
Physical

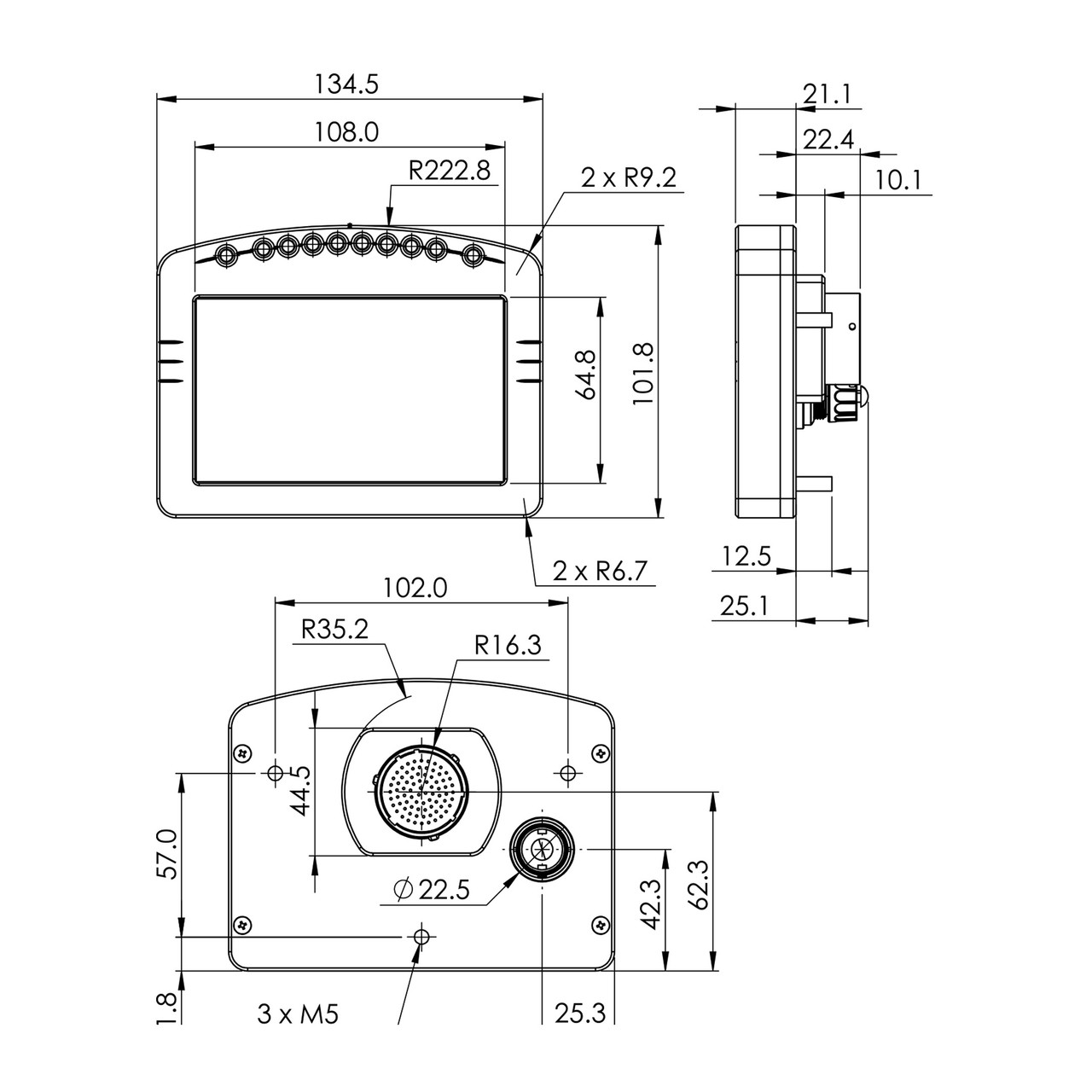

- Dimensions 134.5 x 101.8 x 19.4 mm excluding connector
- Weight 390 g
- 1 x 79 pin Autosport connector
- 1 x Mini USB port
- Housing: IP67 rated
- Diffused LEDs
Inputs
- 10 x Analogue voltage inputs (upgradable to 20 with I/O Upgrade)
- 4 x Analogue temperature inputs (upgradable to 8 with I/O Upgrade)
- 4 x Digital inputs
- 2 x Switch inputs
- 4 x Speed inputs
- 3 x Composite Video Input for the connection of a PAL or NTSC camera
Outputs
- 6 x Low side outputs
- PWM or switched operation
Internal Sensors
- 3-axis G sensor
- Dash temperature sensor
- Sensor supply voltage
- Battery voltage
