Autosport 79-Way Plug Connector with Size 22 Sockets - Red
SKU: CONAS62035SN
Autosport 79-Way Plug Connector with Size 22 Sockets - Red
SKU: CONAS62035SN
Summary:
Autosport 79-way plug connector with Size 22D socket contacts, red keyway. Equivalent to MoTeC part 68086, fitting the ADL, ADL2, ADL3 and C185 range. Fits MoTeC C187, C1812, L180 and EDL dash and logger products too.
Excl. GST (Incl. GST)
$321.16 ($369.33)
Buy in Bulk and Save!
Description:
Autosport 79-Way Plug Connector with size 22 Sockets - Red
For use with Motec professional level dash/logger products. Equivalent to Motec part number 68086.
- Motec ADL
- Motec ADL2
- Motec ADL3
- Motec C185
- Motec C187
- Motec C1812
- Motec L180
- Motec EDL
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 62035SN | |
| Connector Type | Plug | |
| Shell Size | 20 | |
| Orientation | Red (N) | Will only mate with red connectors |

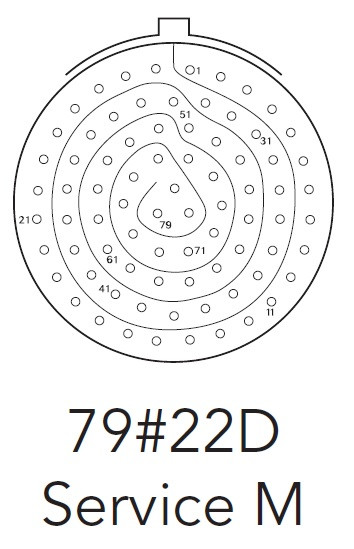

| Number of Contacts | 79 | |
| Contact Size | 22D | Supports 28 to 22AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 5 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOCK40 | Refer to Related Products below (not incl.) |
| Kit Contains |
connector housing, contacts and insert/removal tool
|
| ØA max. | B max. |
| 38.20 | 19.30 |
Note: all dimensions are in millimeters (mm)
