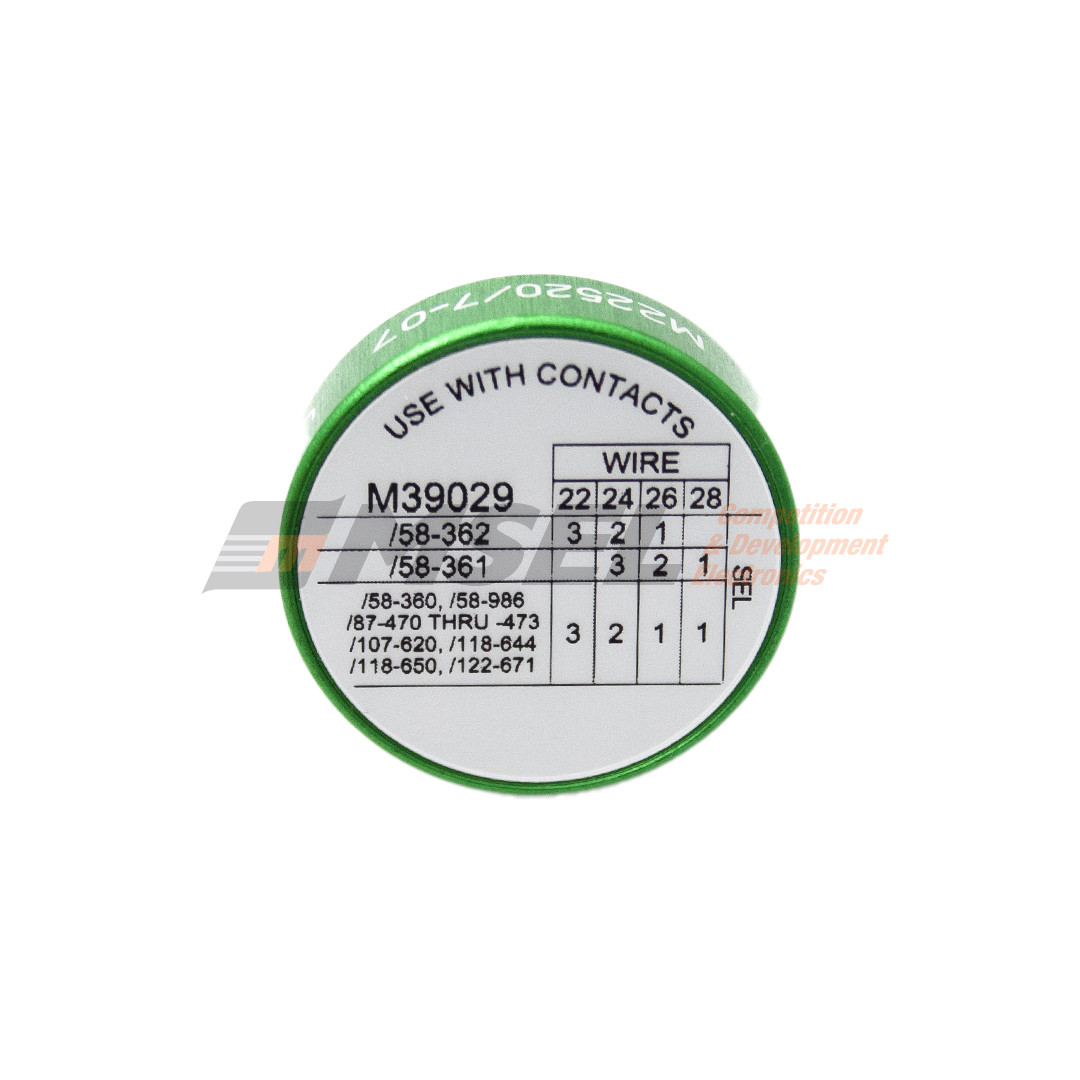

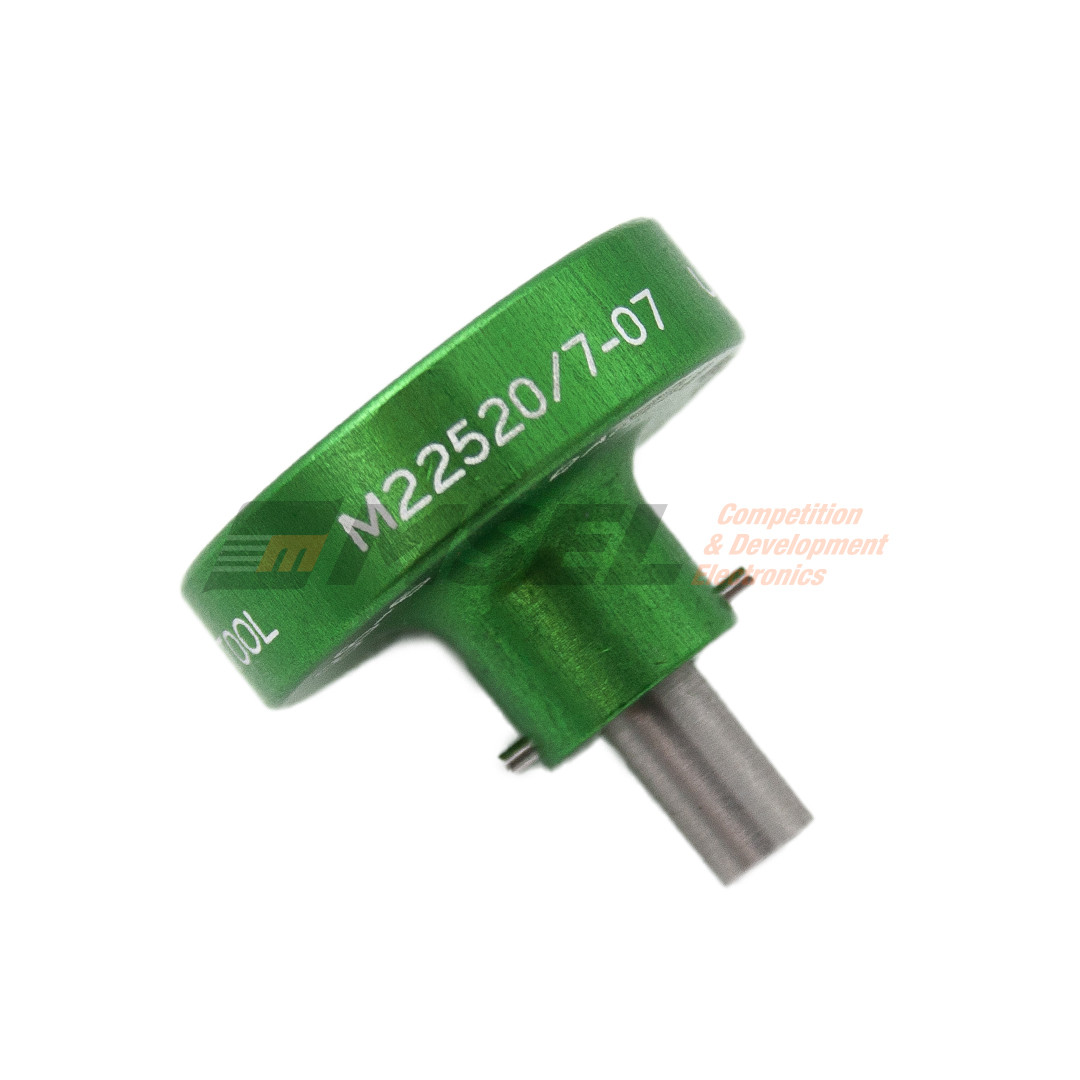

MH860 Positioner / Locator for Size 22 Autosport Pins

SKU:
TOOLOC86-6
  • DMC Tools 86-46M22520/7-07 Autosport positioner
  • DMC Tools 86-46M22520/7-07 Autosport positioner
Per Unit
$159.00 ($182.85) Excl. GST (Incl. GST)
Unit of Measure:
each
Purchase Increment:
1
Minimum Purchase:
1 unit
We ship worldwide at competitive pricing. Shipping calculated at checkout.

Description

86-6 Locator / positioner for MH860 crimp frame for Size 22 Autosport pins



Positioner for use with Autosport #22 pins.

  • For autosport / motorsport connectors from Deutsch and Souriau
  • May work with compatitible contacts from Amphenol
  • Supports 22-24AWG wire
  • Locator only supports pins (socket locator is part number 86-4)
  • Mil-spec part number M22520/7-07



Note that this locator will only work with the green MH860 frame (not the blue AFM8 frame).
