Description

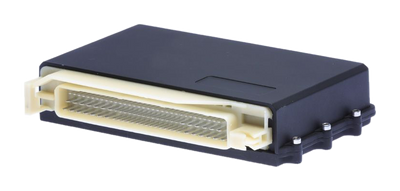

The F88RL ECU is the most cost effective engine management system of the suffix L series. Based on the F88 architecture the RL is by no means a compromise it just has less inputs and outputs for those applications that don’t require the complexity of the full F88. This twin processor unit uses a high speed RISC processor for code execution and an additional large FPGA for high speed engine position tracking, allowing the scheduling of code to be independent of signal patterns, increasing flexibility, efficiency and accuracy under transient conditions. This powerful combination also allows advanced control algorithms but yet easy to map for the end user.
- 4 x ignition outputs with software selectable IGBT drivers
- 8 x injector ouputs
- integrated wideband lambda input
- 1MB logging with rates up to 1000Hz
- 4 x multipurpose inputs (AV, AT, frequency)
- 8 x temperature / analogue voltage inputs
- user configurable CAN-bus messaging
- high speed ethernet downloading and programming
When comparing with other brands, consider the following:-
- Life Racing engine management systems have been used and won in professional motorsport up to Lemans level
- all Life Racing engine management systems include wide band lambda control
- all Life Racing engine management systems include logging rates up to 1000Hz
- all Life Racing engine management systems include variable valve timing, launch control, gear change ignition cut
- all Life Racing engine management systems have ref/ysnc capture
- all Life Racing engine management systems have high speed ethernet download and programming
Accessories (sold separately)
- AMP / Bosch 88-Way Connector Kit click here.
- RJ45 Ethernet Bulkhead Cable - 1m click here.
- RJ45 Ethernet Bulkhead Cable - 2m click here.
