Hellermann 1181-4-G-W24 Right Angle Lipped Adhesive Lined Boot

SKU:
BOO1181-4-GW24
Per Unit
$21.85 ($25.13) Excl. GST (Incl. GST)
Unit of Measure:
each
Purchase Increment:
1
Minimum Purchase:
1 unit
We ship worldwide at competitive pricing.
Shipping calculated at checkout.

Description

HellermannTyton, right angle, MIL style adhesive lined lipped boot with rib

This style provides strain relief for harnessing stems when used in conjunction with circular grooved adaptor.

The pre-applied W24 adhesive is a high performance, 1 part epoxy with an operating temperature range of -75 to +200 °C.


Application

This style provides strain relief for harnesssy stems when used in conjunction with circular grooved adaptor.

The pre-applied W24 adhesive is a high performance, 1 part epoxy with an operating temperature range of -75 to +200 °C.

Designed for the Following Connectors
  • Mil-spec and Autosport shell size 06 connectors
  • Deutsch Autosport Composite (ASC) Series
  • Deutsch Autosport Micro HE (ASL) Series

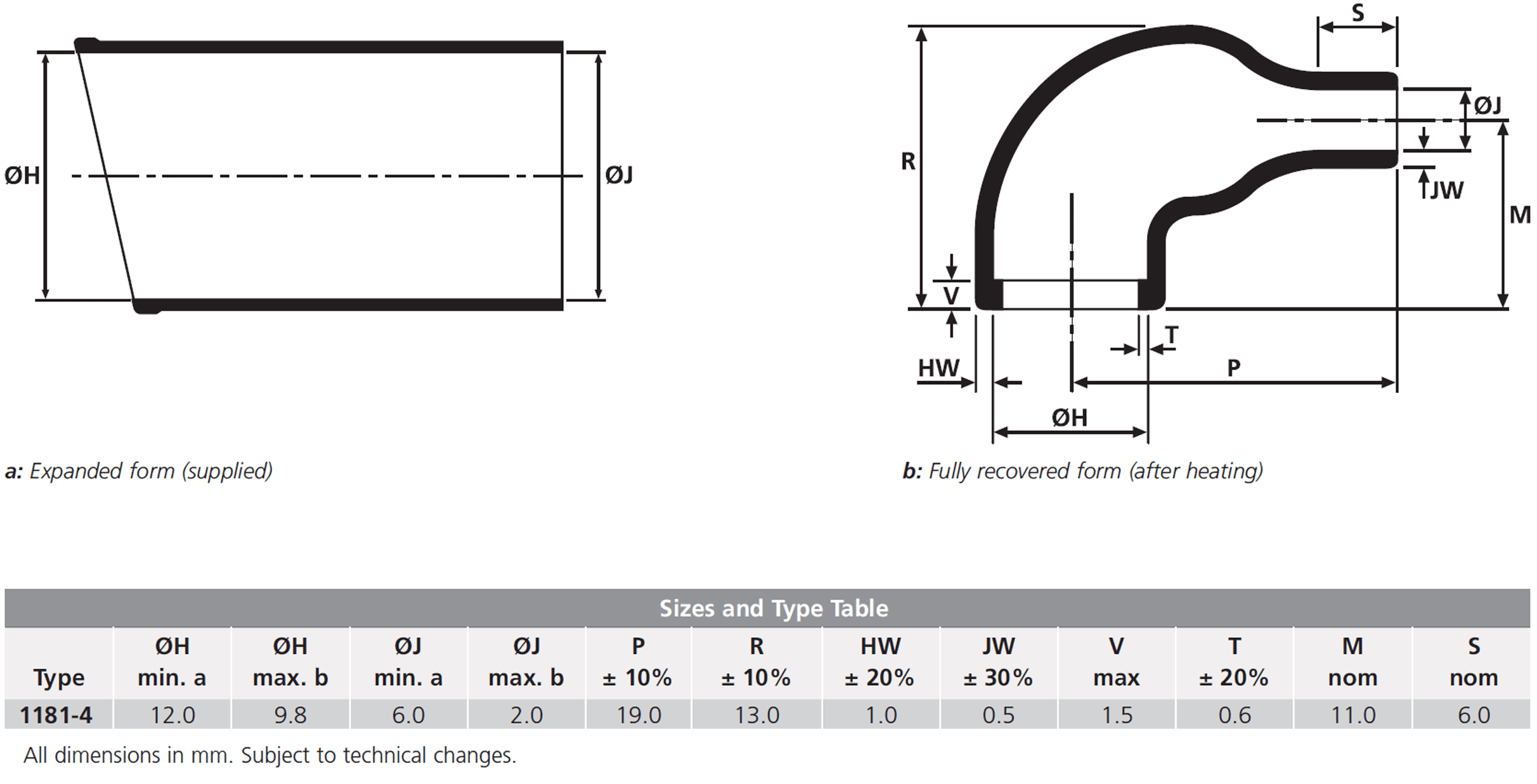

Product Dimensions

BOO1181-4-GW24_TD

Additional Product Information

Feature
Specification
 Material  Fluid resistant elastomer
 Continuous Operating Temperature °C  -75 to +150
 Minimum Shrink Temperature °C  +135
 Tensile Strength (MPa)  15
 Characteristics  Excellent resistance to fuels
 Typical Applications  Military and general high performance harnessing
 Raychem Equivalent  224W221
