Description
HellermannTyton, Right Angle, VG Style Adhesive Lined Lipped Boot with Rib
This style provides strain relief for harnessing stems when used in conjunction with circular grooved adaptor.
The pre-applied W24 adhesive is a high performance, 1 part epoxy with an operating temperature range of -75 to +200 °C.
Application
Heat shrinkable moulded shape for use in electrical and electronic cable harness applications.
Designed for the Following Connectors
- Mil-spec and Autosport shell size 14 connectors

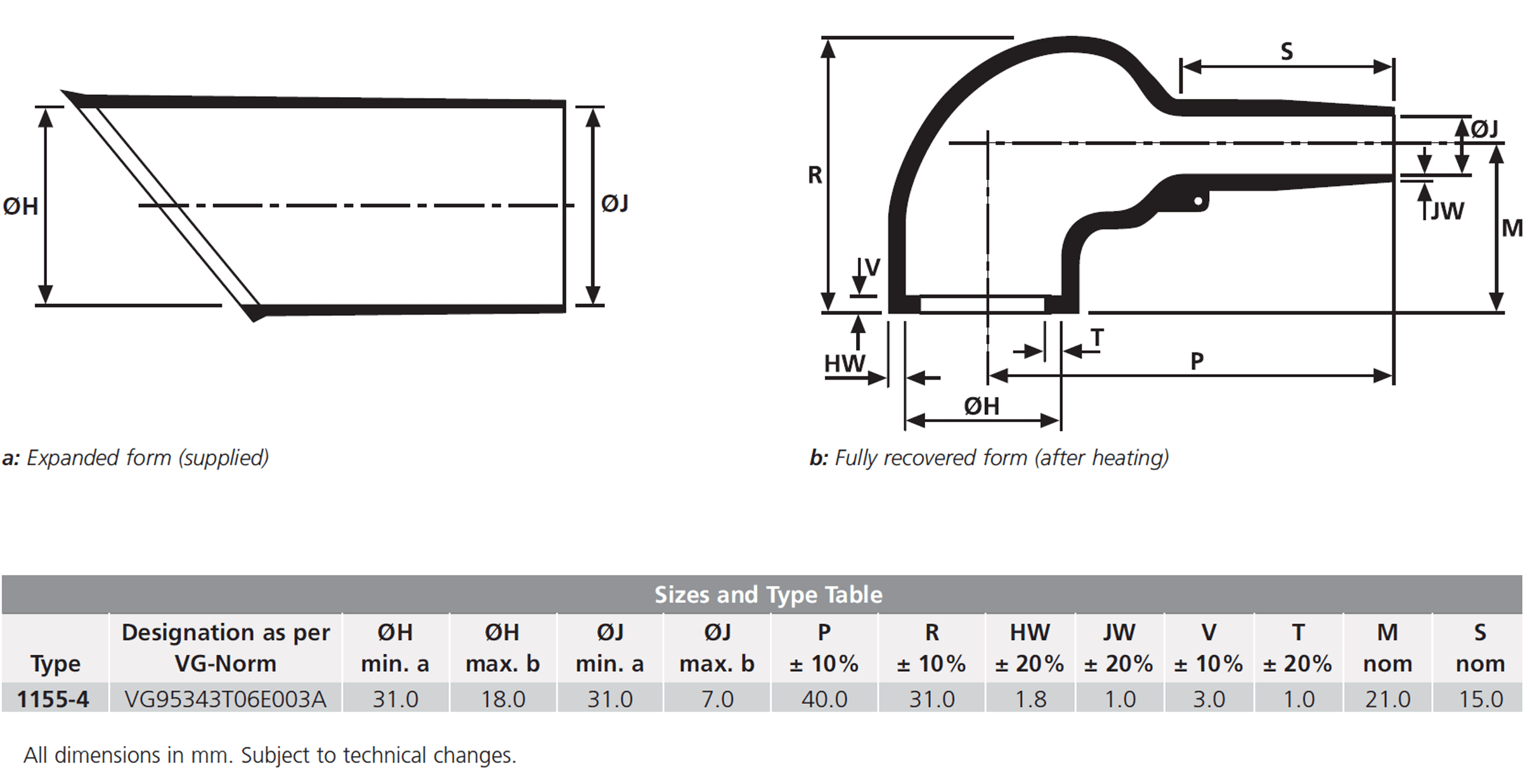

Product Dimensions
Additional Product Information
| Feature | Specification |
| Material | Fluid resistant elastomer |
| Continuous Operating Temperature °C | -75 to +150 |
| Minimum Shrink Temperature °C | +135 |
| Tensile Strength (MPa) | 15 |
| Characteristics | Excellent resistance to fuels |
| Typical Applications | Military and general high performance harnessing |
| Raychem Equivalent | 222K142 |
