Description
Hellermann 153-42-G Moulded Straight Boot With Lip
HellermannTyton, Helashrink 150 series bottle shape, straight boot with rib - non glued
This style provides connector cable strain relief and environmental sealing. Use in conjunction with circular grooved adaptors.
Application
Heat shrinkable moulded shape for use in electrical and electronic cable harness applications. Ideal for use on junctions in looms. Correct size for 6, 8 and 12 way DTM connectors.

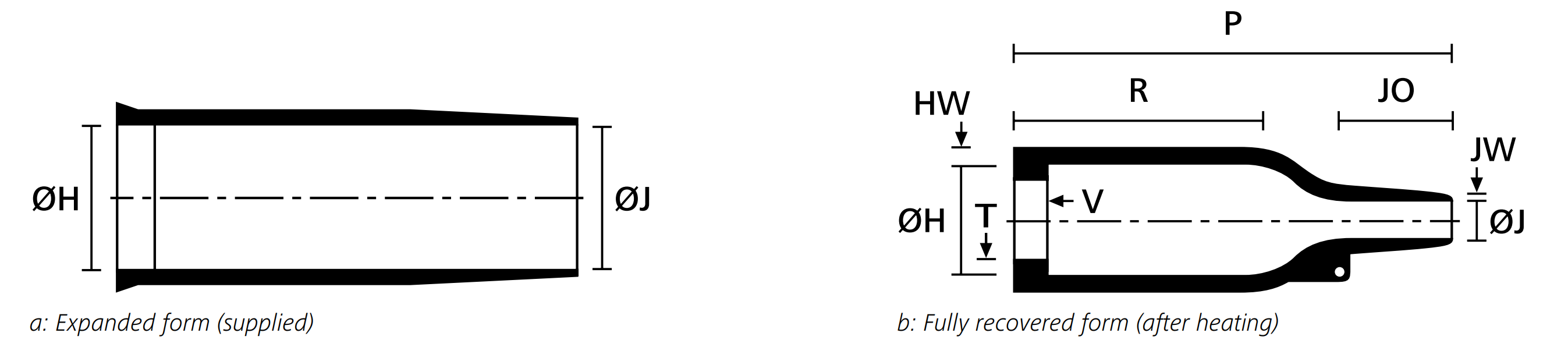

Product Dimensions
|
ØH
min. a
|
ØH
max. b
|
ØJ
min. a
|
ØJ
max. b
|
P
+/- 10%
|
R
max.
|
JO
+/- 10%
|
HW
+/- 20%
|
JW
+/- 20%
|
V
+/- 10%
|
T
+/- 20%
|
| 25 | 14 | 9 | 3.5 | 55 | 28 | 16 | 1.8 | 0.5 | 3 | 1 |
Note: all dimensions are in millimeters (mm)
Additional Product Information
Note that this boot is not pre-glued. Glue such as Resintech RT125 is recommended.
|
Feature
|
Specification
|
| Material | Fluid resistant elastomer |
| Continuous Operating Temperature °C | -75 to +150 |
| Minimum Shrink Temperature °C | +135 |
| Tensile Strength (MPa) | 15 |
| Characteristics | Excellent resistance to fuels |
| Typical Applications | Military and general high performance harnessing |
| Raychem Equivalent | 202K232 |
