Description
Hellermann 104-1-G Straight Boot Without Lip
HellermannTyton, Helashrink 100 series bottle shape, straight boot without lip - non glued
This style provides connector cable strain relief. Can be installed on the connector rear thread or plain shaft and allows easy re-entry for repair when combined with a hot melt adhesive.
Application
Heat shrinkable moulded shape for use in electrical and electronic cable harness applications. Ideal for use on junctions in looms.

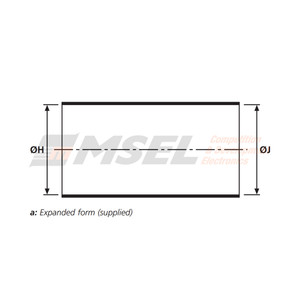

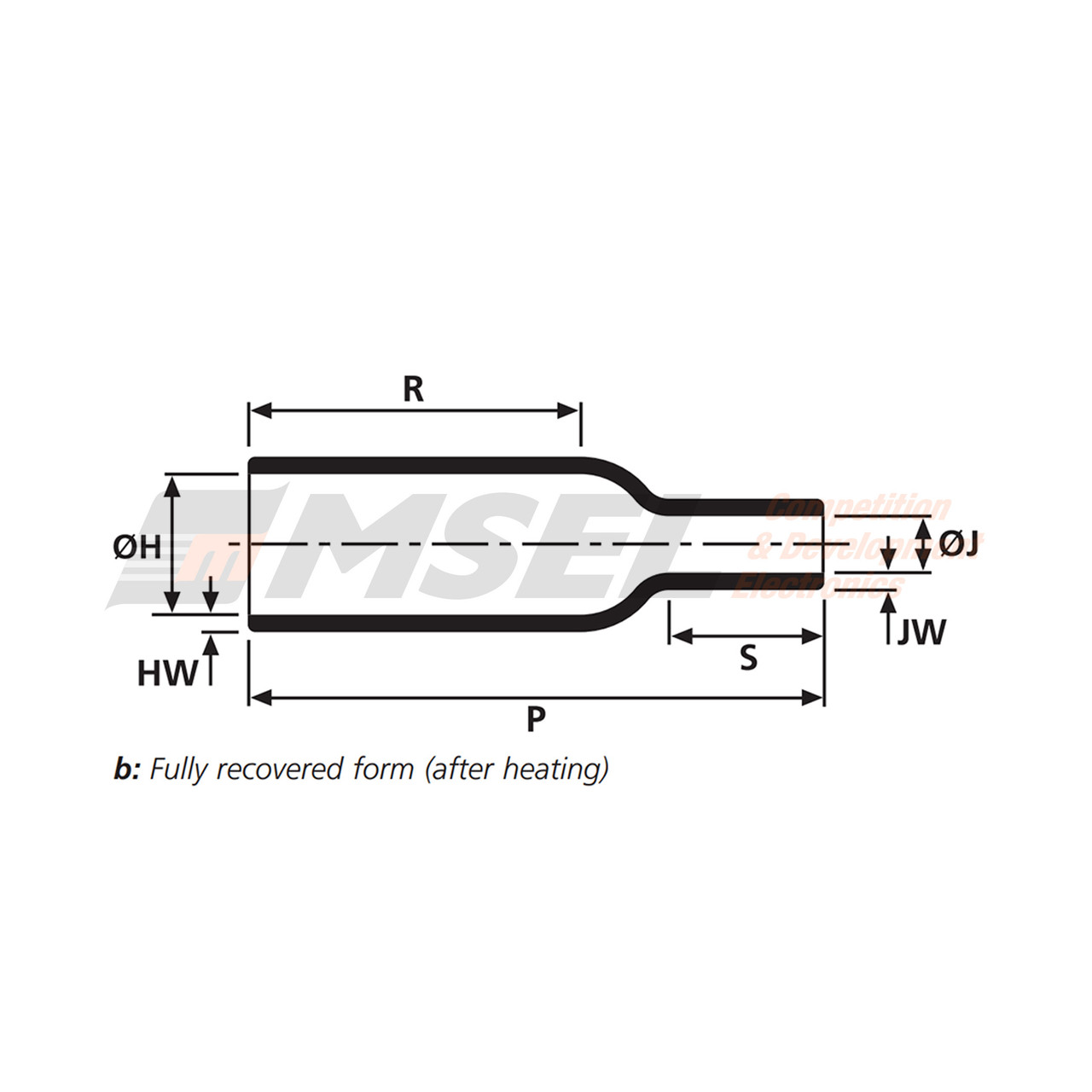

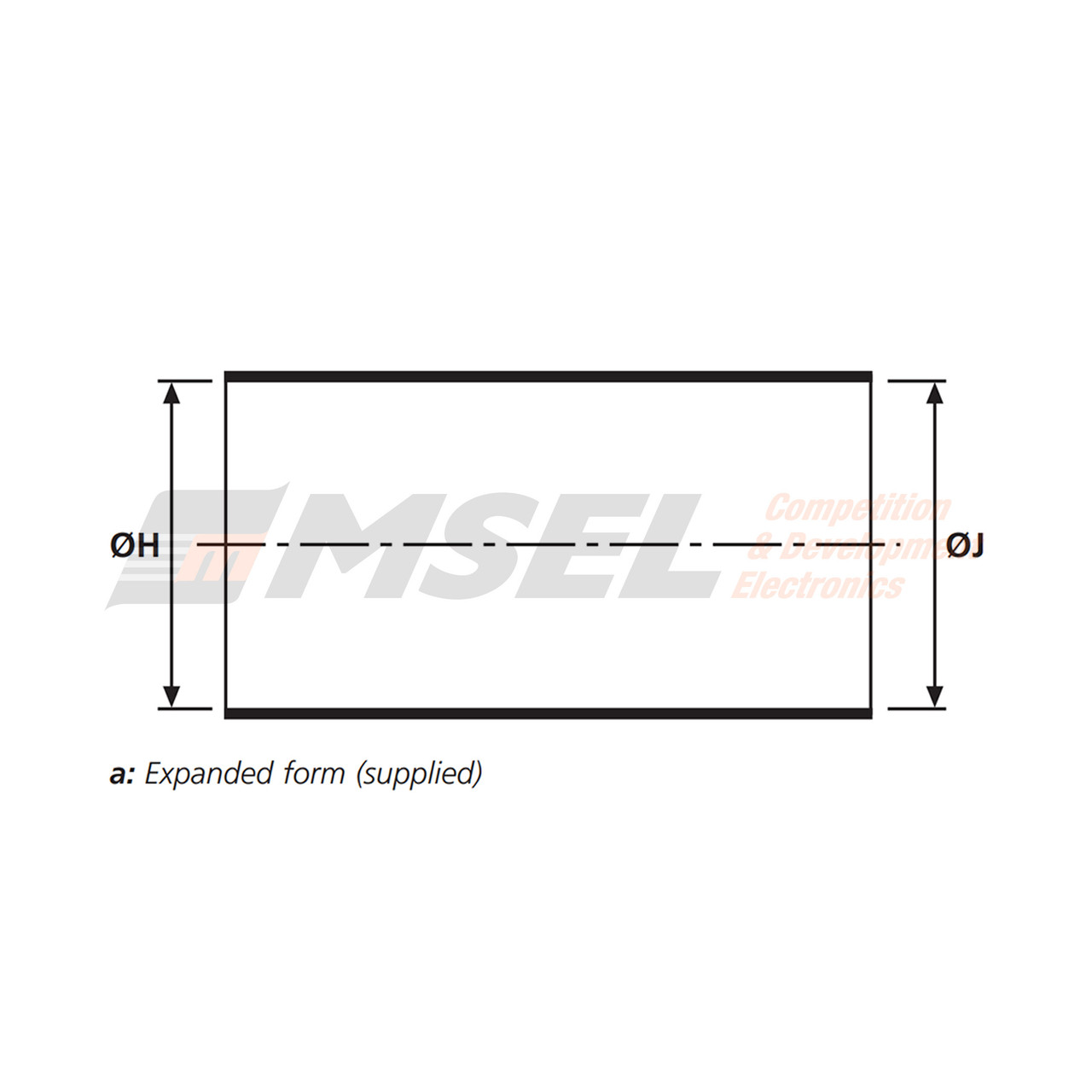

Product Dimensions
| ØH min. a | ØH max. b | ØJ min. a | ØJ max. b | P +/- 10% | R max. | HW +/- 20% | JW +/- 30% | S nom |
| 16.5 | 7.9 | 16.5 | 3.8 | 25.4 | 14.2 | 1.3 | 1.3 | 6.9 |
Note: all dimensions are in millimeters (mm)
Additional Product Information
Note that this boot is not pre-glued. Glue such as Resintech RT125 is recommended.
| Feature | Specification |
| Material | Polyolefin, cross-linked (PO-X) |
| Continuous Operating Temperature °C | -75 to +150 |
| Minimum Shrink Temperature °C | +135 |
| Tensile Strength (MPa) | 15 |
| Characteristics | Excellent resistance to fuels |
| Typical Applications | Military and general high performance harnessing |
| Raychem Equivalent | 202A111 |
