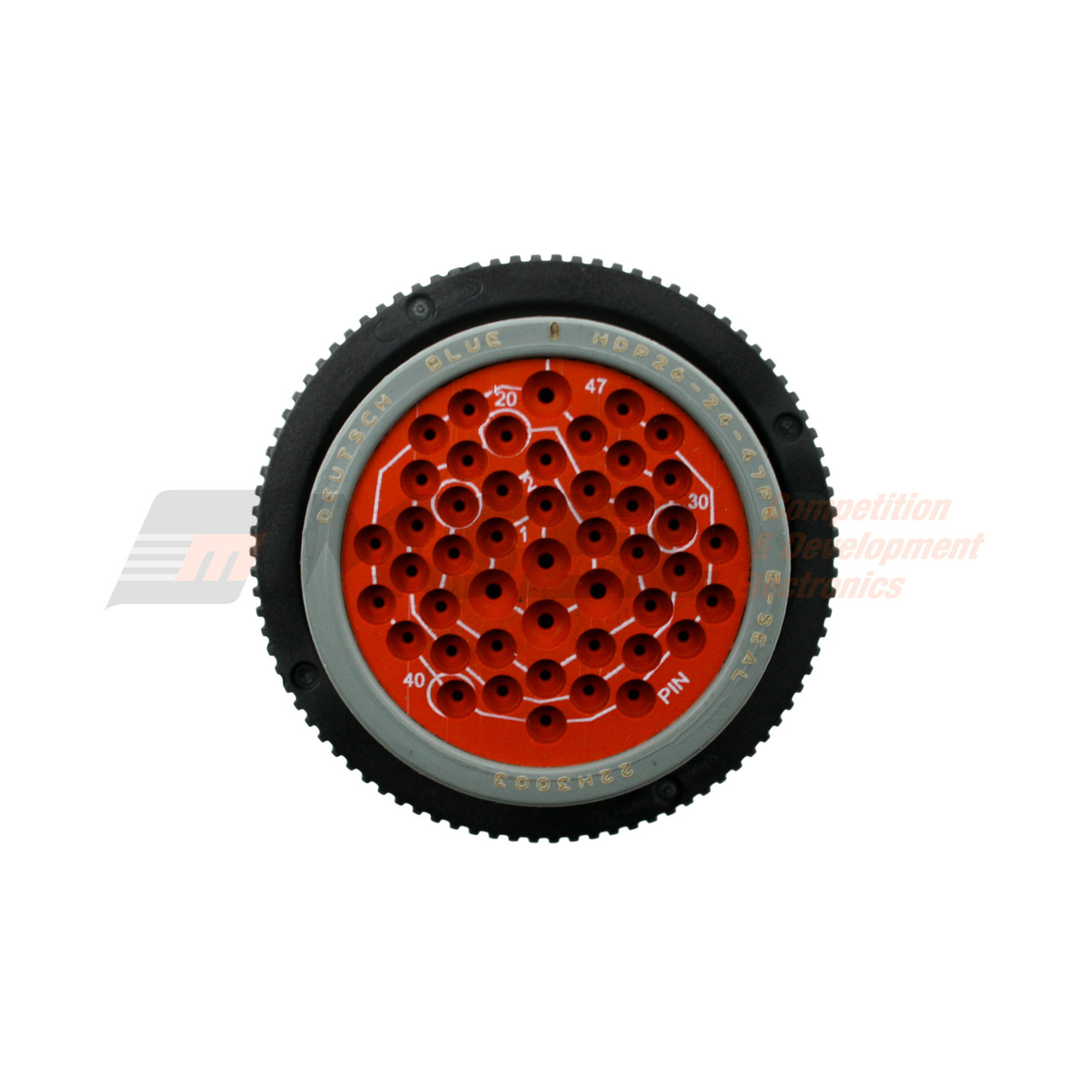

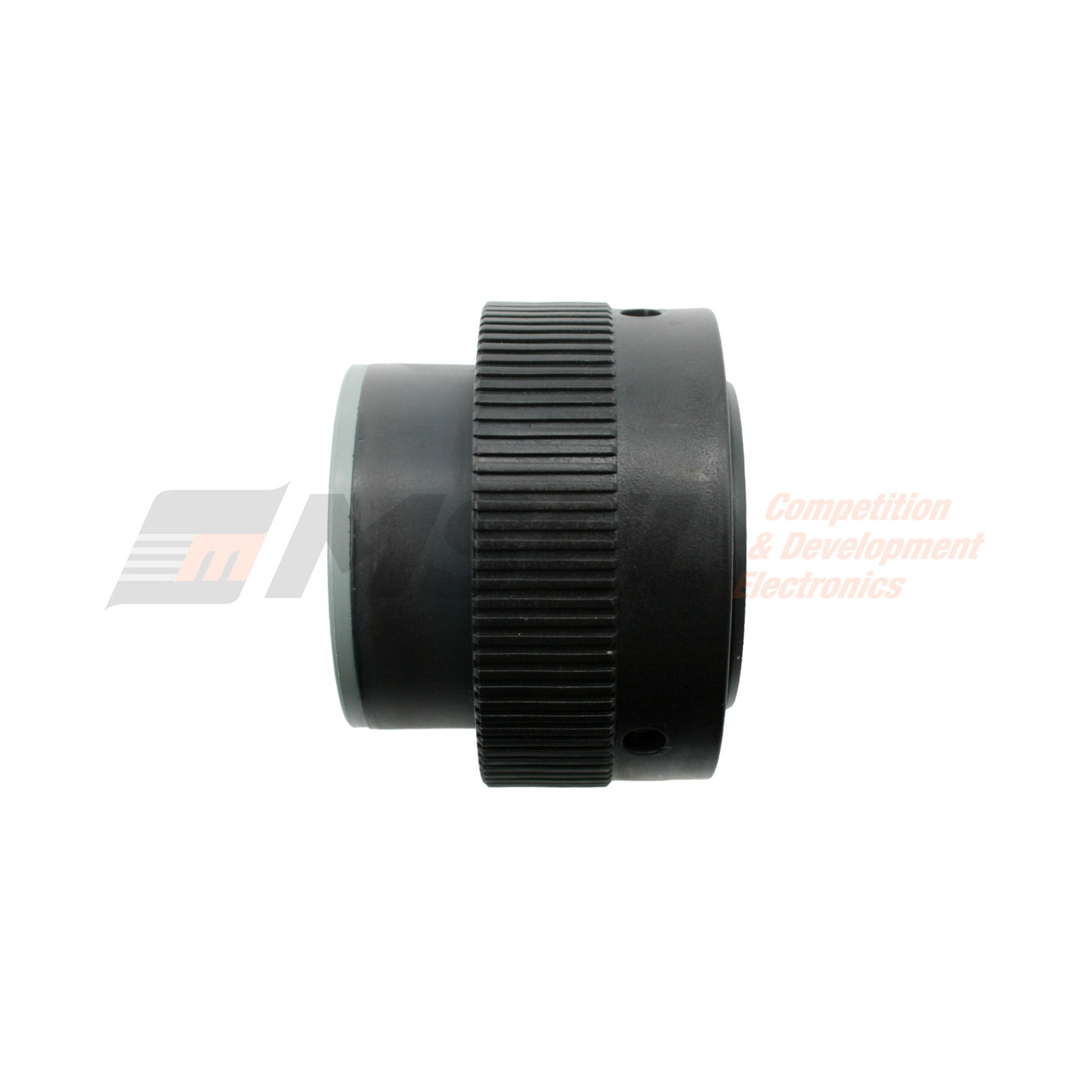

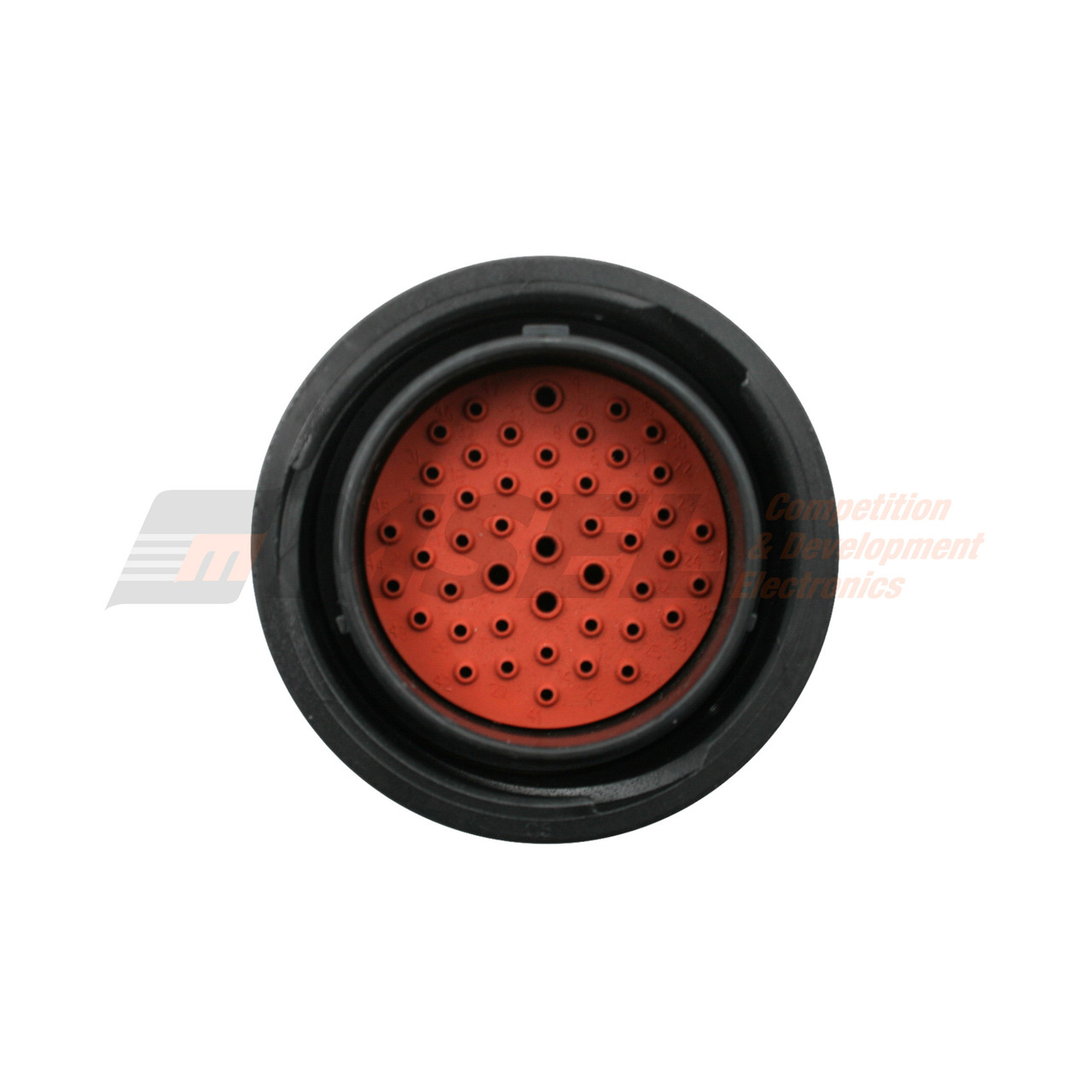

Deutsch HDP20 47-Way Mixed Plug Connector Kit with Pins
SKU: CONHDP262447PK
Deutsch HDP20 47-Way Mixed Plug Connector Kit with Pins
SKU: CONHDP262447PK
Summary:
IP68-rated composite HDP20 shell, size 24, holds 47 mixed-size pins. Uses the same pin contacts as Deutsch DT and DTM connectors for compatibility. Includes 5 size 16 pins and 42 size 20 pins in one kit.
Excl. GST (Incl. GST)
$77.39 ($89.00)
Buy in Bulk and Save!
Description:
Deutsch HDP20 47-Way Mixed Plug Connector Kit with Pins
Deutsch HDP20 size 24 mixed plug with 5 size 16 pins and 42 size 20 pins, for mating with the matching 47-way bulkhead receptacle.
Specifications
- Shell size: 24
- Pin configuration: 5x size 16, 42x size 20
- Diameter: 38.63mm (A), 49.53mm (B)
- Coupling: bayonet quick-release
- Shell material: heavy-duty, chemical-resistant IP68 composite
HD and HDP series connectors use the same contacts as the DT and DTM series, and are a lower-cost alternative to the Autosport range of connectors for passing looms through a bulkhead, such as an engine bay.
Kit Includes
- 1x Deutsch HDP20 47-way mixed plug, size 24 shell
- 5x size 16 pins
- 42x size 20 pins
- 1x insert/removal tool for size 16 terminals
- 1x insert/removal tool for size 20 terminals
