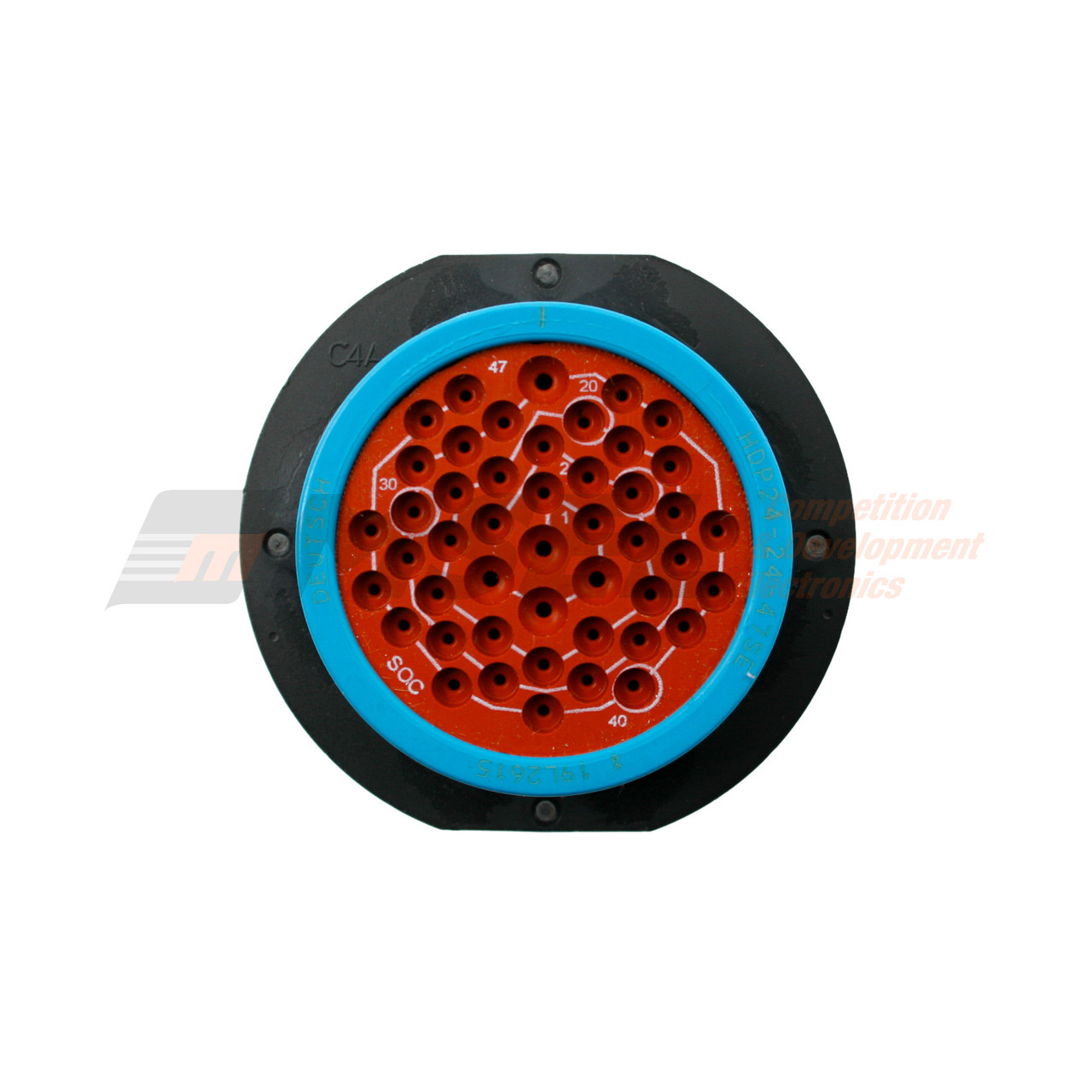

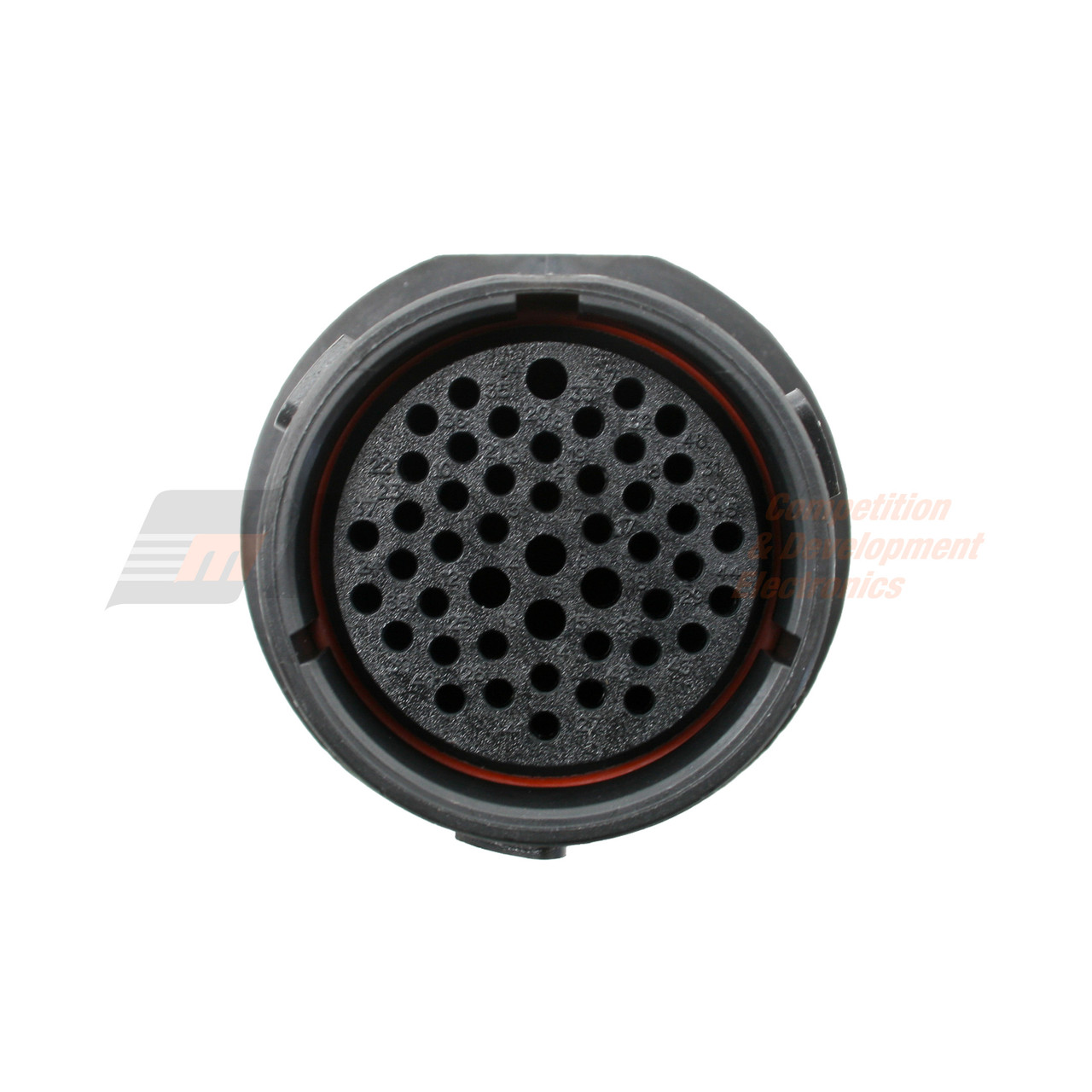

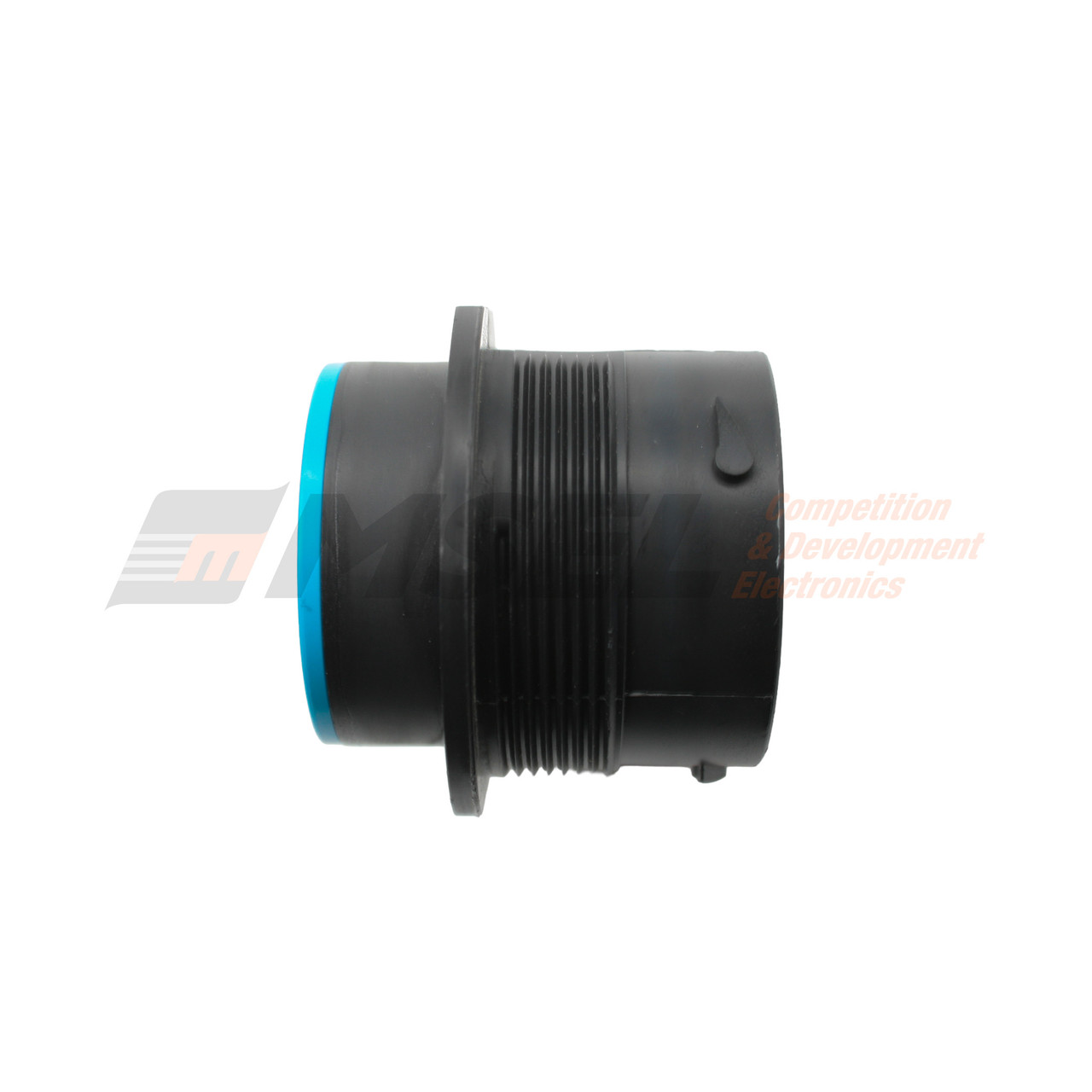

Deutsch HDP20 47-Way Bulkhead Connector Kit with Sockets

Deutsch HDP20 size 24 bulkhead receptacle with 5 size 16 sockets and 42 size 20 sockets, for mating with the matching 47-way plug.

Specifications

• Shell size: 24
• Socket configuration: 5x size 16, 42x size 20

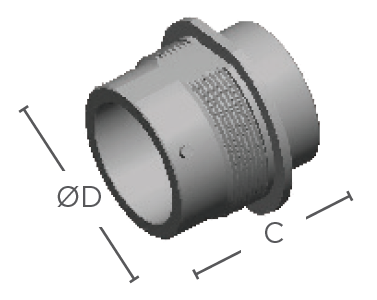

• Diameter: 41.86mm (C), 50.80mm (D)
• Coupling: bayonet quick-release
• Shell material: heavy-duty, chemical-resistant IP68 composite

HD and HDP series connectors use the same contacts as the DT and DTM series, and are a lower-cost alternative to the Autosport range of connectors for passing looms through a bulkhead, such as an engine bay.

Kit Includes

• 1x Deutsch HDP20 47-way bulkhead receptacle, size 24 shell
• 5x size 16 sockets
• 42x size 20 sockets
• 1x nut
• 1x locking washer
• 1x insert/removal tool for size 16 terminals
• 1x insert/removal tool for size 20 terminals
