Description

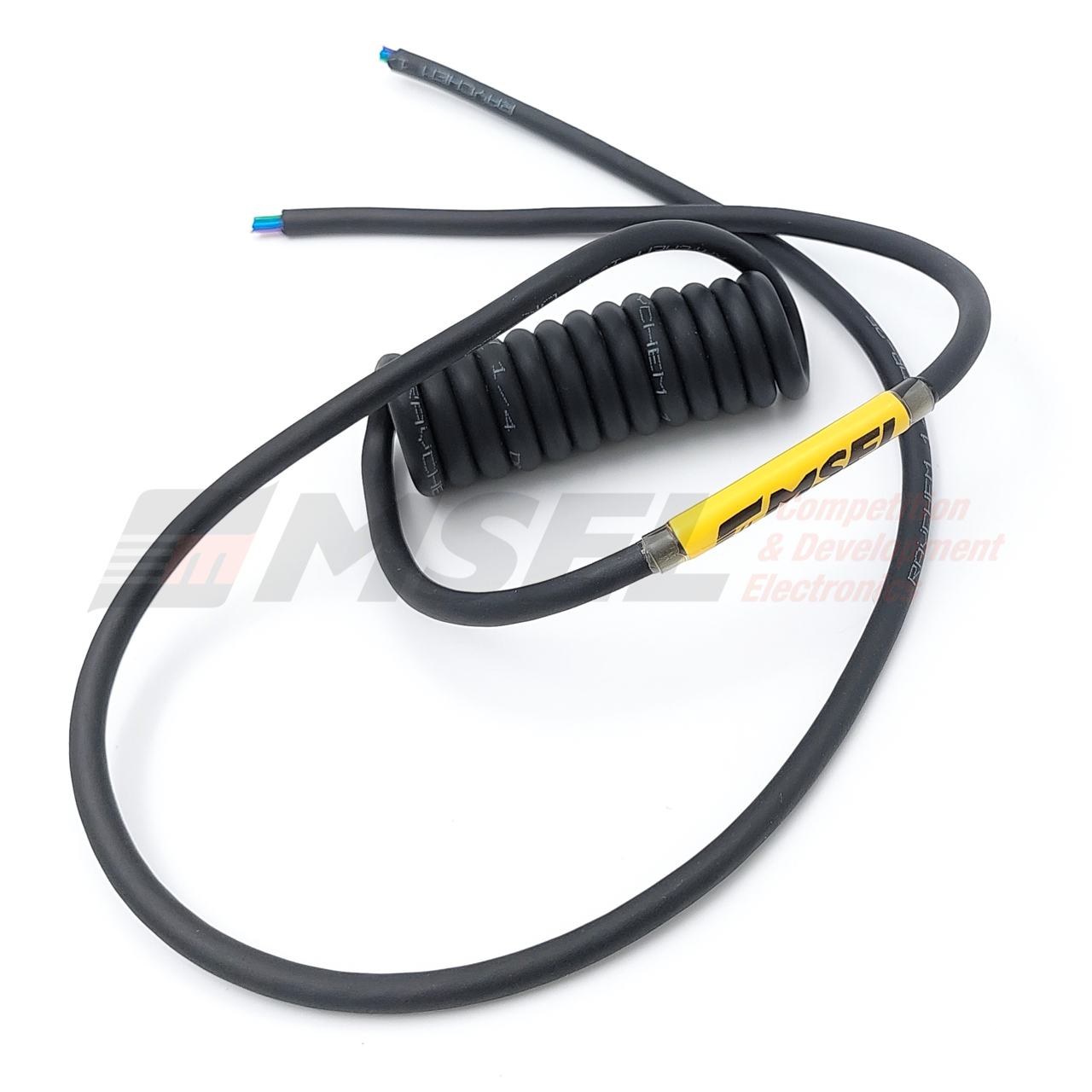

Standard curly cord for connecting removable / moving devices such as steering wheels. Suits low current applications such as buttons, paddles and rotary control switches.
Constructed using M22759/32-22 wire and sheathed in Raychem DR-25, these cords are designed for use in motorsport.
Specifications

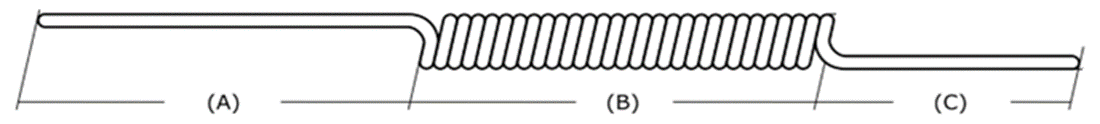

| A | B natural | B moderately stretched | C |
| 500 | 70 | 360 | 300 |
Note: all dimensions are in millimeters (mm)
Length 'A' is intended to be long enough to reach the buttons on the steering wheel without requiring splices to make the wires long enough.
| Feature | Specification |
| Cord Diameter | 5.4mm |
| External Diameter of Relaxed Coil | 24mm |
| Number of Wires | 7 |
| Colours | Brown, Green, Violet, Yellow, Blue, Orange, Grey |
| Wire Size | 22AWG |
Please note that as these cords are hand made, there may be a slight variation in dimensions.
MSEL can make mil spec custom length and a number of conductor curly cords, contact us for custom specifications.
Accessories (not included)
For Carbon Fibre Steering Wheel Button Plate – Small click here.
For Carbon Fibre Steering Wheel Button Plate – Large click here.
For Otto P9 Sealed IP68 Push Button Switch click here.
For MSEL 2-10 Position Rotary Switch with Right Angle Boot click here.
For MSEL 2-10 Position Rotary Switch with Straight Boot click here.
