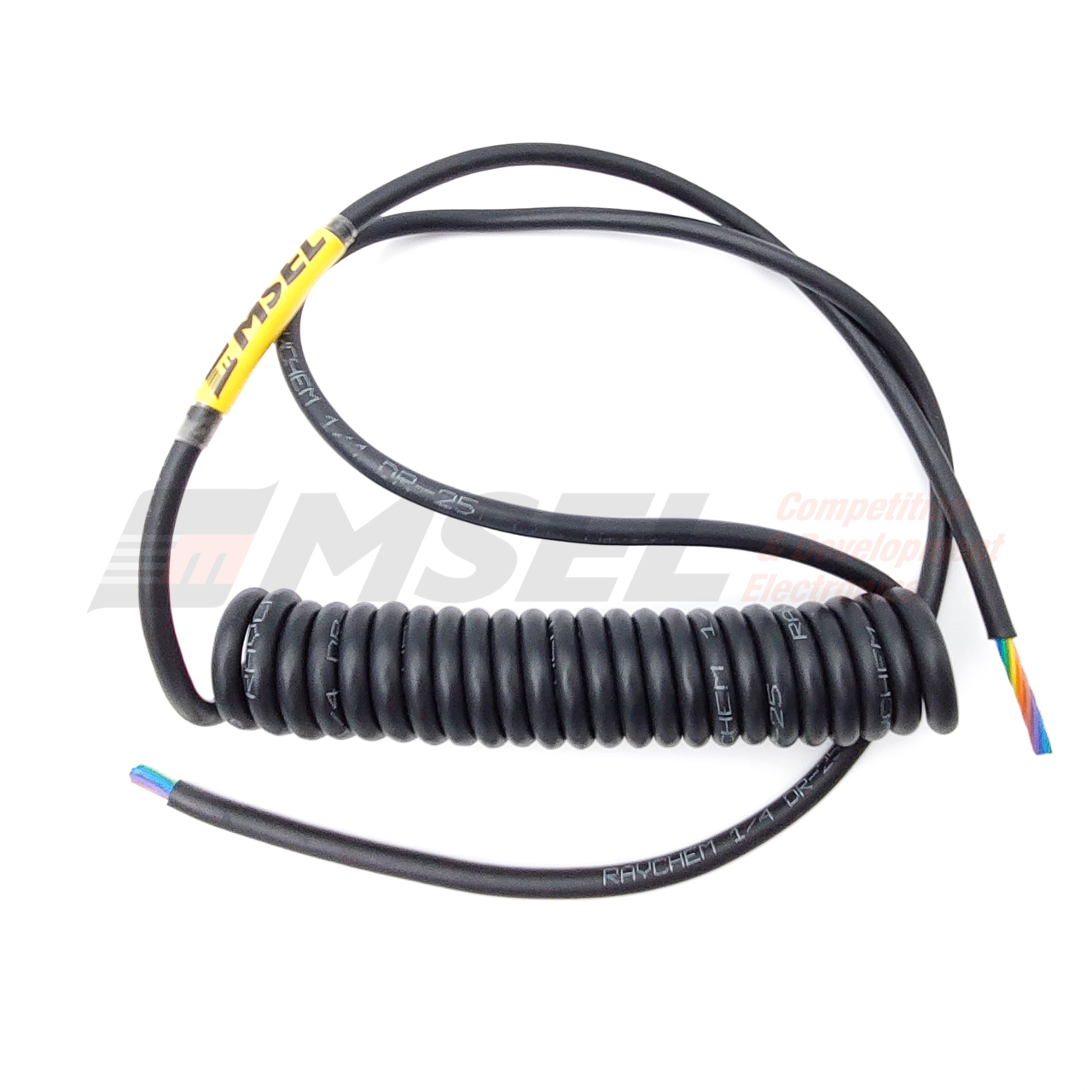

Curly Cord 7 Core 22AWG Long Premade

SKU:
CABCUR7L
Quantity Unit Price (Inc GST)
3 + $152.10 ($174.91)
Per Unit
$169.00 ($194.35) Excl. GST (Incl. GST)
Unit of Measure:
each
Purchase Increment:
1
Minimum Purchase:
1 unit
We ship worldwide at competitive pricing.
Shipping calculated at checkout.

Description

Standard curly cord for connecting removable / moving devices such as steering wheels. Suits low current applications such as buttons, paddles and rotary control switches.

Constructed using M22759/32-22 wire and sheathed in Raychem DR-25, these cords are designed for use in motorsport.



Specifications

A B natural B moderately stretched C
500 130 650 300

Note: all dimensions are in millimeters (mm)

Length 'A' is intended to be long enough to reach the buttons on the steering wheel without requiring splices to make the wires long enough.

Feature Specification
 Cord Diameter  5.4mm
 External Diameter of Relaxed Coil  24mm
 Number of Wires  7
 Wire Colours  Brown, Green, Violet, Yellow, Blue, Orange, Grey
 Wire Size  22AWG

Please note that as these cords are hand made, there may be a slight variation in dimensions.

MSEL can make custom mil-spec length curly cords, contact us for custom specifications.



Accessories (not included)

For Carbon Fibre Steering Wheel Button Plate – Small click here.

For Carbon Fibre Steering Wheel Button Plate – Large click here.

For Otto P9 Sealed IP68 Push Button Switch click here.

For MSEL 2-10 Position Rotary Switch with Right Angle Boot click here.

For MSEL 2-10 Position Rotary Switch with Straight Boot click here.
