Description

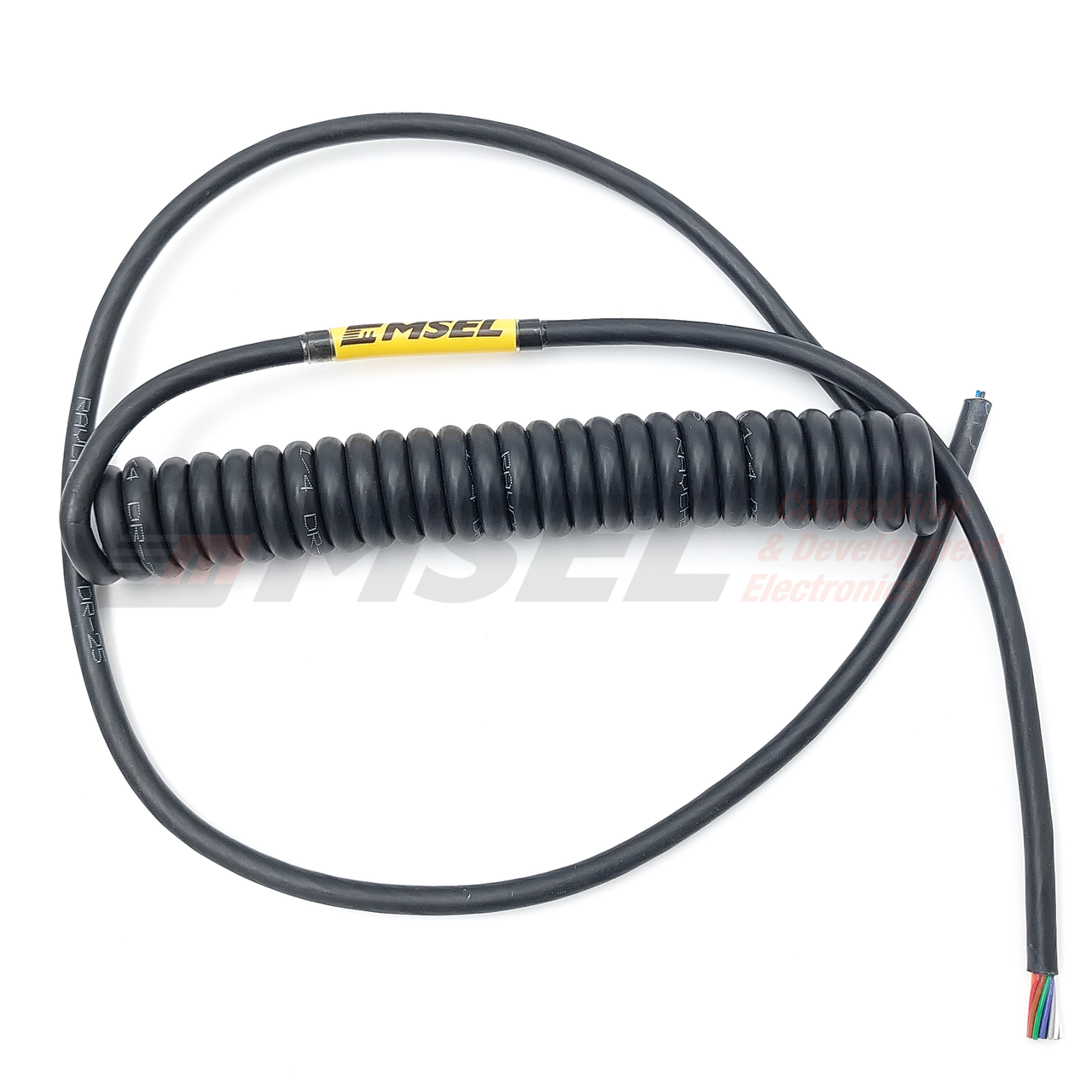

Standard curly cord for connecting removable / moving devices such as steering wheels. Suits low current applications such as buttons, paddles and rotary control switches.
Constructed using M22759/32-24 wire and sheathed in Raychem DR-25, these cords are designed for use in motorsport.
Specifications
| A approx. | B natural approx. | B moderately stretched approx. | C approx. |
| 500 | 160 | 530 | 300 |
Note: all dimensions are in millimeters (mm)
Length 'A' is intended to be long enough to reach the buttons on the steering wheel without requiring splices to make the wires long enough.
| Feature | Specification |
| Cord Diameter | 5.4mm |
| External Diameter of Relaxed Coil approx. | 24mm |
| Number of Wires | 14 |
| Wire Colours | Brown, 2 x Black, Orange, Red, Green, Violet, Yellow, 2 x Blue, Orange, Grey, White, White/Black, White/Red |
| Wire Size | 24AWG |
Please note that as these cords are hand made, there may be a slight variation in dimensions.
MSEL can make custom mil-spec length curly cords, contact us for custom specifications.
