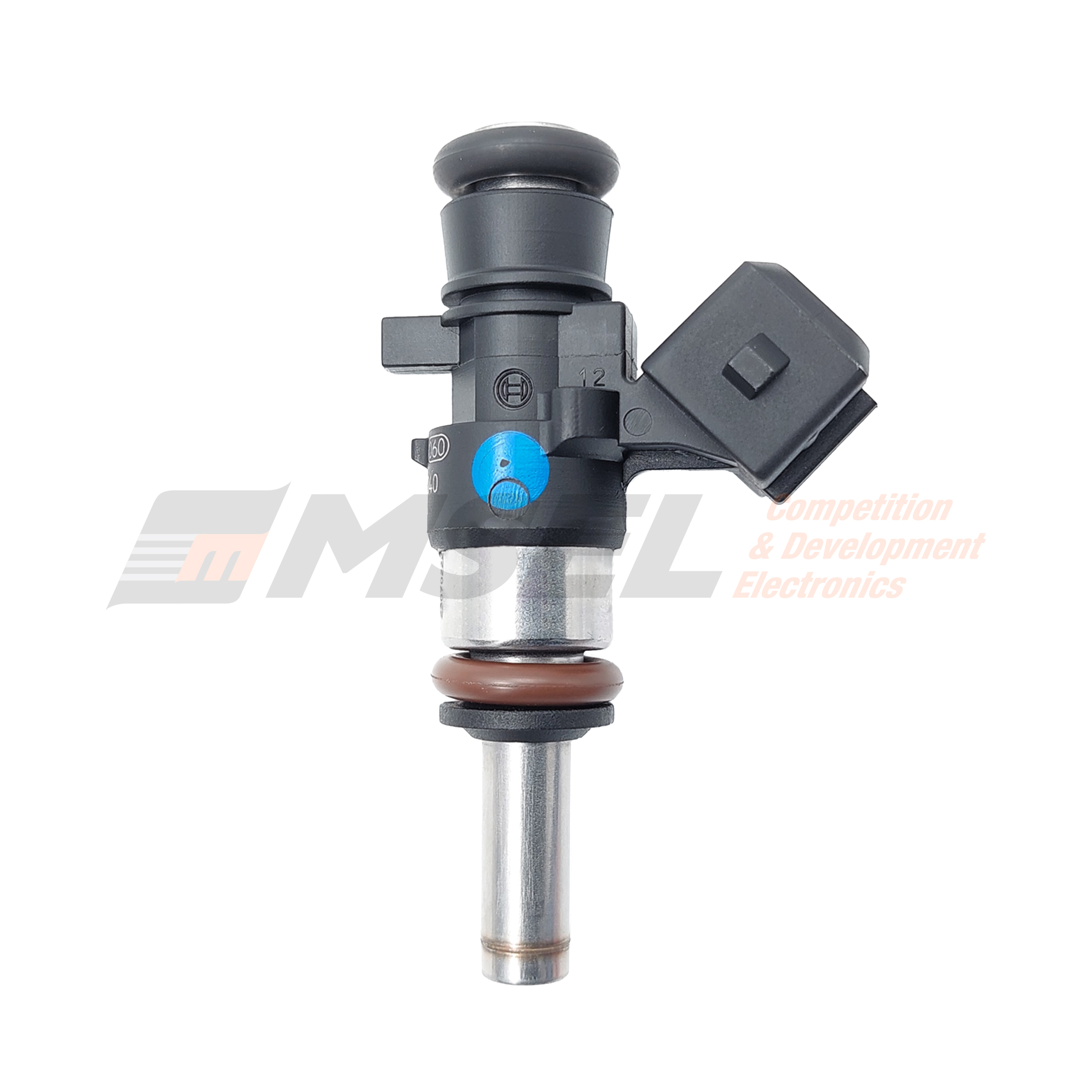

Bosch 1000cc High Resistance Long Nose Stubby Fuel Injector

Bosch 1000cc long nose unmodified fuel injector

Dynamically flow tested in New Zealand by us, Motorsport Electronics (MSEL), so that your set of injectors is flow matched within 1% across the entire set.

• 1000cc/min at 3 bar (43.5psi)
• Suitable for use with ethanol, methanol as well as most oil based fuels
• Modern design offering extremely good idle control
• Full injector deadtime/battery compensation information is supplied with each set of injectors
• High impedance (high resistance) so no need to add ballast resistors on some ECUs
• Can be supplied with lower adaptors to fit most 14mm lower o-ring applications
• Unmodified Bosch injector
• Multi-hole spray pattern
• Common replacement for EVO X Injectors
• Also referred to as Bosch 980cc (at 3-bar) or 1150cc (at 4-bar)
• Some companies market these as a Bosch Motorsport fuel injector

Deadtime / battery compensation information supplied with each set of fuel injectors

Please note that non-standard injector length options are not available.  Variations of injector caps will create 3/4 length and traditional full length injectors.

Xspurt injector setup information is available for the following ECUs and reflashing software.
