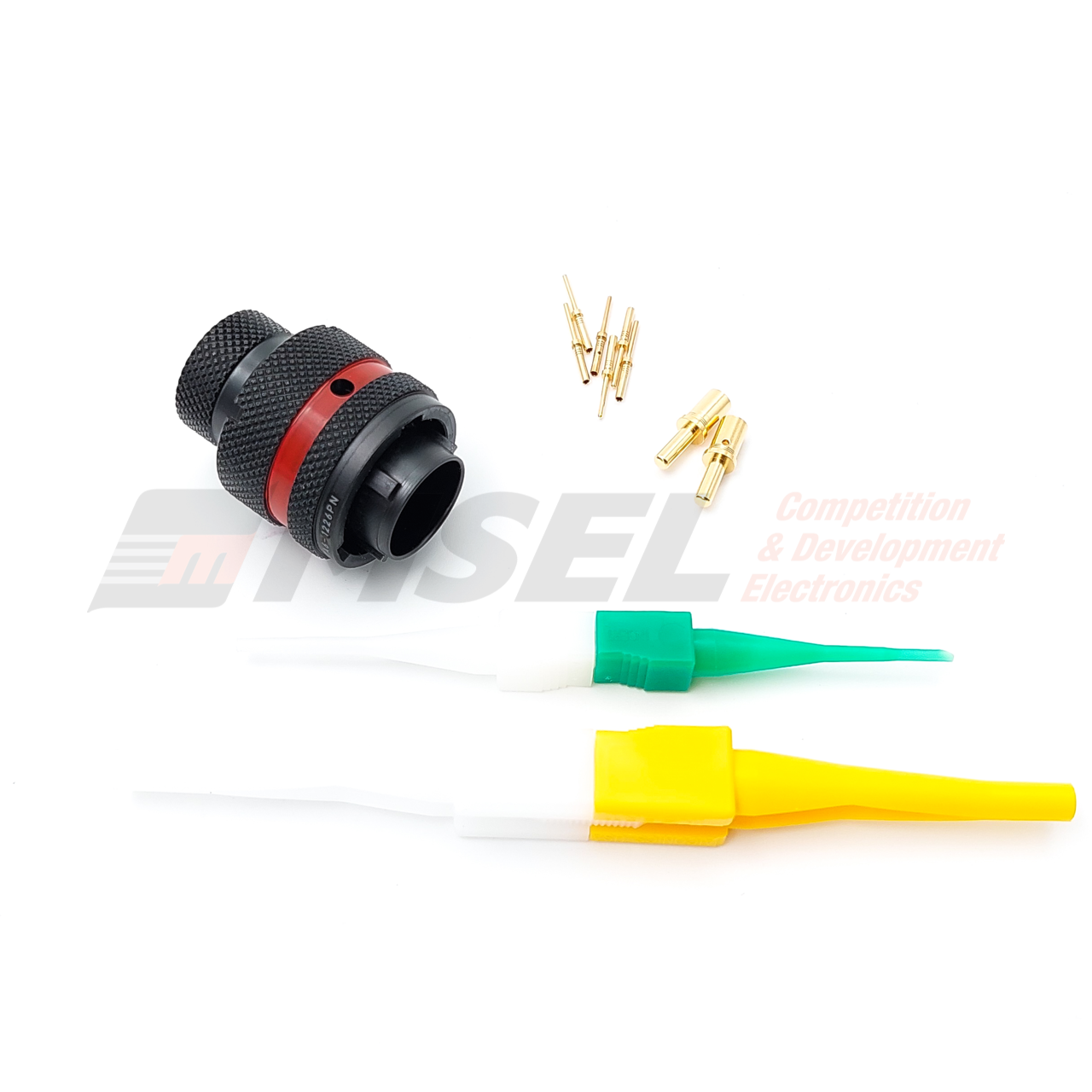

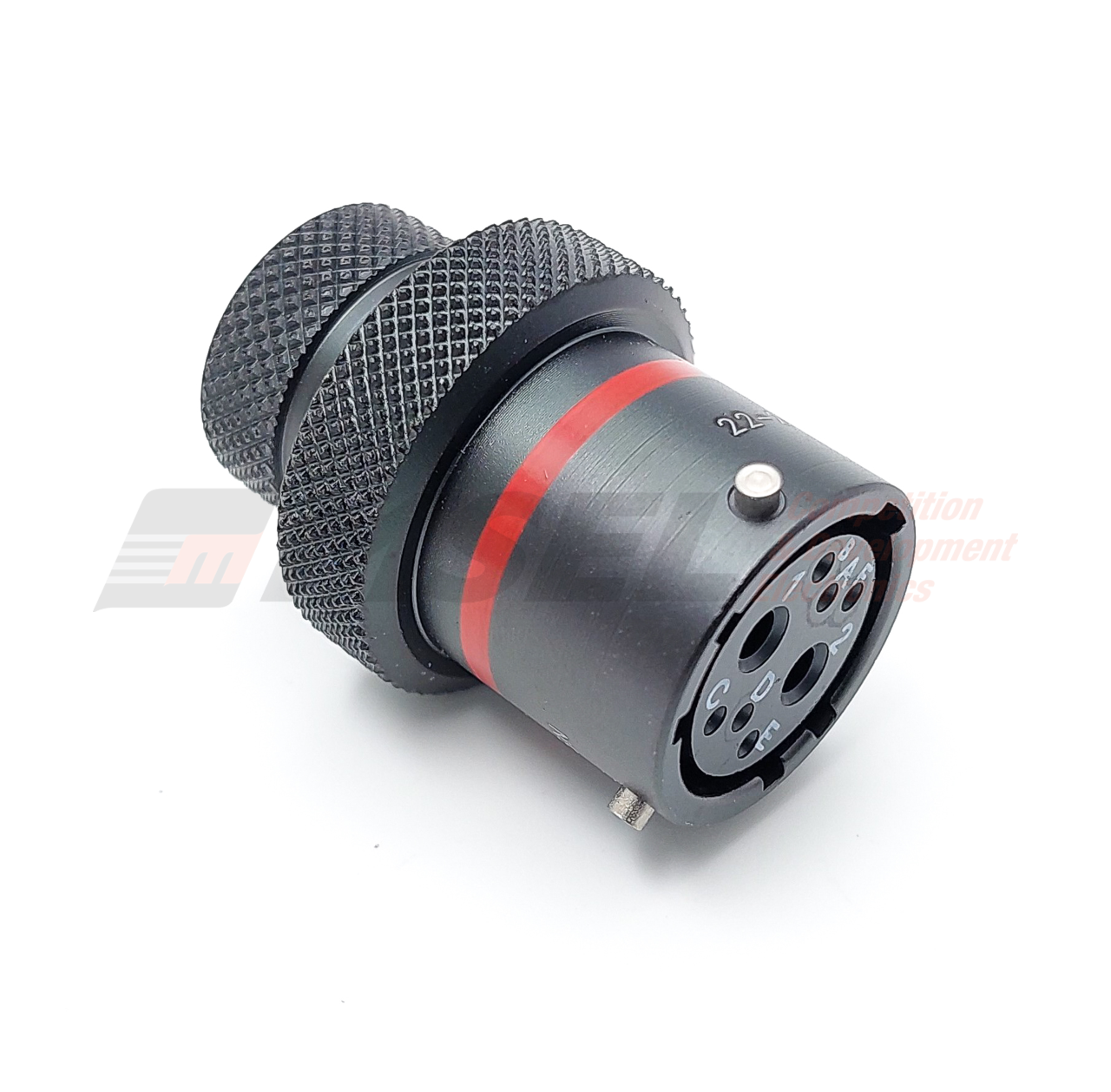

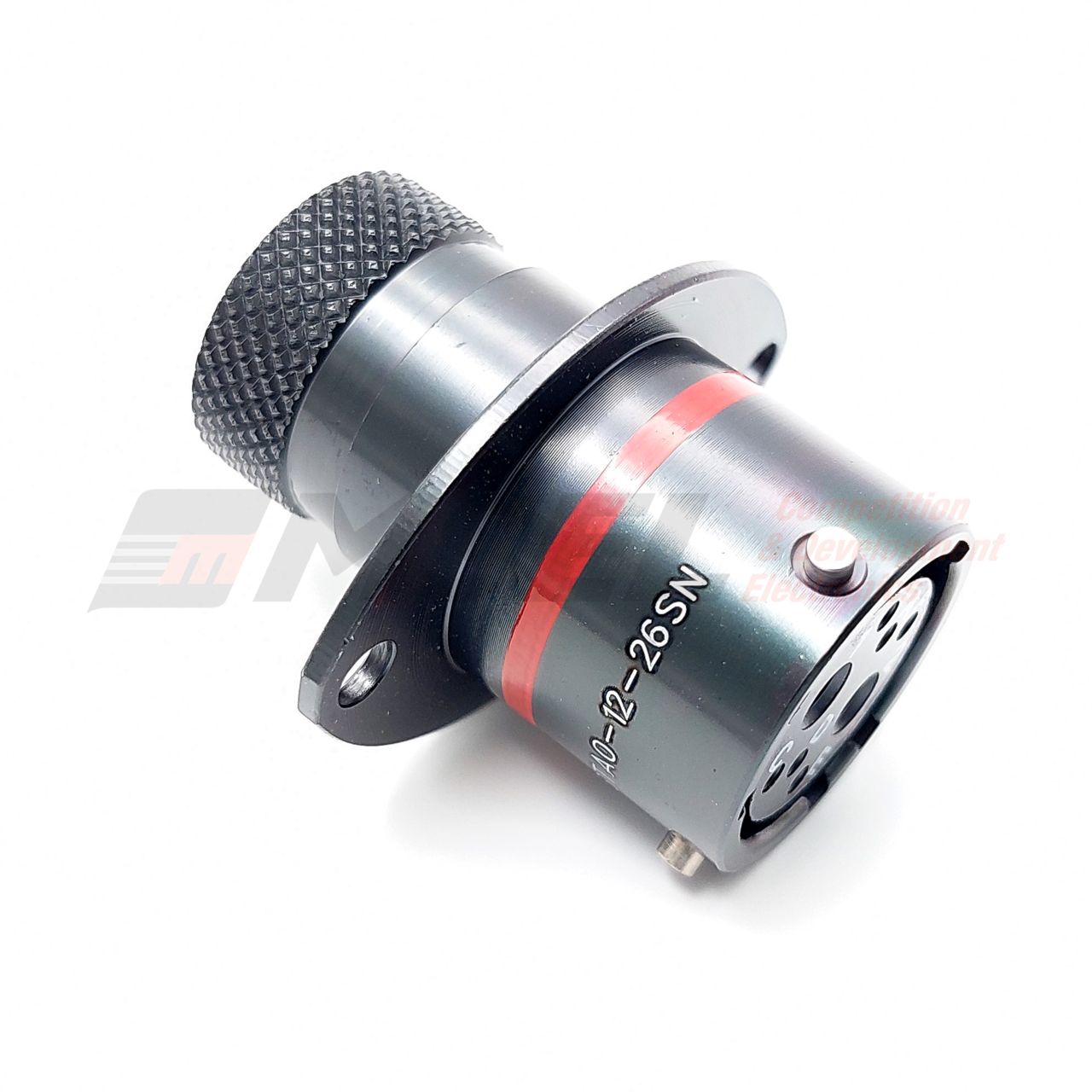

Autosport 8-Way Mixed Bulkhead Connector with 6x size 22 & 2x size 12 Sockets - Red

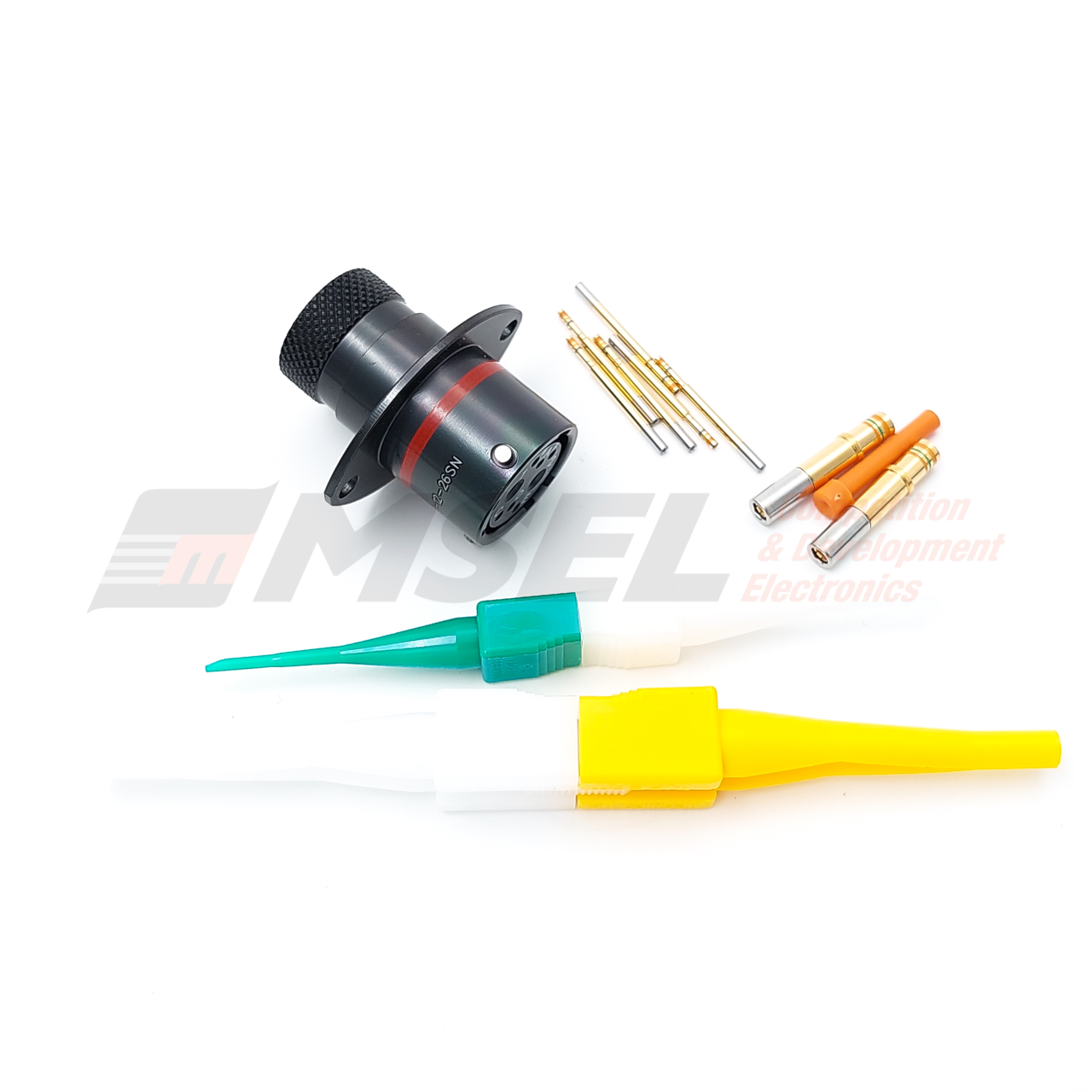

Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 01226SN | |
| Connector Type | Bulkhead Connector | |
| Shell Size | 12 | |
| Orientation | Red (N) | Will only mate with red connectors |

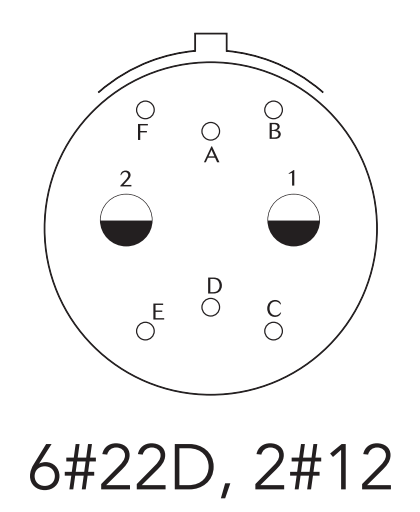

| Number of Contacts | 8 | 6 size 22 contacts and 2 size 12 contacts |
| Contact Size | 6x 22 2x 12 | Supports 26 to 22AWG wire Supports 14 to 12AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 6: 5 Amps 2: 23 Amps | |
| Locator | size 22: TOOLOCK40 | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool |
| A max. | B | ØC | ØD | E | F | G max. | H max. | P max. | ØJ | K | ØL |
| 24.00 | 29.10 | 3.20 | 19.05 | 17.21 | 16.05 | 33.50 | 35.20 | 3.00 | 21.90 | 29.10 | 3.60 |
Note: all dimensions are in millimeters (mm)
