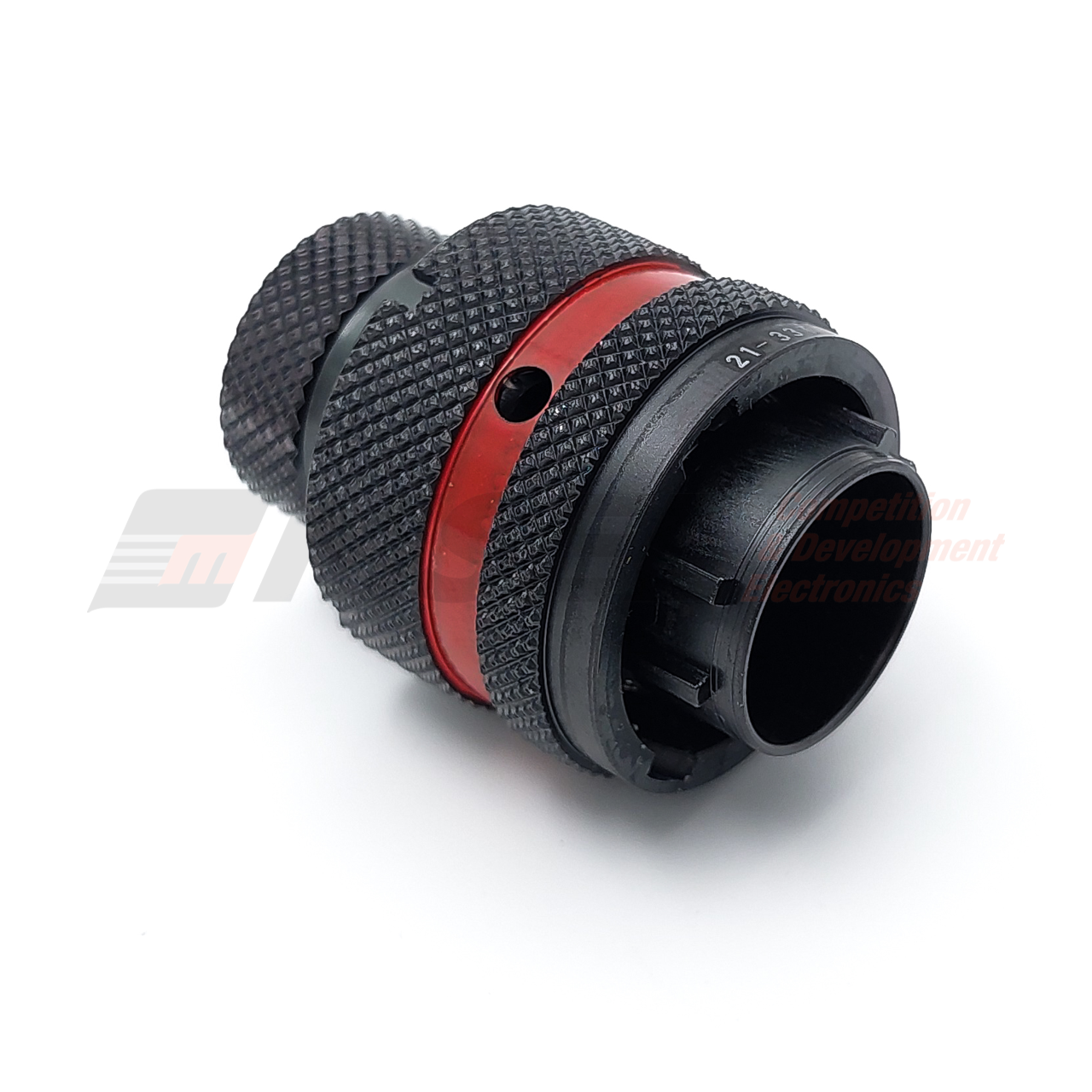

Autosport 8-Way Mixed Plug Connector with 6x size 22 & 2x size 12 Pins - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 61226SN | |
| Connector Type | Plug | |
| Shell Size | 12 | |
| Orientation | Red (N) | Will only mate with red connectors |

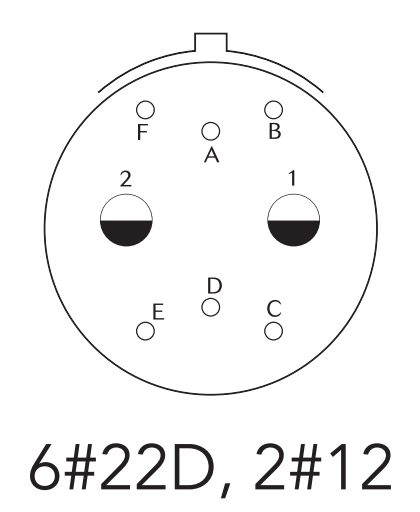

| Number of Contacts | 8 | 6 size 22 contacts and 2 size 12 contacts |
| Contact Size | 6x 22 2x 12 | Supports 26 to 22AWG wire Supports 14 to 12AWG wire |
| Contact Type | Pin | Male |
| Current Rating | 6: 5 Amps 2: 23 Amps | |
| Locator | size 22 contact: TOOLOCK42 | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool |
| ØA max. | B max. |
| 25.10 | 18.55 |
Note: all dimensions are in millimeters (mm)
