Description

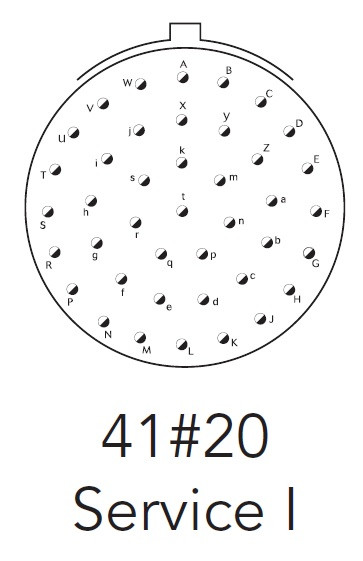

Autosport 41-Way Bulkhead Connector with size 20 Sockets - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 02041SN | |
| Connector Type | Oval flange receptacle | Bulkhead mounting |
| Shell Size | 20 | |
| Orientation | Red (N) | Will only mate with red connectors |
| Number of Contacts | 41 | |
| Contact Size | 20 | Supports 24 to 20AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 7.5 Amps | |
| Termination Type | Crimp | |
| Locator | TOOAF8TH1A | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool |
| A max. | B | ØC | ØD | E | F | G max. | H max. | P max. | ØJ | K | ØL |
| 37.00 | 41.60 | 3.20 | 31.75 | 17.21 | 16.05 | 33.50 | 47.90 | 3.00 | 34.60 | 41.60 | 3.60 |
Note: all dimensions are in millimeters (mm)
