Autosport 41-Way Plug Connector with size 20 Pins - Red
SKU: CONAS62041PN
Autosport 41-Way Plug Connector with size 20 Pins - Red
SKU: CONAS62041PN
Summary:
Autosport 41-way plug connector with Size 20 pin contacts, red keyway. Crimp terminated, supports 24 to 20 AWG wire, using the TOOAF8TH1A locator. Mates with the CONAS02041SN bulkhead receptacle, same shell size and keyway.
Excl. GST (Incl. GST)
$225.90 ($259.78)
Buy in Bulk and Save!
Description:
Autosport 41-Way Plug Connector size 20 Pins - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 62041PN | |
| Connector Type | Plug | |
| Shell Size | 20 | |
| Orientation | Red (N) | Will only mate with red connectors |

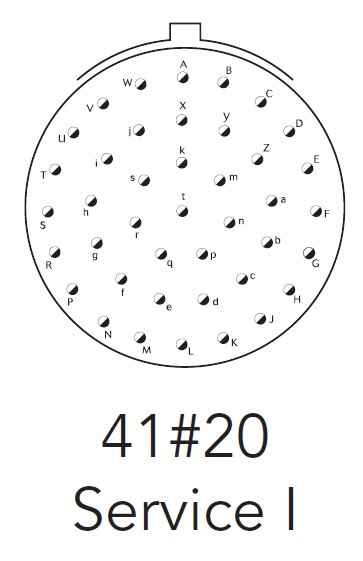

| Number of Contacts | 41 | |
| Contact Size | 20 | Supports 24 to 20AWG wire |
| Contact Type | Pin | Male |
| Current Rating | 7.5 Amps | |
| Termination Type | Crimp | |
| Locator | TOOAF8TH1A | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool | |
| ØA max. | B max. |
| 38.20 | 19.30 |
Note: all dimensions are in millimeters (mm)
