Description

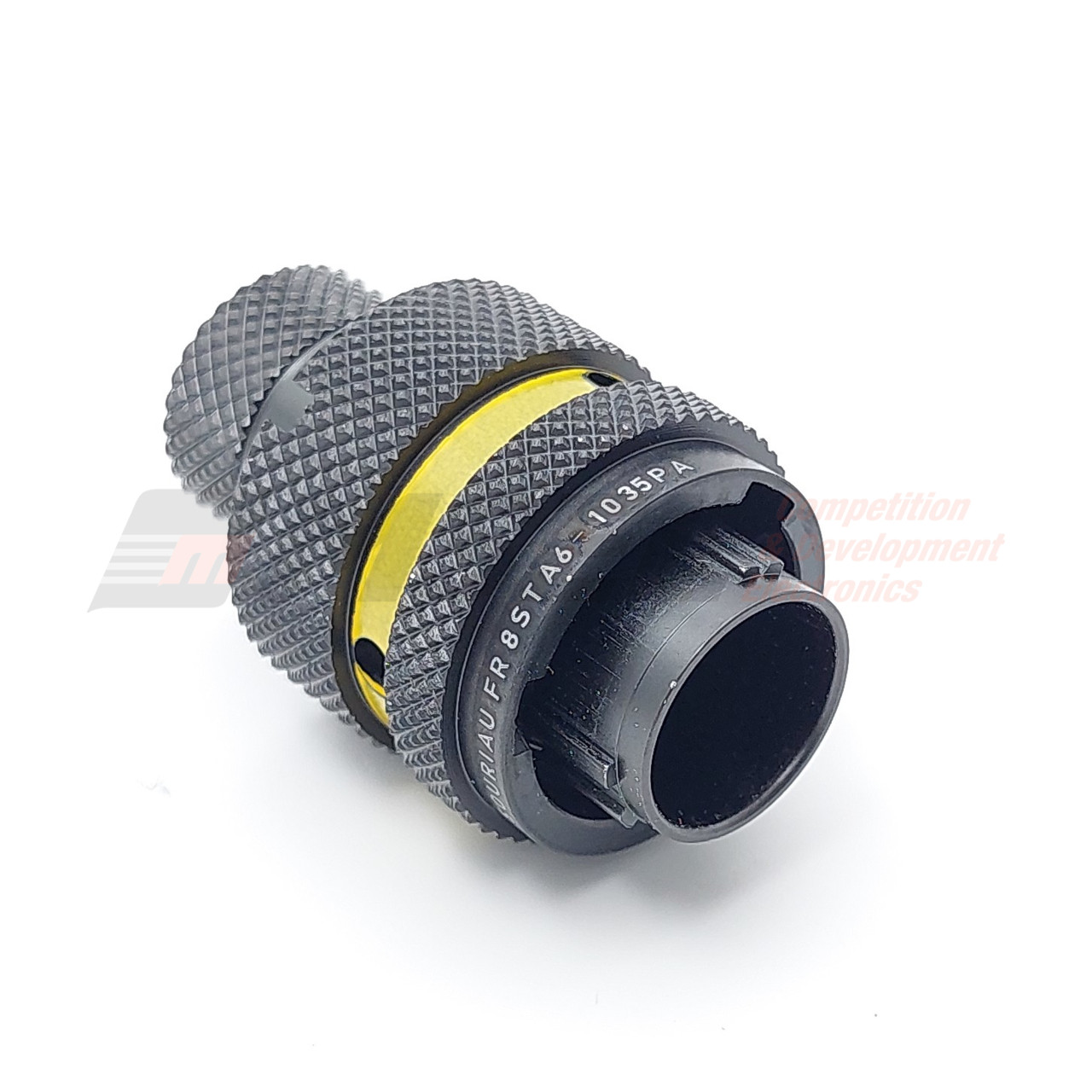

Autosport 13-Way Plug Connector with Size 22 Pins - Yellow
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 61035PA | |
| Connector Type | Plug | |
| Shell Size | 10 | |
| Orientation | Yellow (A) | Will only mate with yellow connectors |

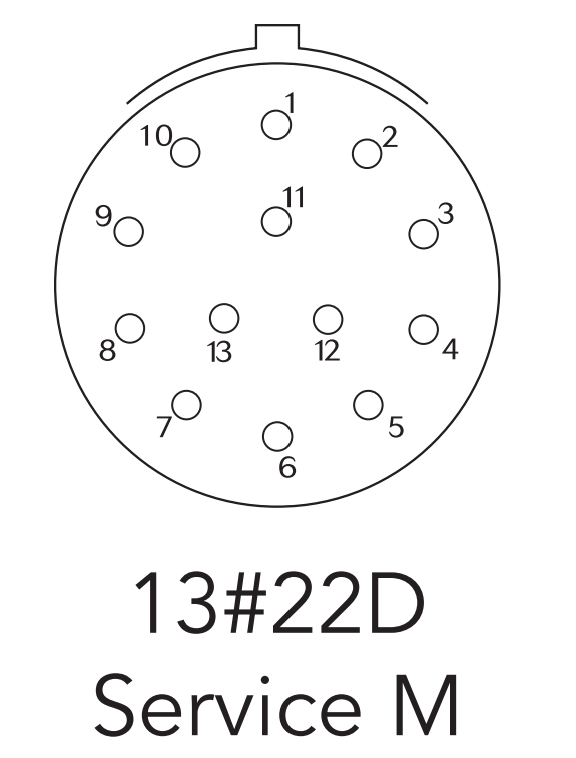

| Number of Contacts | 13 | |
| Contact Size | 22D | Supports 26 to 22AWG wire |
| Contact Type | Pin | Male |
| Current Rating | 5 Amps | |
| Termination Type | Crimp | |
| Locator | TOOLOCK42 | Refer to Related Products below (not incl.) |
| Kit Contains | connector housing, contacts and insert/removal tool |
| ØA max. | B max. |
| 21.50 | 18.55 |
Note: all dimensions are in millimeters (mm)
