Autosport 13-Way Bulkhead Connector with Size 22D Sockets - Red
SKU: CONAS01035SN
Autosport 13-Way Bulkhead Connector with Size 22D Sockets - Red
SKU: CONAS01035SN
Summary:
Shell size 10 Autosport bulkhead receptacle that takes 28 to 22 AWG wire. Its red keyway mates only with red-keyed plugs fitted with size 22D pins. Rated 5 A per contact; contacts and an insert/removal tool are included.
Excl. GST (Incl. GST)
$127.63 ($146.77)
Buy in Bulk and Save!
Description:
Autosport 13-Way Bulkhead Connector size 22 Sockets - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 01035SN | |
| Connector Type | Oval flange receptacle | Bulkhead mounting |
| Shell Size | 10 | |
| Orientation | Red (N) | Will only mate with red connectors |

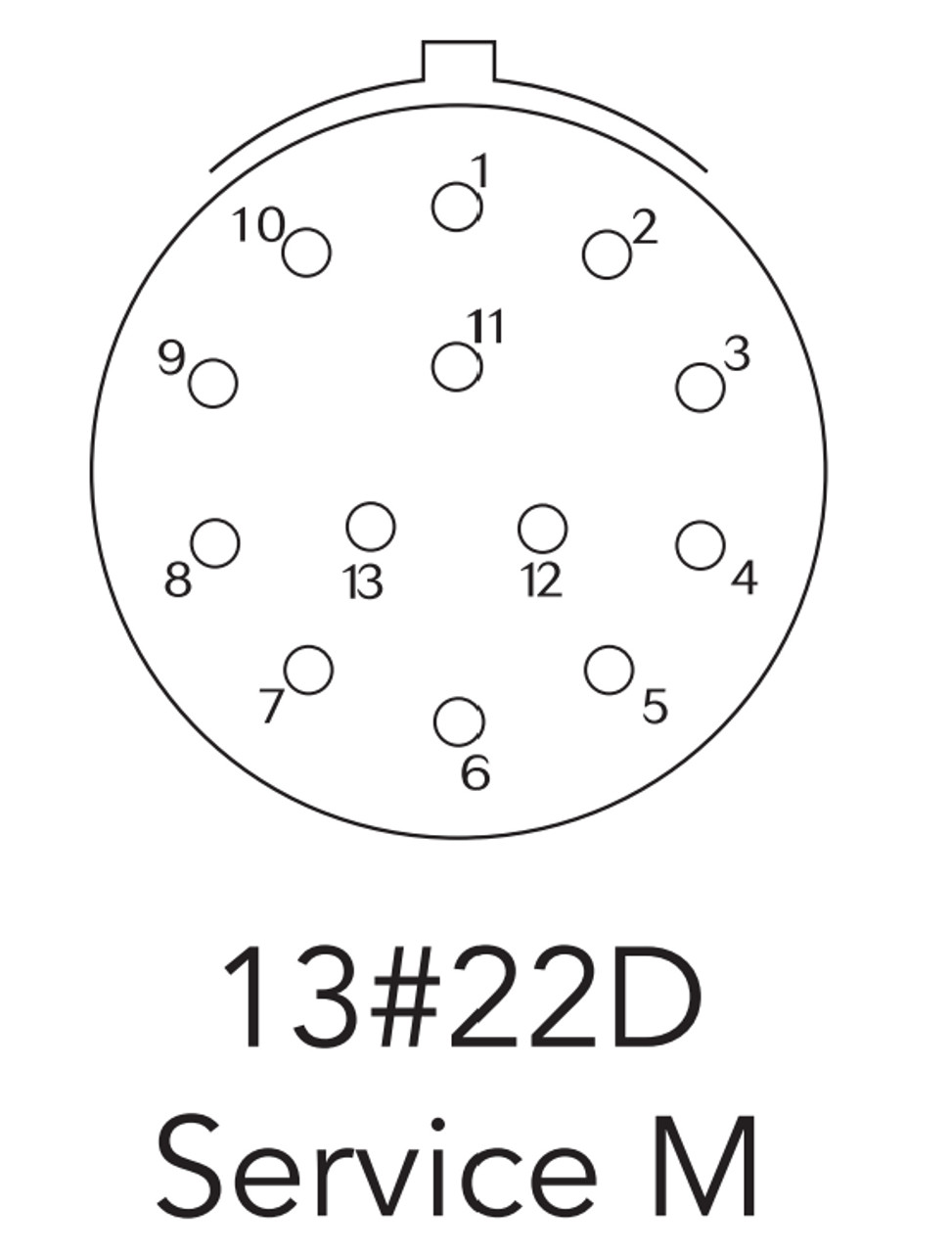

| Number of Contacts | 13 | |
| Contact Size | 22D | Supports 28 to 22AWG wire |
| Contact Type | Socket | Female |
| Current Rating | 5 Amps | |
| Termination Type | Crimp | |
| Locator | M22520/2-06 | Not included |
| Kit Contains |
connector housing, contacts and insert/removal tool
|
| A max. | B | ØC | ØD | E | F | G max. | H max. | P max. | ØJ | K | ØL |
| 19.50 | 25.90 | 3.20 | 15.00 | 17.21 | 16.05 | 33.50 | 32.00 | 3.00 | 17.40 | 25.90 | 3.60 |
Note: all dimensions are in millimeters (mm)
