Autosport 13-Way Plug Connector with Size 22D Pins - Red
SKU: CONAS61035PN
Autosport 13-Way Plug Connector with Size 22D Pins - Red
SKU: CONAS61035PN
Summary:
Shell size 10 Autosport plug that takes 28 to 22 AWG wire. Its red keyway mates only with red-keyed receptacles fitted with size 22D sockets. Rated 5 A per contact; contacts and an insert/removal tool are included.
Excl. GST (Incl. GST)
$128.83 ($148.15)
Buy in Bulk and Save!
Description:
Autosport 13-Way Plug Connector size 22 Pins - Red
Connector kit includes contacts and insert/removal tool. Aluminium housing with zinc plating.
Straight and right angle moulded boots for this connector are listed under Related Products towards the bottom of the page.
| Feature | Specification | Notes |
| Part Number | 61035PN | |
| Connector Type | Plug | |
| Shell Size | 10 | |
| Orientation | Red (N) | Will only mate with red connectors |

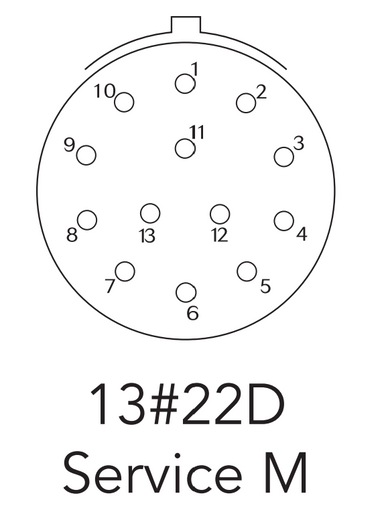

| Number of Contacts | 13 | |
| Contact Size | 22D | Supports 28 to 22AWG wire |
| Contact Type | Pin | Male |
| Current Rating | 5 Amps | |
| Termination Type | Crimp | |
| Locator | M22520/2-09 | Not included |
| Kit Contains |
connector housing, contacts and insert/removal tool
|
| ØA max. | B max. |
| 21.50 | 18.55 |
Note: all dimensions are in millimeters (mm)
