Through Tank Sealed Electrical Connector

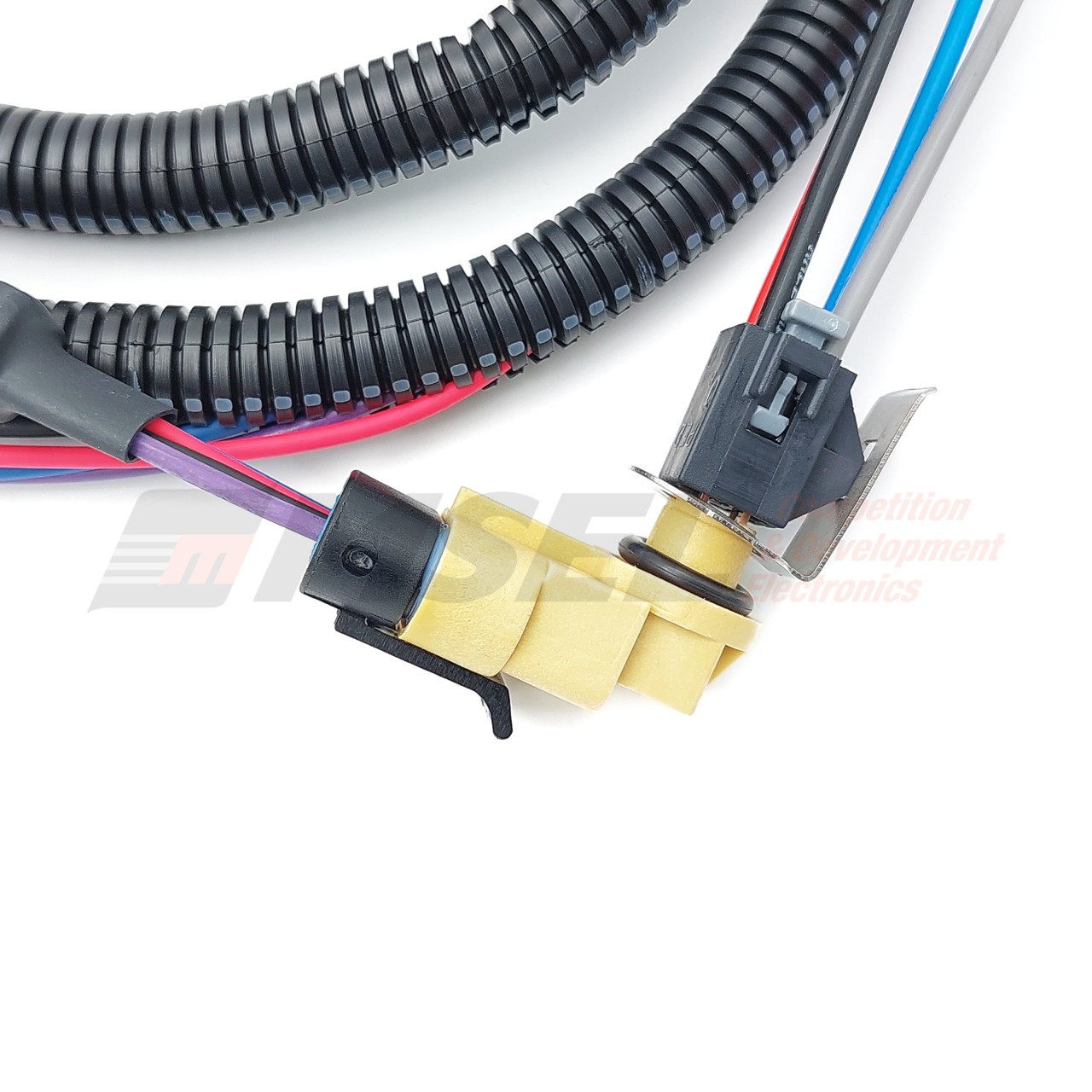

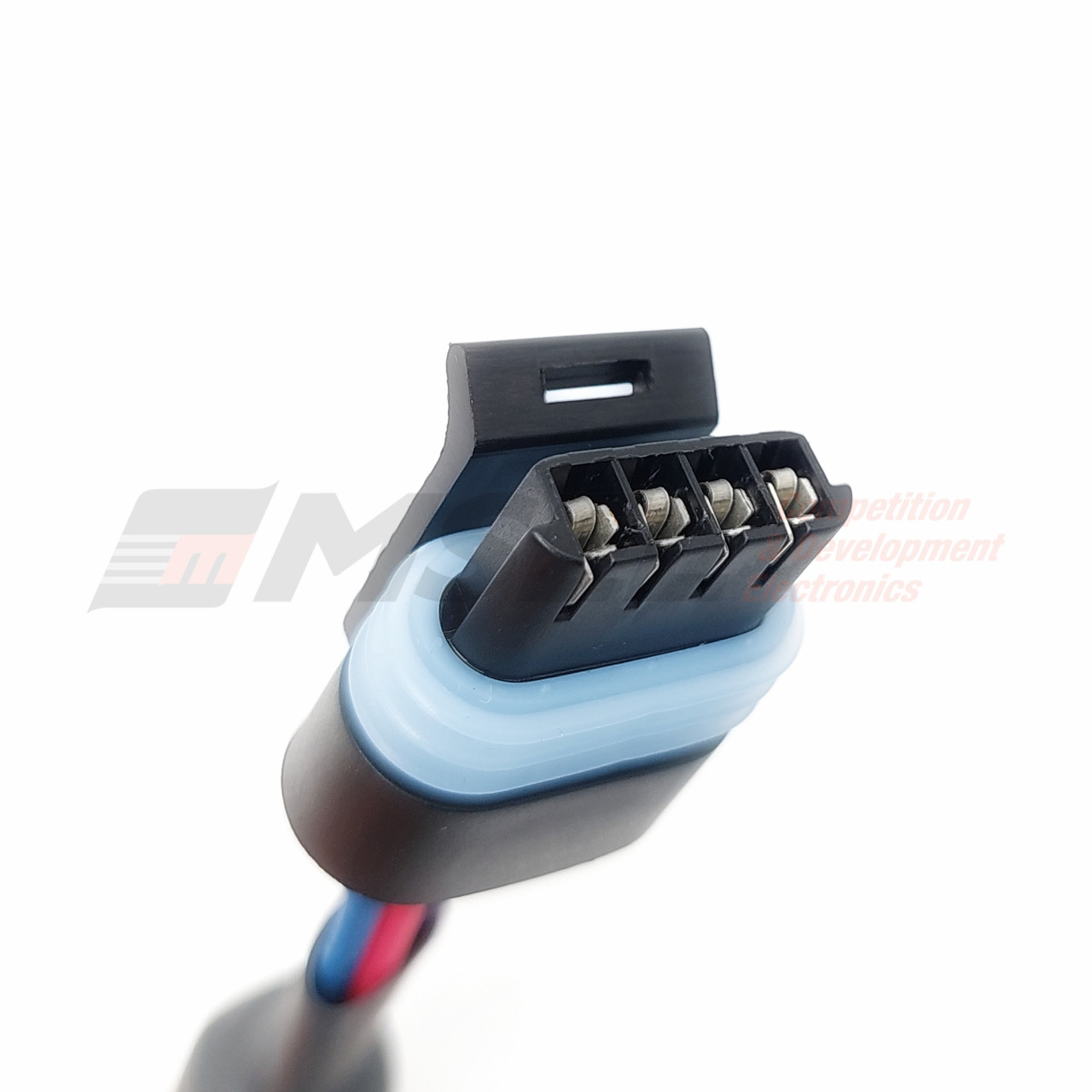

The kit includes pre-assembled looms for both inside (400mm long) and outside the tank (1200mm long). Max tank wall thickness is 4mm.

The loom uses 4 x 14awg wires supporting up to 14amps each continuously. This allows for the following sort of configurations:

• 2 x Bosch 044 / Walbro / Siemens style ntank high pressure pumps controlled separately (2 x 12V+ and 2 x ground)
• 3 x low pressure lift pumps controlled separately (3 x 12V+ and 1 x shared ground)
• 6 x low pressure lift pumps controlled in pairs
• 1 x lift/pressure pump and 1 x fuel level sensor

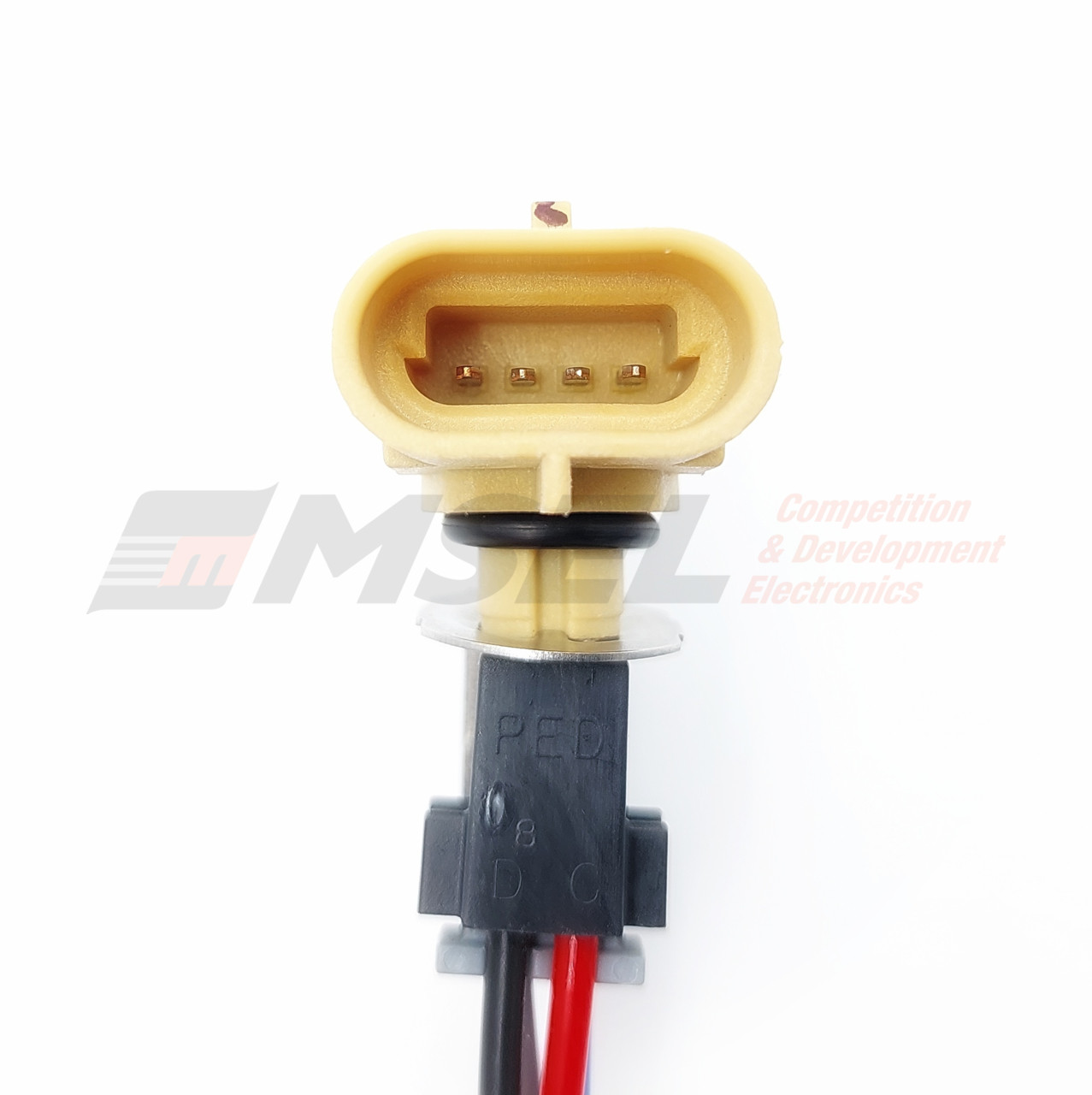

The yellow fuel tank connector is hermetically sealed and is low profile reducing the chance of damage when working above the fuel tank.

Please note that this kit is only avalable as a complete kit. Spare parts are not available.
