Description
Motec Shift Light Module - SLM
Overview
The SLM (Shift Light Module) may be used for shift lights, warning lights or other indicators as programmed by the user.

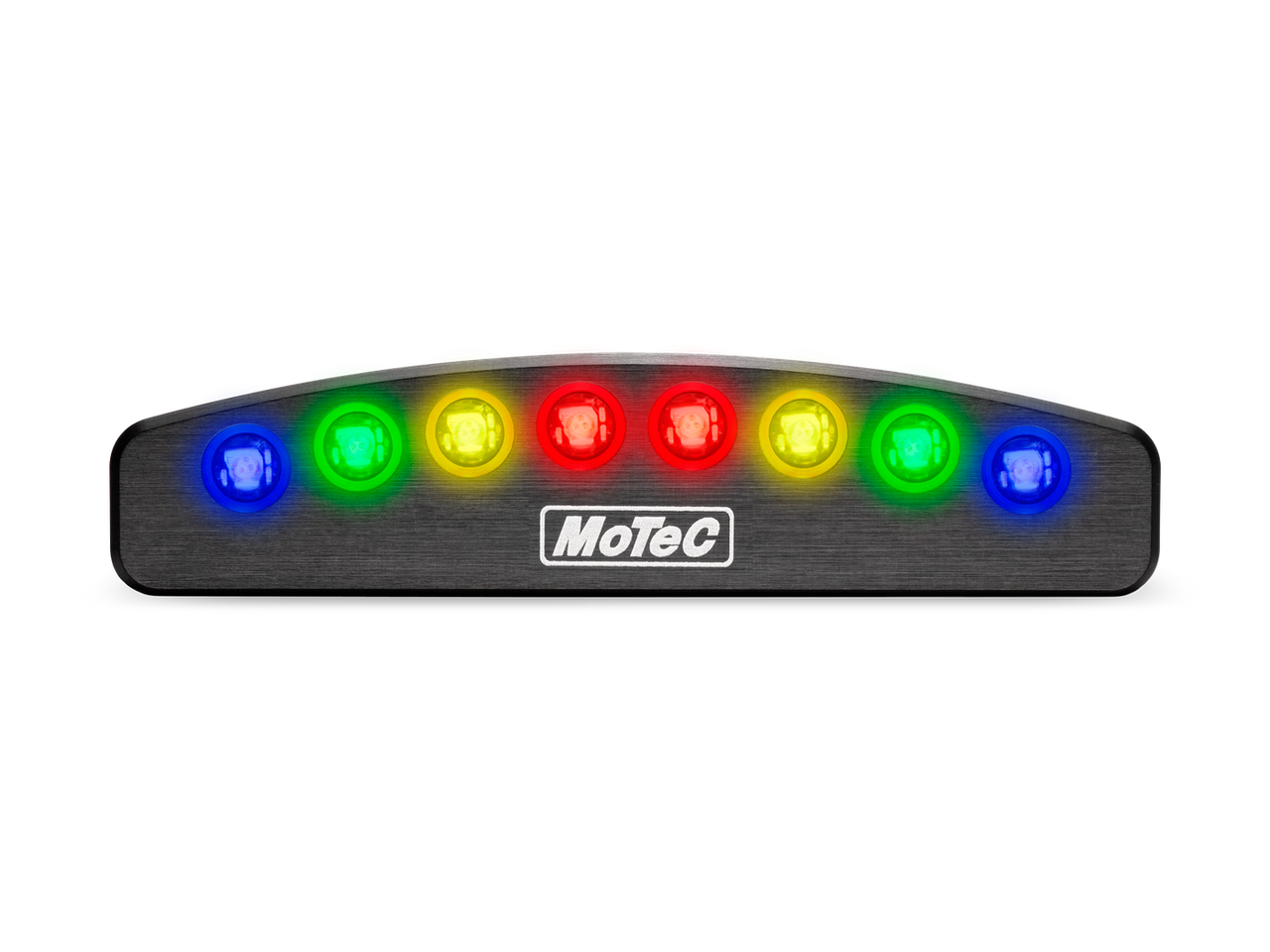

It provides eight multicolour LED indicator lights in a compact array. The colour, intensity and purpose of each LED can be controlled independently, providing enormous flexibility and scope for customisation.
A set of patterns can be defined with various colour combinations and flashing modes, to indicate, for example: stop immediately, continue with caution, pit lane speed limiter active and, of course, up-shift and down-shift. The LEDs can be programmed in a priority order so that, for instance, a warning light can override a shift light.
The SLM is configured and controlled using a MoTeC ECU or Display/Logger. Compatible MoTeC devices have special programming functions for the SLM.
Features
- Connects via CAN
- Fully programmable functionality
- User defined colours and patterns
- Adjustable brightness
- Various mounting options
- Manufactured to withstand harsh environments (IP66)
Specifications
Display
- 8 full colour (RGB) LEDs
Physical
- Case size 81.2 x 19.0 x 16.0 mm

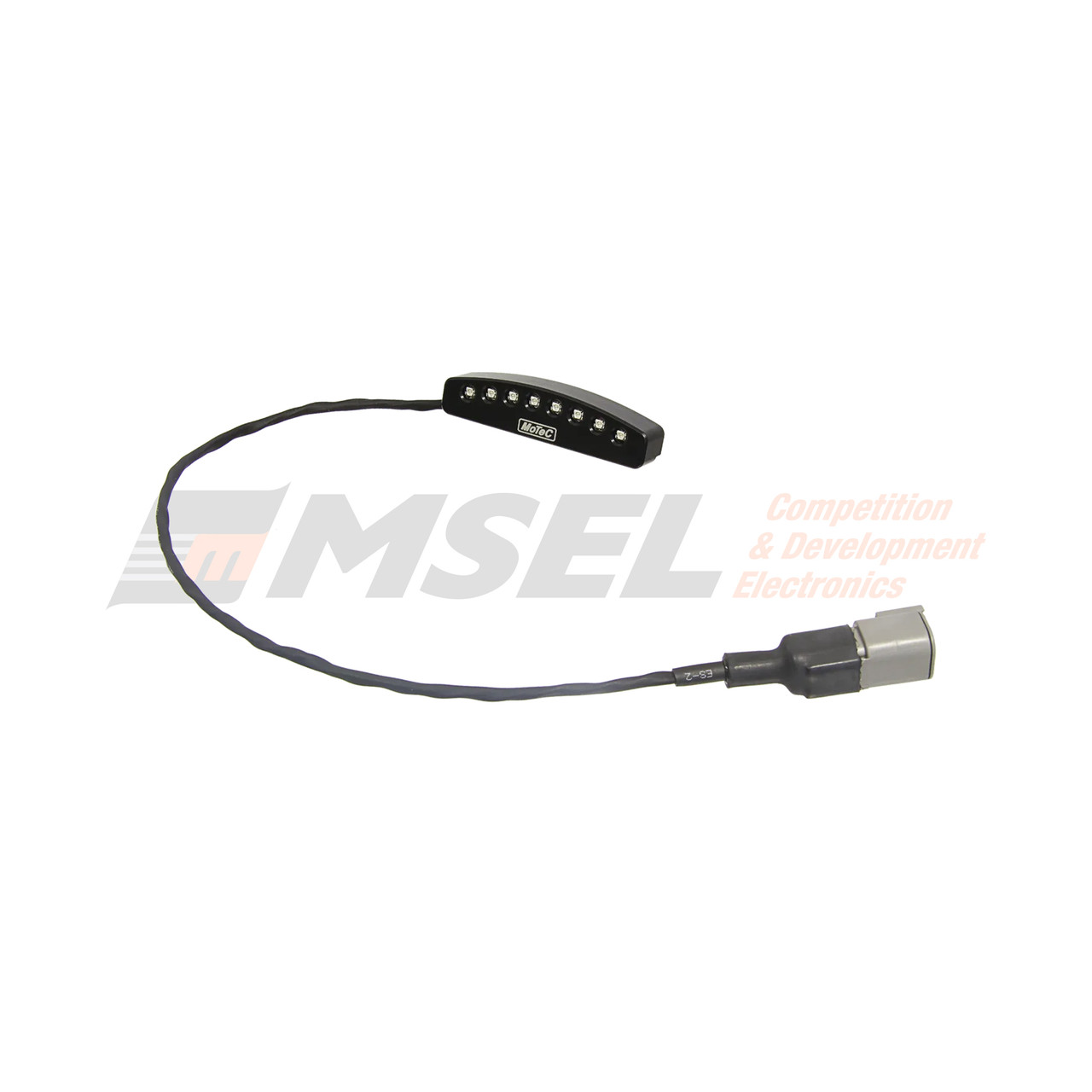

- 1 x 4 pin DTM connector, flying lead.
- Wire lead can be flexed to exit horizontally or vertically flush with the back edge of the case.
- Fastened using standard mounting holes on the base. Optionally, the two screws securing the back cover can be removed and used to mount the device from the rear.
Communications
- 1 x CAN
Compatibility
- MoTeC ECUs: M1 Series, M400, M600, M800, M880, M84
- MoTeC Displays/Loggers: All
Dimensions
All dimensions in mm.
