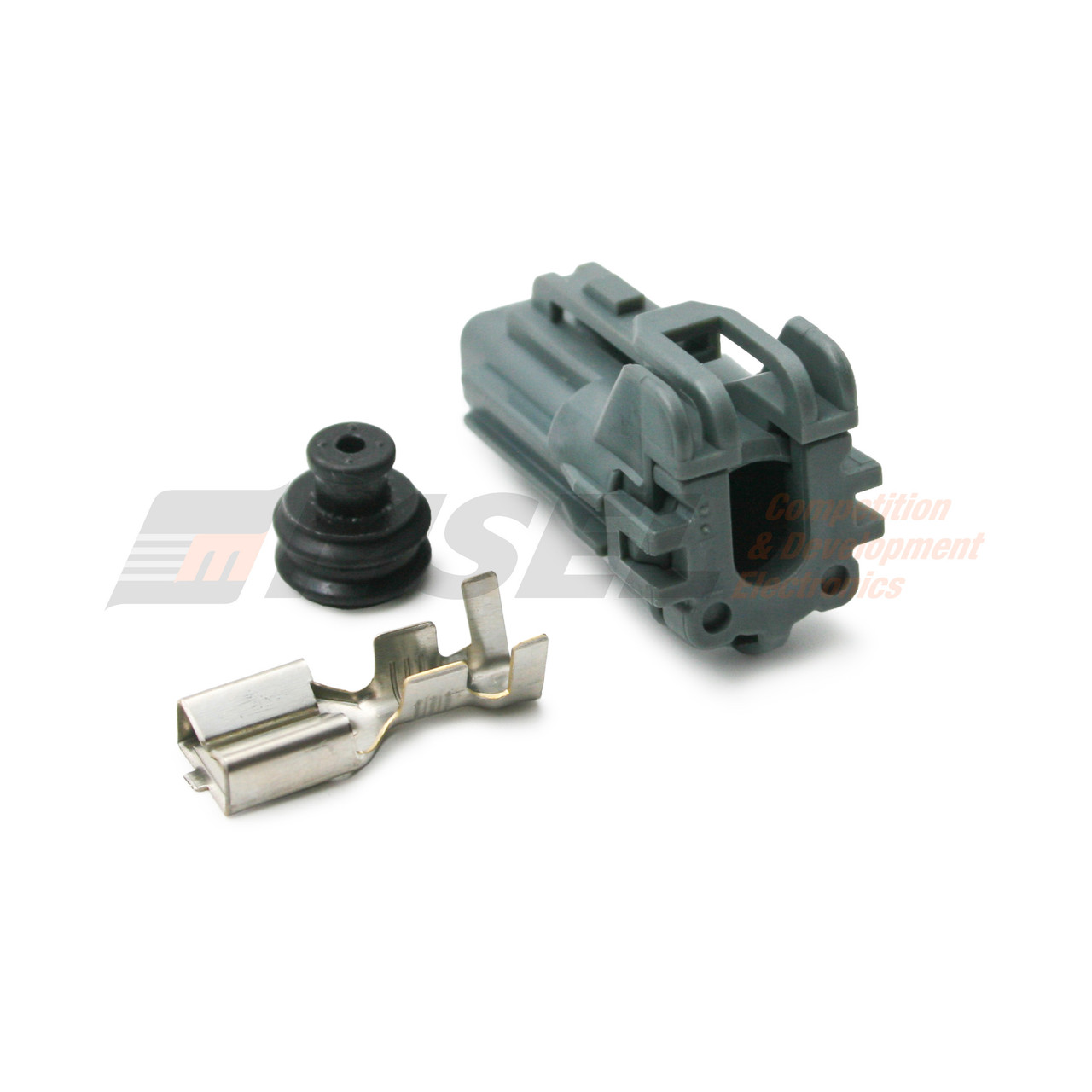

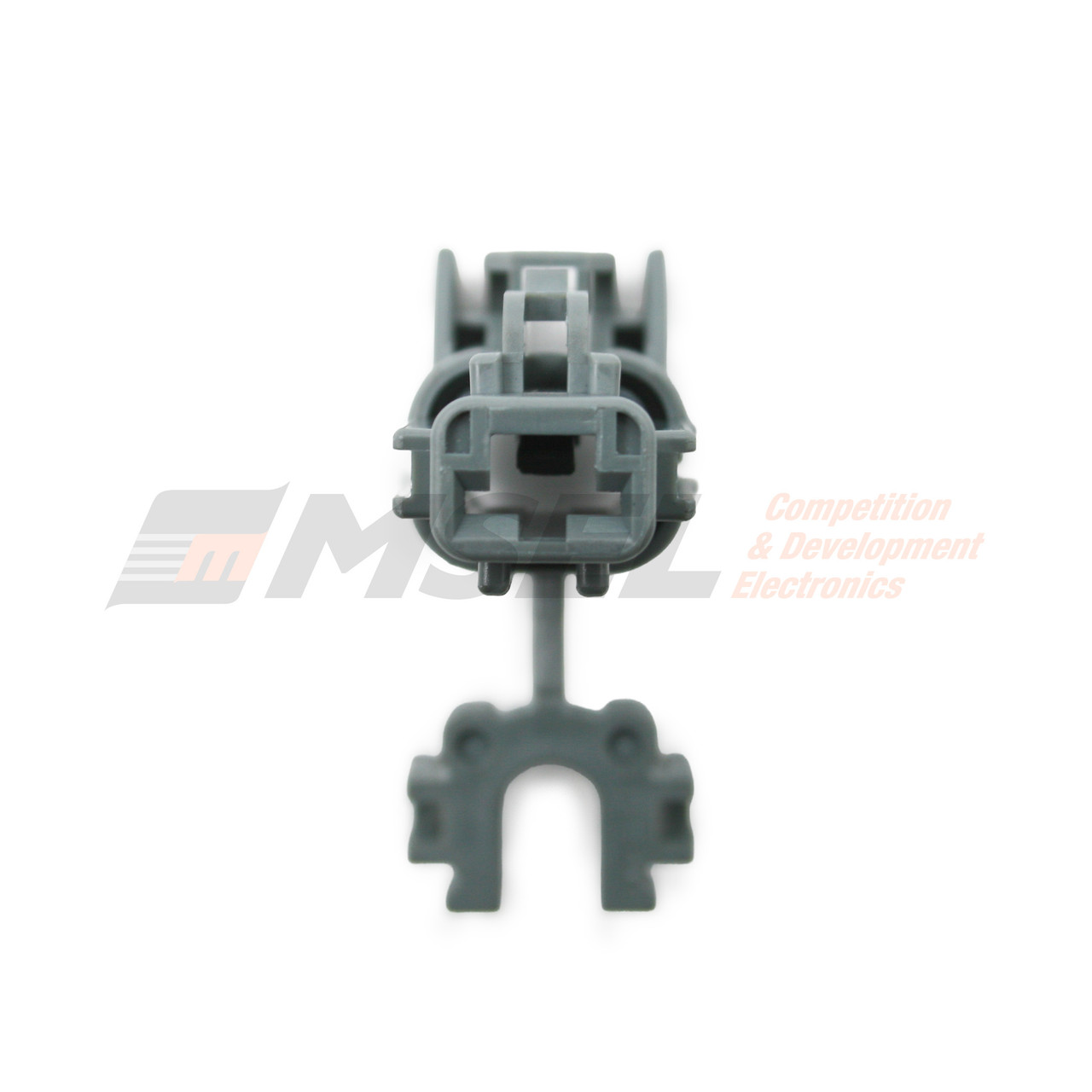

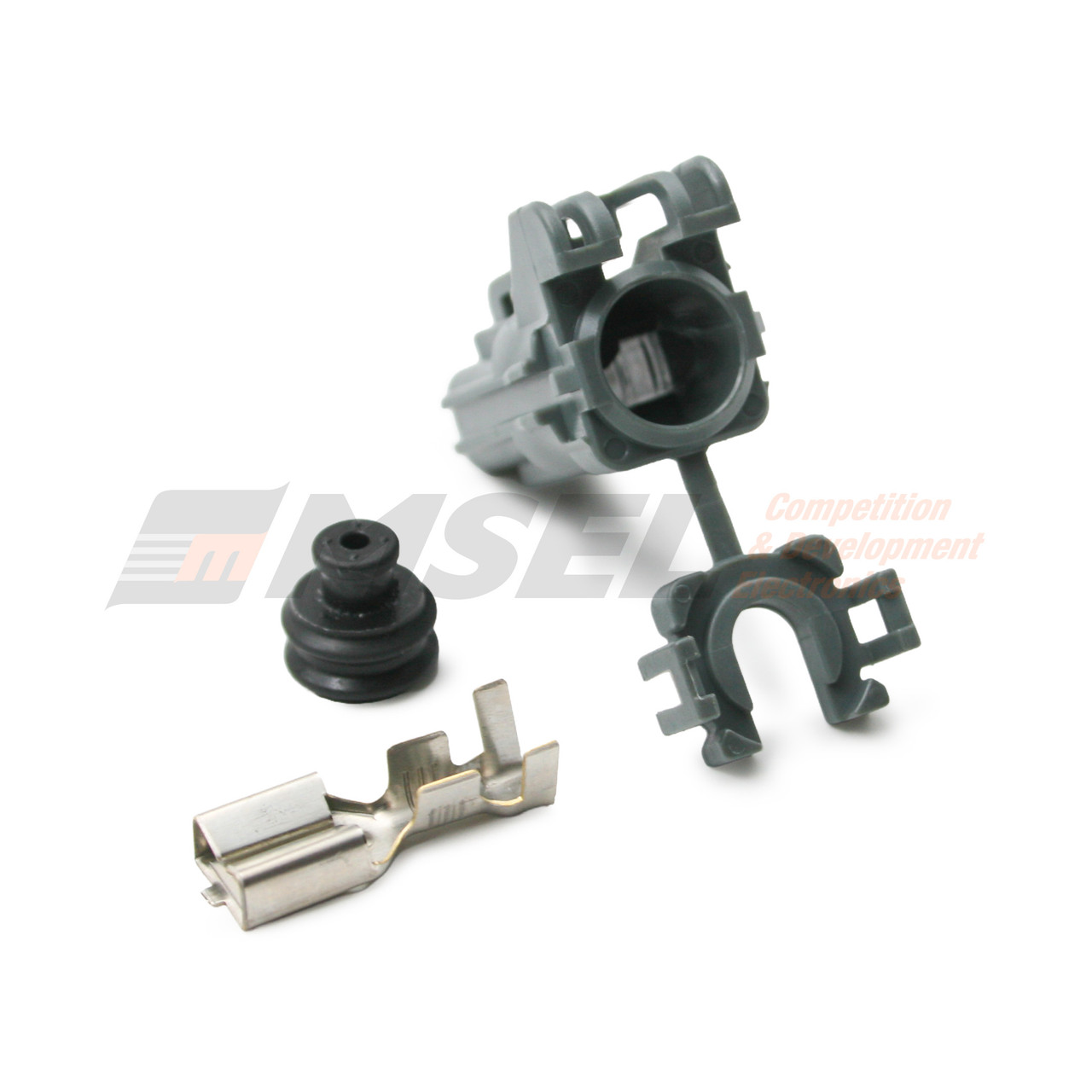

Single Way Starter Connector Kit
Kit includes:
- 1 x Connector Housing
- 1 x Terminal
- 1 x Terminal Seal
Used in some Nissan and Infiniti starter motor applications.
Note that this is an aftermarket (non-OEM) connector housing.
Key Features
| Sealing: |
Single Wire Sealed |
| Number of Ways: |
1 |
| Contact Size: |
6.3mm |
| Wire Size: |
20AWG -12AWG |
| Number of Rows: |
1 |
| Numbered Cavities: |
No |
| Contact Type: |
Socket, flat |
| Termination: |
Open barrel crimp |
| Lance Type: |
Housing Lance |
| Housing Material: |
PBT |
| Seal Material: |
Silicone Rubber |
| Mounting Style: |
Free hanging |
| TPA: |
Yes |
| CPA: |
No |
| Temp Range[2]: |
-40 - 85°C |
[1] Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
[2] Temperature range is for reference only, and may/may not include temperature rise.
