Description
Available Ex-Stock For Immediate Shipping.

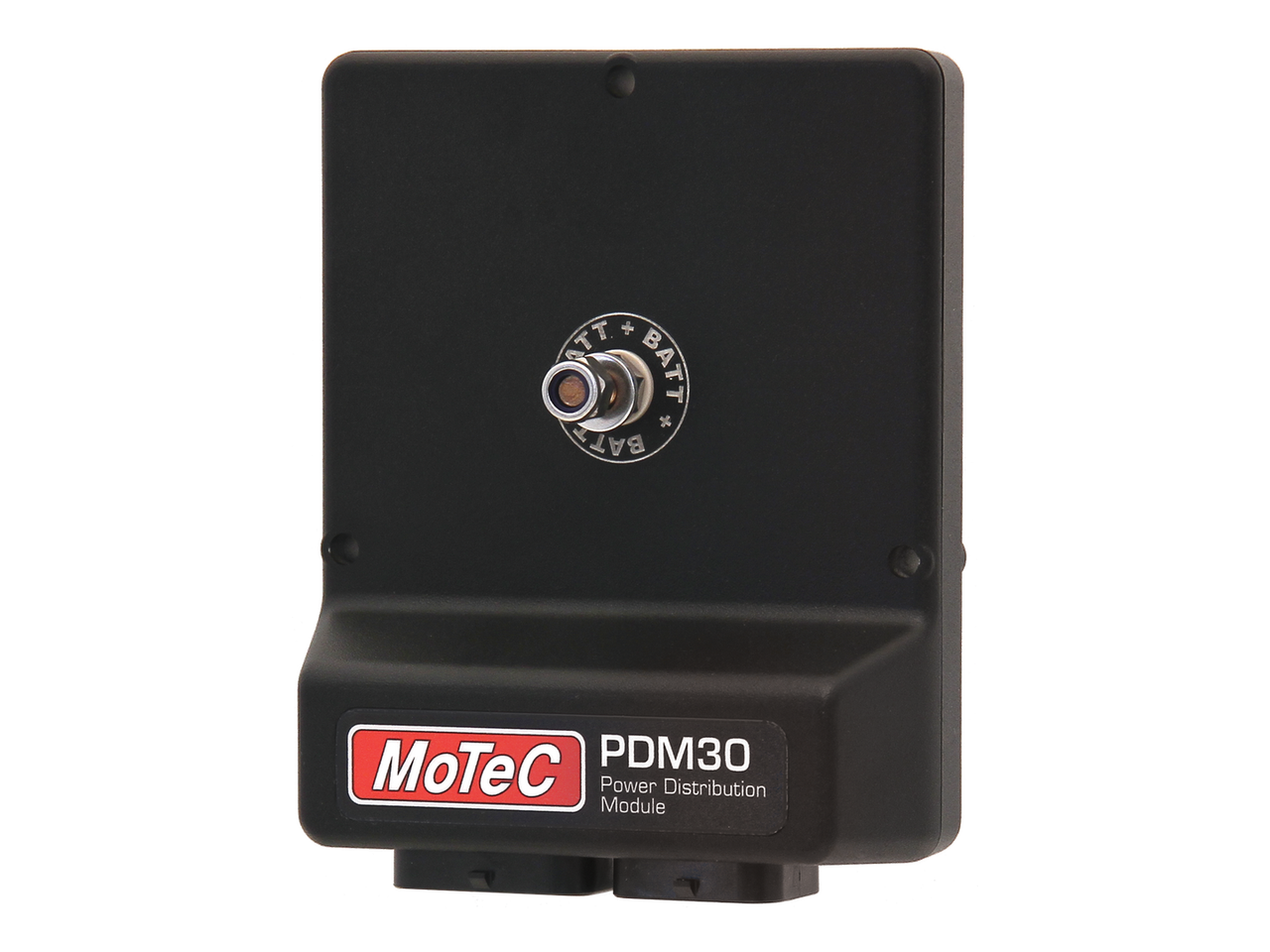

MoTeC's 30 output Power Distribution Module (PDM30) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.
The module replaces conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight, while increasing reliability.
Specifications
Outputs
- 8 x 20 A outputs20 A continuous, 115 A transient (typical)
- 22 x 8 A outputs8 A continuous, 60 A transient (typical)
Inputs
- 16 x Switch inputs
Communications
- 1 x CAN
Diagnostic Information
- Output current and voltages
- Input voltages
- Error status
Physical
- Connectors
- 1 x 34 pin waterproof connector
- 1 x 26 pin waterproof connector
- 1 x M6 stud
- Case size 108 x 128 x 39 mm
- Weight 270 gram
Accessories (sold separately)
- AMP Superseal 1.0 26 & 34-Way '1 Key' Connector Kit click here.
- 15 Button CAN Keypad click here.
- 8 Button CAN Keypad click here.
- 5 Button Rotary Dial CAN Keypad click here.
- MoTeC USB To CAN (UTC) Plus Cable click here.
- XLR Connector 5 Pin Panel Socket click here.
- XLR Connector 5 Pin Inline Socket click here.
