Description

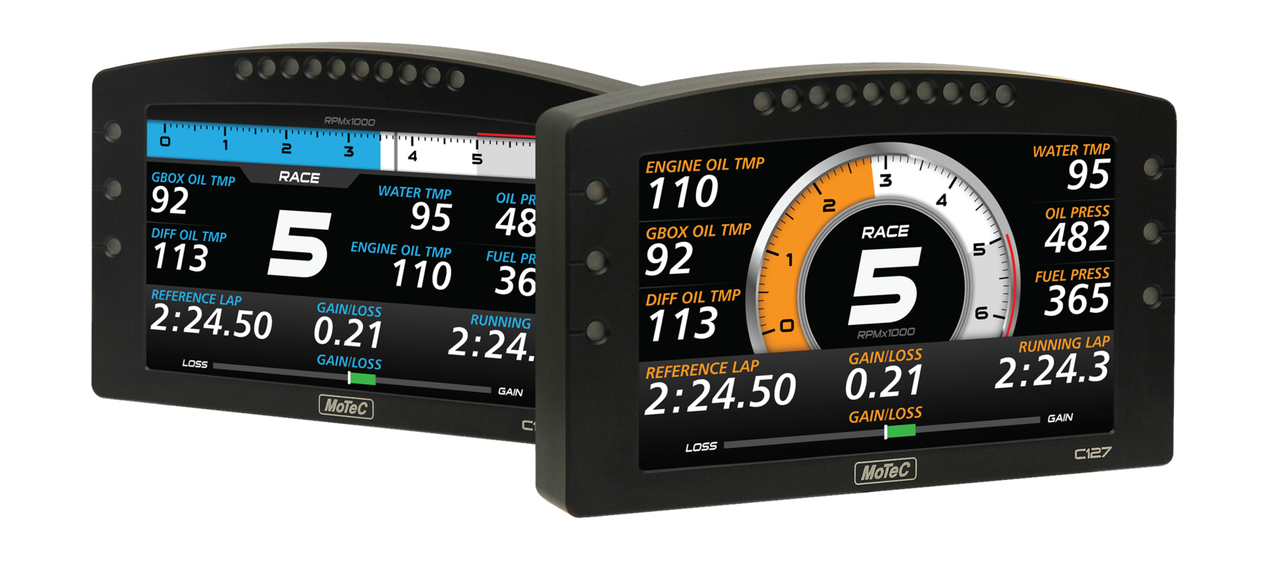

The C127 is striking in design and powerful in functionality, with display, data logging, auxiliary control and programmable LEDs all in one compact device. The vivid 176mm screen (approx 7") is high resolution, ultra bright and anti-reflective for easy reading in direct sunlight. Choose from numerous selectable layouts and configure the channels and labels to suit, or opt for the Display Creator upgrade and treat your screen as a blank canvas with unique graphics, images, logos and custom icons.
The C127 features 16 full colour LEDs integrated into the unit for use as shift lights, warning lights or other driver alerts. The colour, function and intensity of each LED is programmable, allowing users to develop their own unique strategies and sequences.
This part number superscedes Motec part number 18048
C127 Specifications
Display
- Screen: Colour TFT LCD, anti-reflective
- Resolution: 800 x 480, anti-aliased graphics
- Selectable fixed layouts with channel and label configurability
- 48 user-defined, scrollable message lines with programmable overrides
- 3 programmable 'pages', for example Practice, Warm-Up, Race
- For full customisation of the display layout and graphics, add the Display Creator option.
Communications

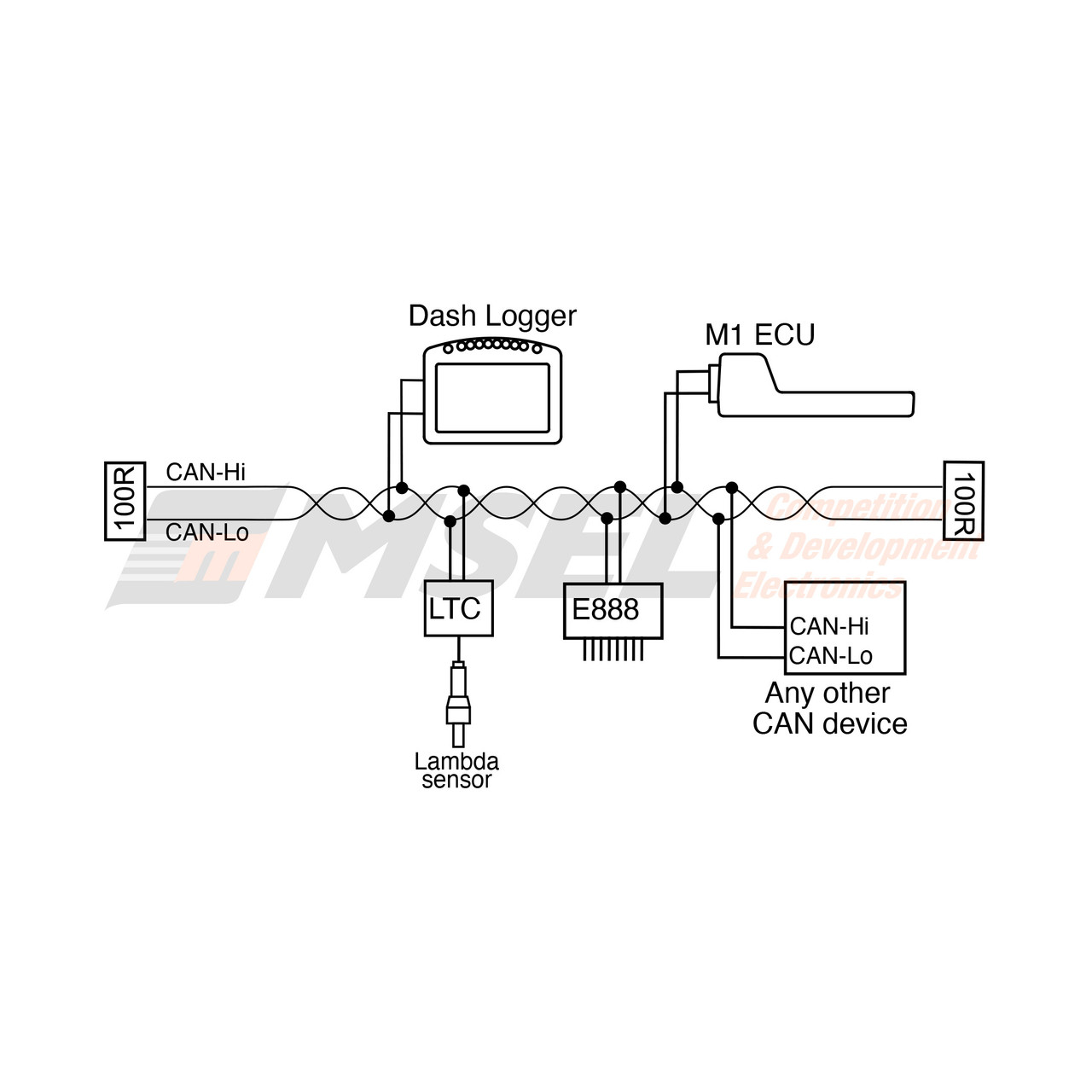

- 2 x Configurable CAN buses with individually programmable CAN bus speeds
- One can be used as RS232 Receive
- RS232: 2 x RS232 ports
- One with Transmit and Receive
- One with Receive only
Physical

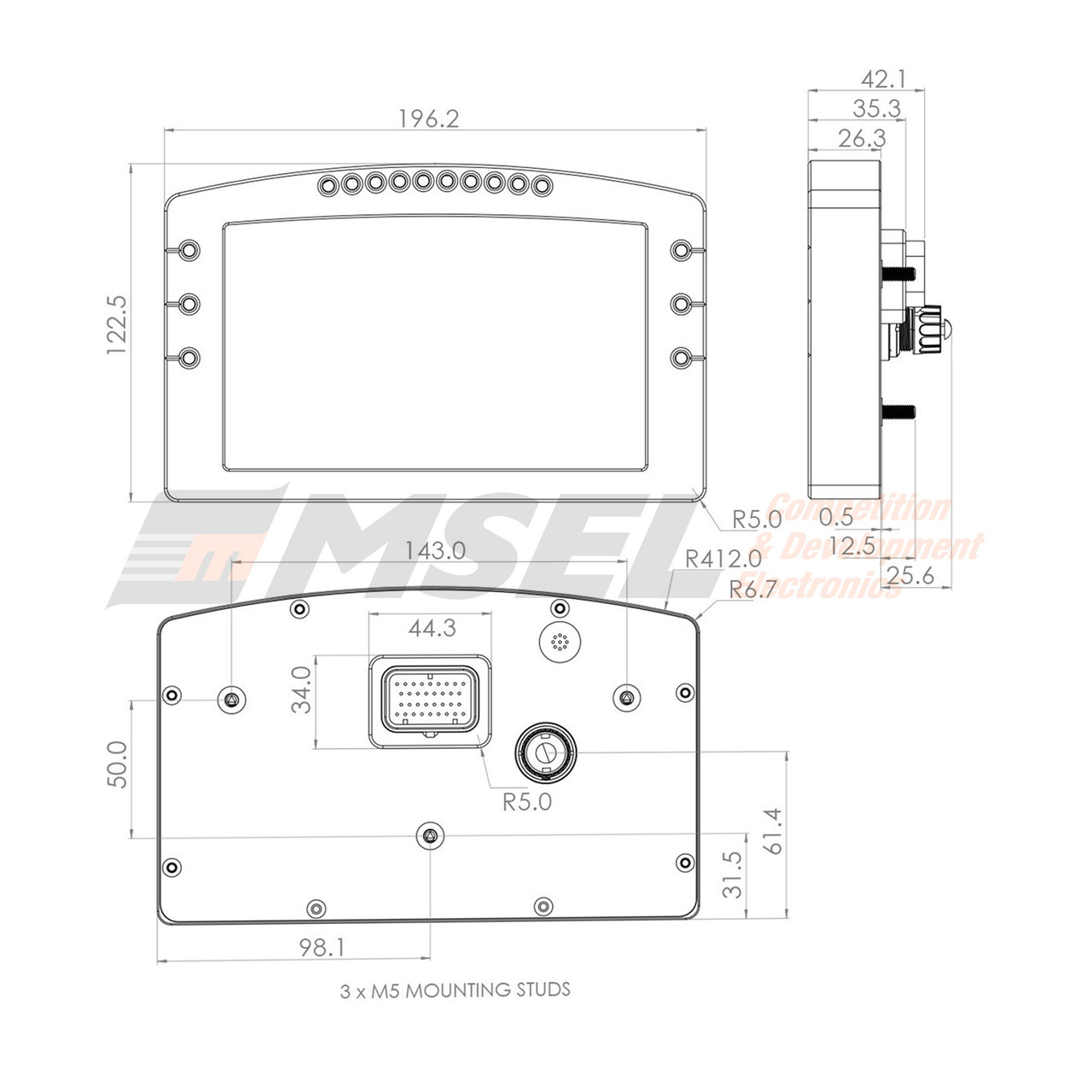

- Dimensions 196.2 x 122.5 x 24.9 mm excluding connector
- Weight 615 g

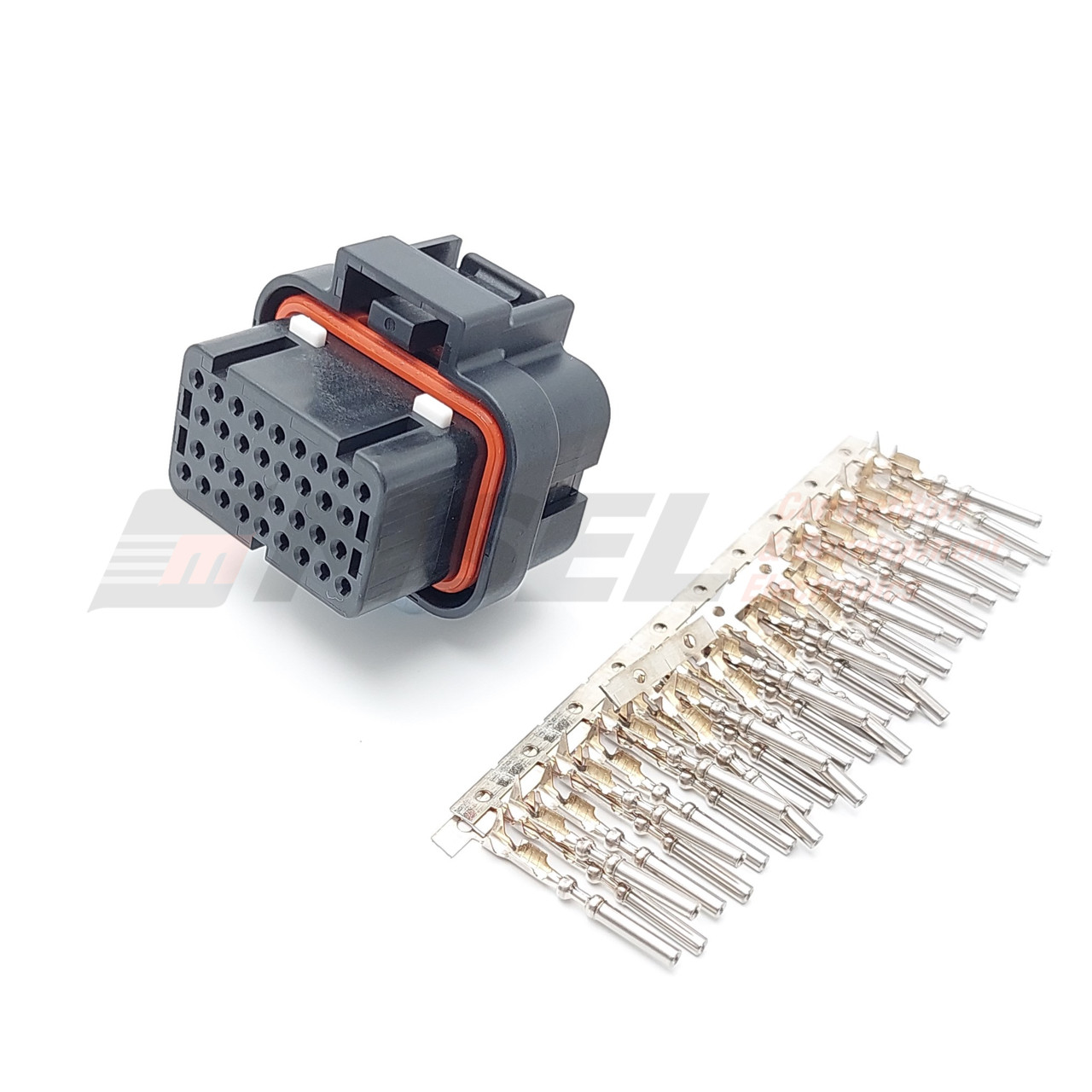

- 1 x 34 pin waterproof connector
- 1 x mini USB port
Logging (optional - requires Logging Upgrade)
- Level 1: 120 MB logging memory
- Level 2: USB Logging to a removable storage device (flash drive)
- 32 GB USB storage devices available
- Logging rates up to 500 samples per second
- Fast Ethernet download
- Includes i2 Standard data analysis software (i2 Pro available as an upgrade)
Inputs (included)
- 2 x Digital inputs
- 3 x Speed inputs
- 1 x Composite Video Input for the connection of a PAL or NTSC camera
Inputs (optional - requires I/O Upgrade)
- 6 x Analogue voltage inputs
- 2 x Analogue temperature inputs
Outputs (optional - requires I/O Upgrade)
- 4 x low side outputs
- PWM or switched operation
Internal Sensors
- 3-axis G sensor
- Dash temperature sensor
- Sensor supply voltage
- Battery voltage
Expanders
- Compatible with MoTeC E888 and E816 Expanders, providing full functionality.
