Description

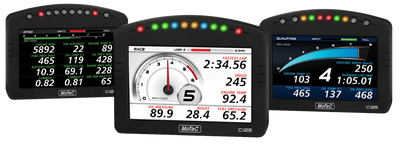

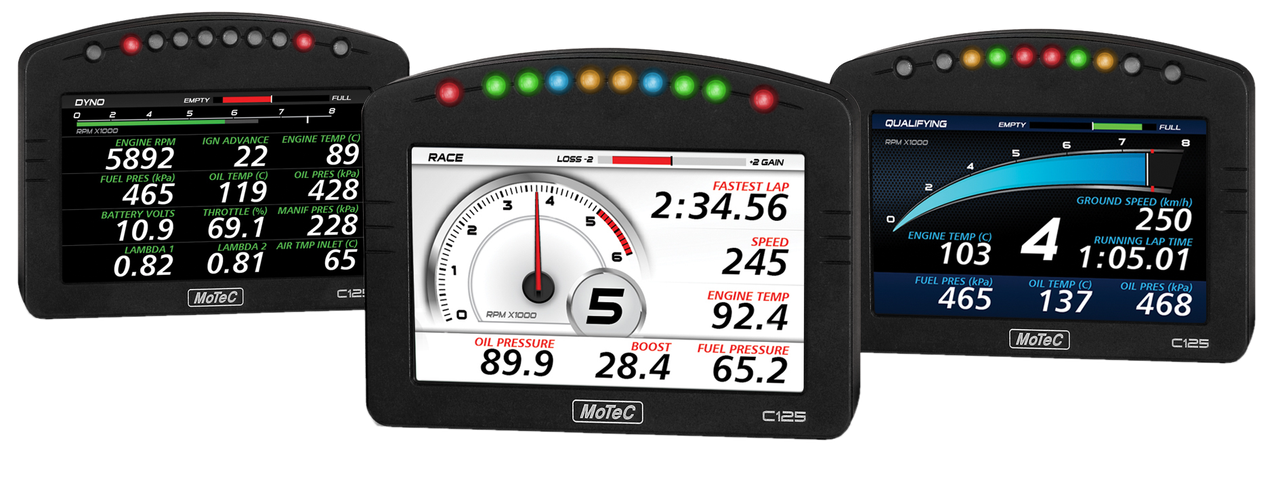

The C125 is striking in design and powerful in functionality, with display, data logging, auxiliary control and programmable LEDs all in one compact device. The vivid 125mm screen (approx 5") is high resolution, ultra bright and anti-reflective for easy reading in direct sunlight. Choose from numerous selectable layouts and configure the channels and labels to suit, or opt for the Display Creator upgrade and treat your screen as a blank canvas with unique graphics, images, logos and custom icons.
Specifications:
Display
- Screen: Colour TFT LCD, anti-reflective
- Resolution: 800 x 480, anti-aliased graphics
- Selectable fixed layouts with channel and label configurability
- 48 user-defined, scrollable message lines with programmable overrides
- 3 programmable 'pages', for example Practice, Warm-Up, Race
Communications

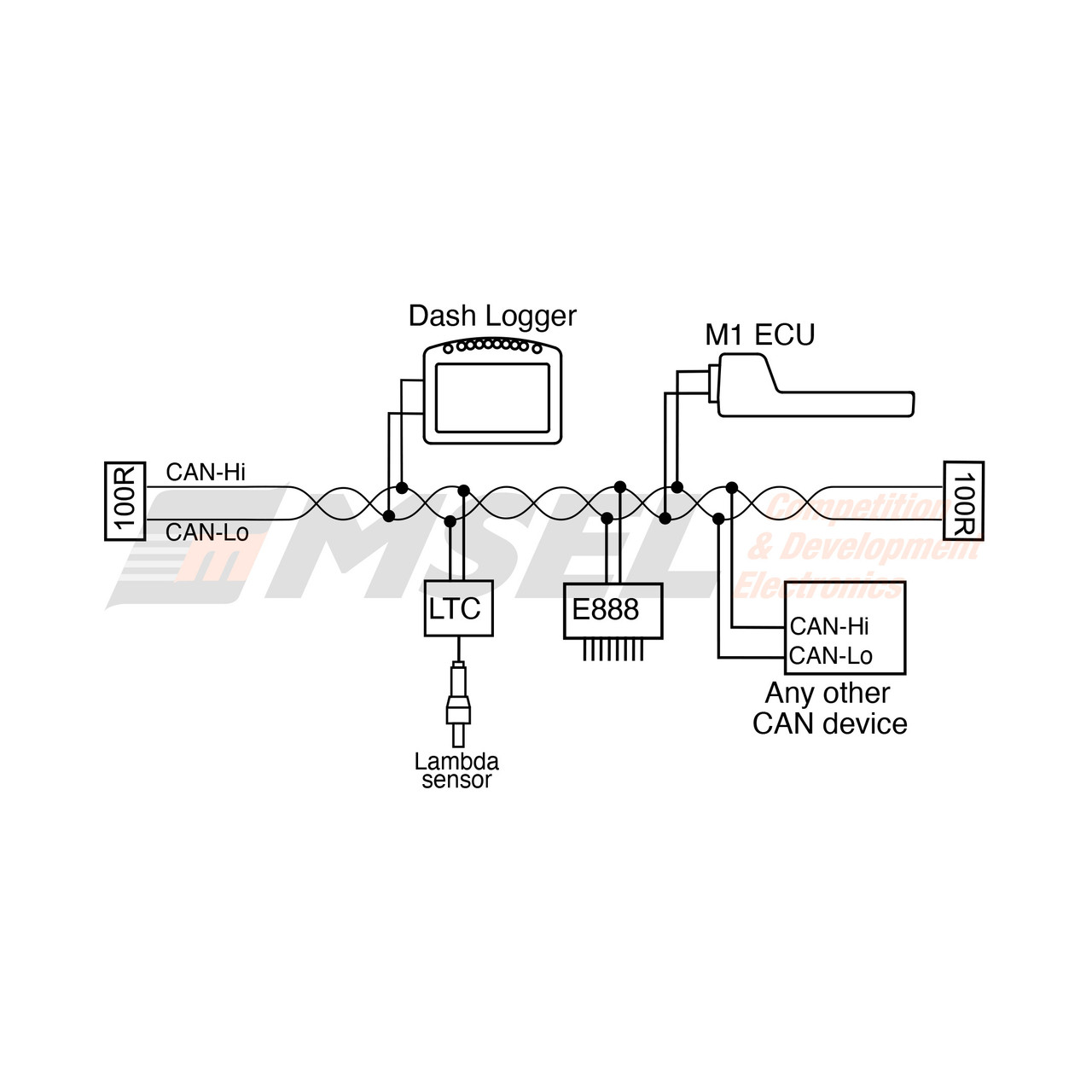

- 2 x Configurable CAN buses with individually programmable CAN bus speeds
- One can be used as RS232 Receive
- RS232: 2 x RS232 ports
- One with Transmit and Receive
- One with Receive only
Physical

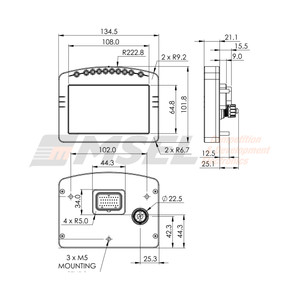

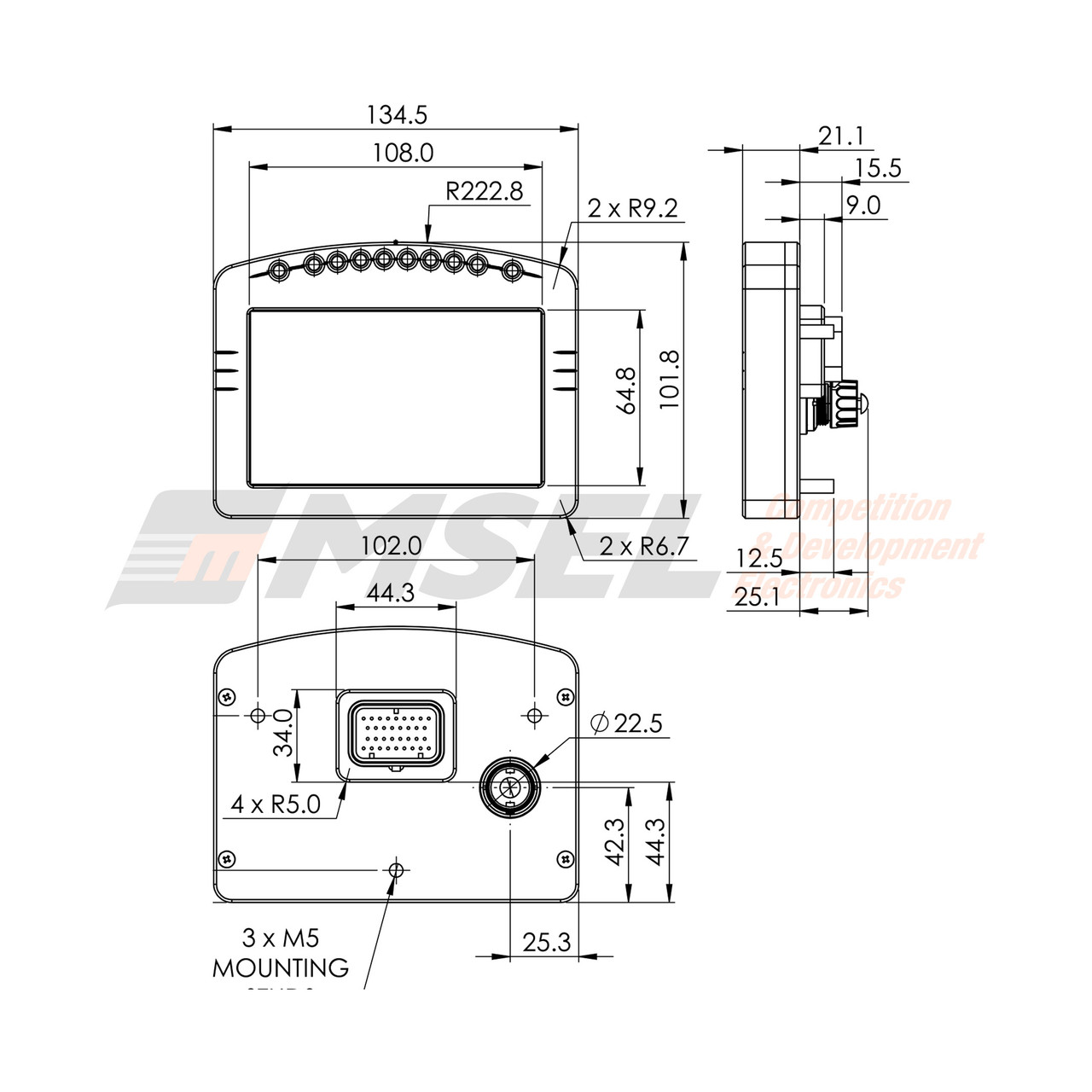

- Dimensions 134.5 x 101.8 x 19.4 mm excluding connector
- Weight 342 g
- 1 x 34 pin waterproof connector
- 1 x Mini USB port
- Housing: IP67 rated
- Diffused LEDs
Logging (optional - requires Logging Upgrade/s)
- Level 1: 120 MB logging memory
- Level 2: USB Logging to a removable storage device (flash drive)
- 32 GB USB storage devices available
- requires compatible hardware*
- Logging rates up to 500 samples per second
- Fast Ethernet download
- Includes i2 Standard data analysis software (i2 Pro available as an upgrade)
Inputs
- 2 x Digital inputs
- 3 x Speed inputs
- 1 x Composite Video Input for the connection of a PAL or NTSC camera*
Inputs (optional - requires I/O Upgrade)
- 6 x Analogue voltage inputs
- 2 x Analogue temperature inputs
Outputs (optional - requires I/O Upgrade)
- 4 x Low side outputs
- PWM or switched operation
Internal Sensors
- 3-axis G sensor
- Dash temperature sensor
- Sensor supply voltage
- Battery voltage
